Finish line

Parts catalogue

Parts diagram

HEADLAMP HOUSING

FRONT FENDER FOR SUZUKI DR 200 1987

REAR FENDER (E1,E2) REFER TO FIG.49 (G-5) FOR E6,E21,E24

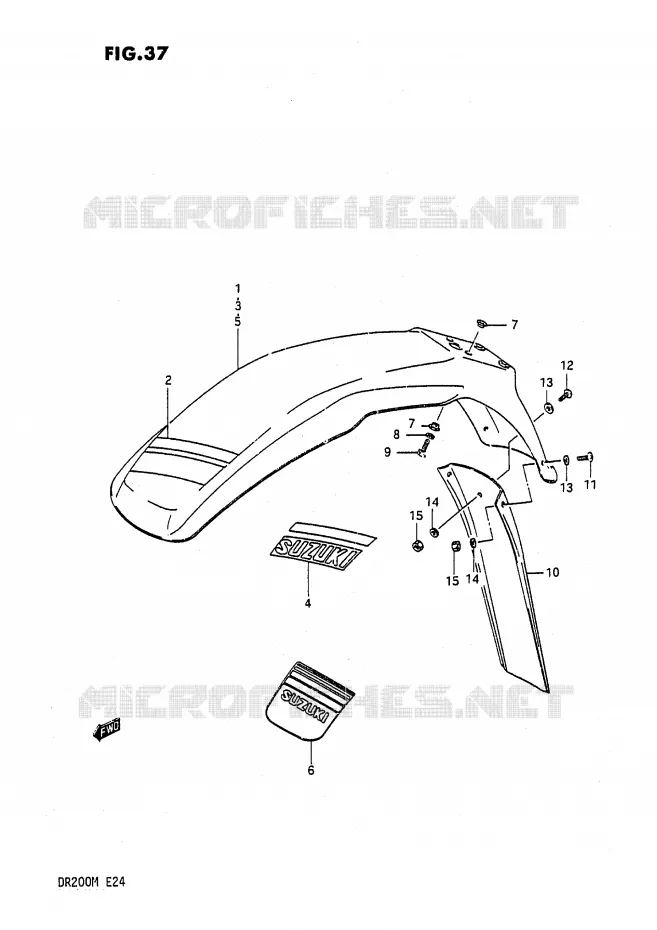

FRONT FENDER Suzuki MOTO 200 DR 1987 DR200H(E24)
1
FENDER, FRONT (WHITE)

53110-44A00-10V   5311044A0010V

5311044A0010V
Not available
1
53111-44A00-13L
DISCONTINUED

53110-44A00-163  

5311044A00163
Not available
1
FENDER, FRONT (WHITE)

53110-44A10-10V   5311044A1010V

5311044A1010V
Not available
1
FENDER, FRONT (YELLOW)

53110-44A10-163   5311044A10163

5311044A10163
Not available
2
TAPE SET

68150-44A00-7CL   6815044A007CL

6815044A007CL
Not available
3
FENDER, FRONT (WHITE)

53110-44A40-14L   5311044A4014L

5311044A4014L
Not available
3
FENDER, FRONT (YELLOW)

53110-44A40-25Y   5311044A4025Y

5311044A4025Y
Not available
3
DISCONTINUE

53110-44A50-14L  

5311044A5014L
Not available
3
DISCONTINUED

53110-44A50-25Y   5311044A5025Y

5311044A5025Y
Not available
4
TAPE SET

68150-42A00-7MS   6815042A007MS

6815042A007MS
Not available
4
TAPE SET

68150-42A00-9BZ   6815042A009BZ

6815042A009BZ
Not available
5
FENDER, FRONT (WHITE)

53110-44A60-14L   5311044A6014L

5311044A6014L
Not available
5
FENDER, FRONT (YELLOW)

53110-44A60-25Y   5311044A6025Y

5311044A6025Y
Not available
5
FENDER, FRONT (WHITE)

53110-44A70-14L   5311044A7014L

5311044A7014L
Not available
5
FENDER, FRONT (YELLOW)

53110-44A70-25Y   5311044A7025Y

5311044A7025Y
Not available
6
DISCONTINUE
TAPE, FRONT FENDER

68155-44A00-9LJ   6815544A009LJ

6815544A009LJ
Not available
6
TAPE, FRONT FENDER

68155-44A00-9SG   6815544A009SG

6815544A009SG
Not available
7
WASHER

09169-06053-000   0916906053000

0916906053000

Unit Price

8
WASHER, LOCK

08321-21067-000  

08321-01067-000
 0832121067000

Unit Price

9
BOLT

01107-06167-000  

01500-06167-000
 0110706167000

Unit Price

10
MUD FLAP

53311-14A00-000   5331114A00000

5331114A00000
Not available
11
SCREW

02142-06164-000  

02142-0616A-000
 0214206164000

Unit Price

12
SCREW

02142-06205-000  

02142-0620B-000
 0214206205000

Unit Price

13
WASHER, 6.5X16X1.0

09160-06003-000  

09160-06129-000
 0916006003000

Unit Price

14
WASHER, LOCK

08321-21067-000  

08321-01067-000
 0832121067000

Unit Price

15
NUT

08310-22067-000  

08310-00067-000
 0831022067000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FENDER of your Suzuki of DR. Let us know if you have any questions.
