CRANKCASE COVER

CRANKSHAFT FOR SUZUKI DR 200 1987

CAM SHAFT - VALVE

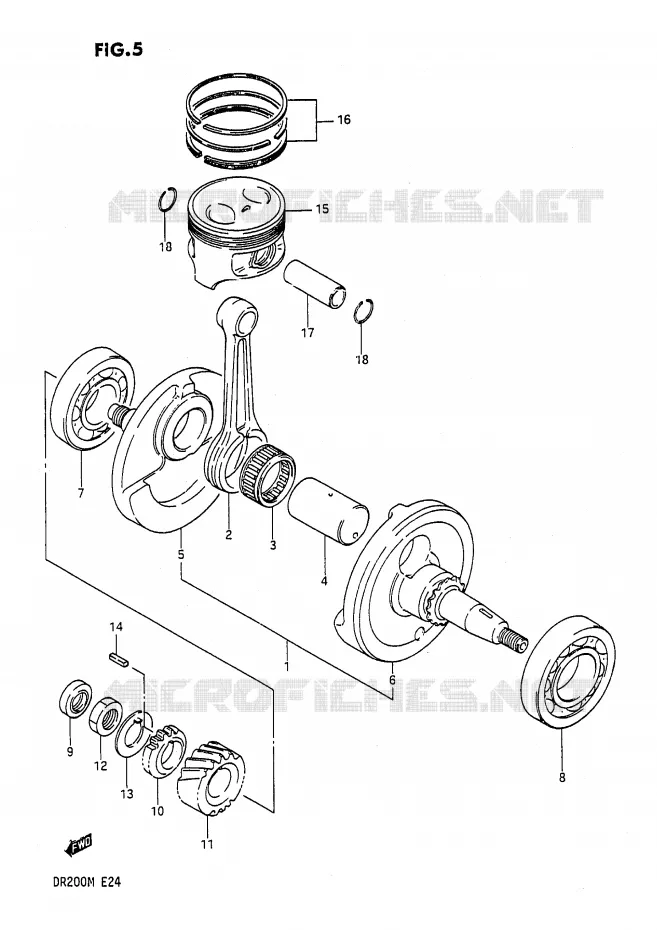

CRANKSHAFT Suzuki MOTO 200 DR 1987 DR200H(E24)
1
CRANKSHAFT ASSY

12200-42A02-000   1220042A02000

1220042A02000
Not available
2
CONNECTING ROD
ROD, CONNECTING

12161-42A01-000   1216142A01000

1216142A01000

Unit Price

3
ROLLER BEARING
BEARING

09263-31008-0B0   09263310080B0

09263310080B0

Unit Price

4
PIN, CRANK

12210-42A00-000  

12210-42A01-000
 1221042A00000

Unit Price

5
CRANKSHAFT, R
CRANKSHAFT, RH

12221-42A02-000   1222142A02000

1222142A02000

Unit Price

6
CRANKSHAFT, LH

12261-42A02-000   1226142A02000

1226142A02000
Not available
7
BALL BEARING
BEARING, RH

09262-28014-000   0926228014000

0926228014000

Unit Price

8
BEARING 35X72X17
BEARING, LH

09262-35038-000   0926235038000

0926235038000

Unit Price

9
SEAL OIL 12X21X7
OIL SEAL, RH

09282-12009-000   0928212009000

0928212009000

Unit Price

10
GEAR, OIL PUMP DRIVE(NT:15)
GEAR, OIL PUMP DRIVE

16321-42A00-000   1632142A00000

1632142A00000

Unit Price

11
21111-42A01
DISCONTINUED

21111-42A00-000   2111142A00000

2111142A00000
Not available
12
PRIMARY DR GEAR NUT
NUT

09140-18004-000   0914018004000

0914018004000

Unit Price

13
WASHER
LOCK WASHER

09166-18003-000   0916618003000

0916618003000

Unit Price

14
KEY

09421-04007-000   0942104007000

0942104007000

Unit Price

15
PISTON

12111-42A02-000  

12111-42A20-0F0
 1211142A02000

Unit Price

15
PISTON SET, OS0.5

12111-42A02-050  

12100-42A40-050
 1211142A02050

Unit Price

15
DISCONTINUE

12111-42A02-100  

1211142A02100
Not available
16
RING SET, PISTON

12140-22A10-000  

12140-19B10-000
 1214022A10000

Unit Price

16
RING SET, PISTON(OS:0.50)

12140-22A10-050  

12140-19B10-050
 1214022A10050

Unit Price

16
RING SET, PISTON(OS:1.0)

12140-22A10-100  

12140-19B10-100
 1214022A10100

Unit Price

17
PIN, PISTON

12151-22A02-000   1215122A02000

1215122A02000

Unit Price

18
PISTON PIN CIRCLIP

09381-16002-000  

09381-16001-000
 0938116002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 200 DR 1987
