FUEL TANK (MODEL K4 / K5)

FAIRING FOR SUZUKI DR 200 2002

HEADLIGHT COVER (MODEL K1,MODEL K2 P9) REFER TO FIG.32A(G- 3) FOR MODEL K2/K3/K4/K5

Item numbers

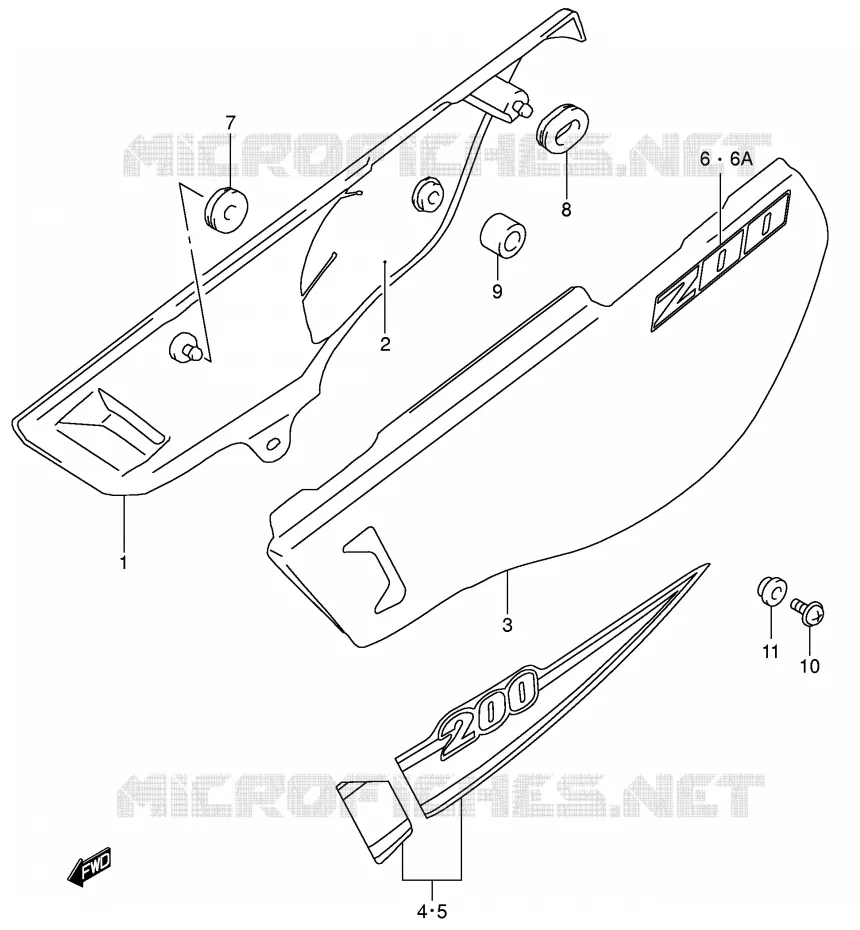

FAIRING Suzuki MOTO 200 DR 2002 DR200SEK2(E24)

1

COVER, FRAME, R(WHITE)

47111-44AA0-30H

47111-44AC0-30H

$132,97

Unit Price

1

COVER, FRAME, R(YELLOW)
COVER, FRAME RH (YELLOW)

47111-44AA0-YU1 4711144AA0YU1

Not available

1

COVER, FRAME RH (WHITE)

47111-44AB0-30H 4711144AB030H

Not available

2

SHIELD, FRAME COVER, R
SHIELD, FRAME COVER RH

47166-44AA0-000 4716644AA0000

$30,97

Unit Price

3

COVER, FRAME, L(WHITE)

47211-44AA0-30H

47211-44AB0-30H

$97,97

Unit Price

3

COVER, FRAME, L(YELLOW)
COVER, FRAME LH (YELLOW)

47211-44AA0-YU1 4721144AA0YU1

Not available

4

TAPE SET, FRAME COVER RH

68130-44A80-FF9 6813044A80FF9

Not available

5

DISCONTINUE
TAPE SET, FRAME COVER LH

68140-44A80-FF9 6814044A80FF9

Not available

6

DISCONTINUE
EMBLEM

68131-44AA0-8YM 6813144AA08YM

Not available

6A

DISCONTINUE
EMBLEM

68131-42A40-8YM 6813142A408YM

Not available

7

CUSHION(8X26X7)

09320-08018-000

09320-08513-000

$5,97

Unit Price

8

CUSHION

09320-08029-000 0932008029000

$3,97

Unit Price

9

CUSHION

09321-10027-000 0932110027000

$8,97

Unit Price

10

SCREW (6X16)

09136-06017-000 0913606017000

$3,97

Unit Price

11

WASHER

09169-06028-000

09169-06031-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRING of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 200 DR 2002
