CARBURETOR FOR SUZUKI DR 200 2002

AIR FILTER

Item numbers

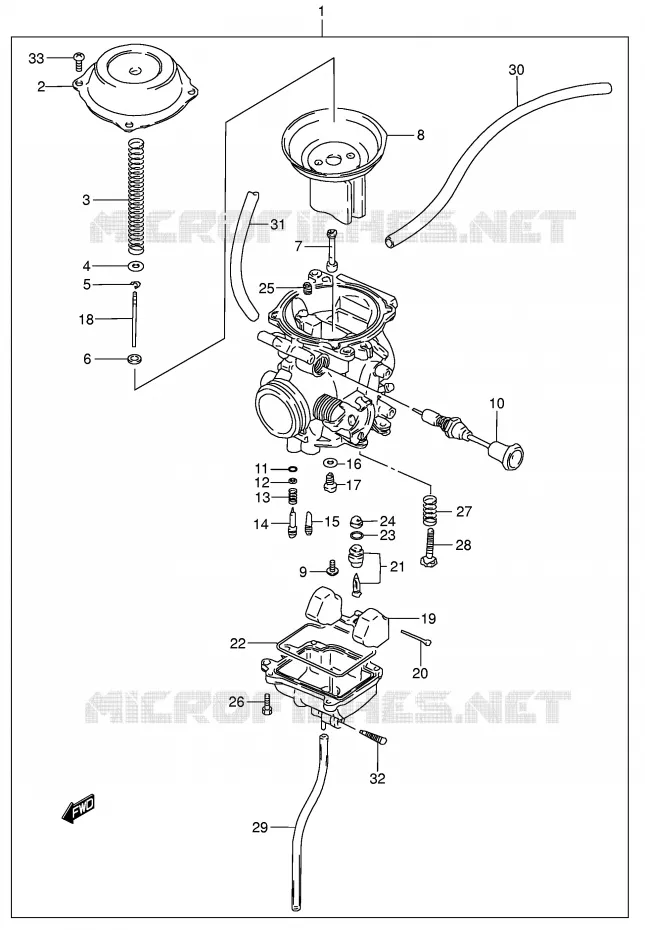

CARBURETOR Suzuki MOTO 200 DR 2002 DR200SEK2(E24)
1
1
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
15
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
1
CARBURETOR ASSY

13200-42AA1-000   1320042AA1000

1320042AA1000
Not available
1
13200-42AC2
CARBURETOR ASSY

13200-42AC0-000   1320042AC0000

1320042AC0000
Not available
1
CARBURETOR ASSY

13200-42AD0-000   1320042AD0000

1320042AD0000
Not available
2
COVER, DIAPHRAGM
COVER

13502-42A00-000   1350242A00000

1350242A00000

Unit Price

3
SPRING
SPRING

13417-42A00-000   1341742A00000

1341742A00000

Unit Price

4
RING
RING

13382-42A00-000   1338242A00000

1338242A00000

Unit Price

5
CLIP<br />CLIP, NEEDLE
CLIP
CLIP, NEEDLE

13394-10010-000   1339410010000

1339410010000

Unit Price

6
RING
RING

13387-47010-000   1338747010000

1338747010000

Unit Price

7
JET, NEEDLE (P-5)

09494-00514-000   0949400514000

0949400514000

Unit Price

7
JET, NEEDLE (P-5M)

09494-00881-000   0949400881000

0949400881000

Unit Price

8
DIAPHRAGM ASSY

13500-42A00-000  

13500-42A01-000
 1350042A00000

Unit Price

9
SCREW
SCREW

13602-43410-000   1360243410000

1360243410000

Unit Price

10
PLUNGER ASSY

13411-42A20-000   1341142A20000

1341142A20000

Unit Price

11
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

12
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

13
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

14
SCREW,PILOT<br />SCREW, PILOT (1.1/4)
SCREW, PILOT
SCREW, PILOT (1.1/4)

13279-47070-000   1327947070000

1327947070000

Unit Price

15
JET, PILOT
JET, PILOT (35)

09492-35008-000   0949235008000

0949235008000

Unit Price

15
JET,PILOT<br />JET, PILOT (40)
JET, PILOT
JET, PILOT (40)

09492-40014-000   0949240014000

0949240014000

Unit Price

16
WASHER
WASHER

13382-03110-000   1338203110000

1338203110000

Unit Price

17
JET,MAIN<br />JET, MAIN (122.5)
JET, MAIN
JET, MAIN (122.5)

09491-24013-000   0949124013000

0949124013000

Unit Price

17
JET, MAIN
JET, MAIN (125)

09491-25010-000   0949125010000

0949125010000

Unit Price

18
NEEDLE, JET
NEEDLE, JET (5D26-3)

13383-42A00-000   1338342A00000

1338342A00000

Unit Price

18
NEEDLE, JET (5D77-1)

13383-42AC0-000   1338342AC0000

1338342AC0000

Unit Price

19
FLOAT
FLOAT

13250-42A00-000   1325042A00000

1325042A00000

Unit Price

20
PIN, FLOAT
PIN, FLOAT

13254-92311-000   1325492311000

1325492311000

Unit Price

21
VALVE ASSY, NEEDLE

13370-44500-000   1337044500000

1337044500000

Unit Price

22
O RING, FLOAT CHAMBER

13251-42A00-000   1325142A00000

1325142A00000

Unit Price

23
O RING,NEEDLE VALVE SEAT<br />O RING
O RING, NEEDLE VALVE SEAT
O RING

13374-35C00-000   1337435C00000

1337435C00000

Unit Price

24
FILTER
FILTER

13376-19F00-000   1337619F00000

1337619F00000

Unit Price

25
JET, PILOT AIR
JET, AIR (135)

09493-27001-000   0949327001000

0949327001000

Unit Price

26
SCREW

02112-04123-000  

02112-0412A-000
 0211204123000

Unit Price

27
SPRING, THROTTLE SCREW
SPRING

13268-37420-000   1326837420000

1326837420000

Unit Price

28
ADJUSTER

13267-25D00-000   1326725D00000

1326725D00000

Unit Price

29
HOSE (3X5X650)
HOSE (3X5X650)

13684-40A00-000   1368440A00000

1368440A00000

Unit Price

30
HOSE
HOSE

09352-50823-600  

09352-50005-600
 0935250823600

Unit Price

31
HOSE,4.5X8.5X600
HOSE, 4.5X8.5X600

09355-45855-600  

09355-45001-600
 0935545855600

Unit Price

32
PLUG,DRAIN
PLUG, DRAIN

13247-13A00-000  

13247-02340-000
 1324713A00000

Unit Price

33
SCREW

02112-04083-000  

02112-0408B-000
 0211204083000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of DR. Let us know if you have any questions.
