HEADLIGHT COVER

REAR FEDNER FOR SUZUKI DR 200 2012

LABEL

Item numbers

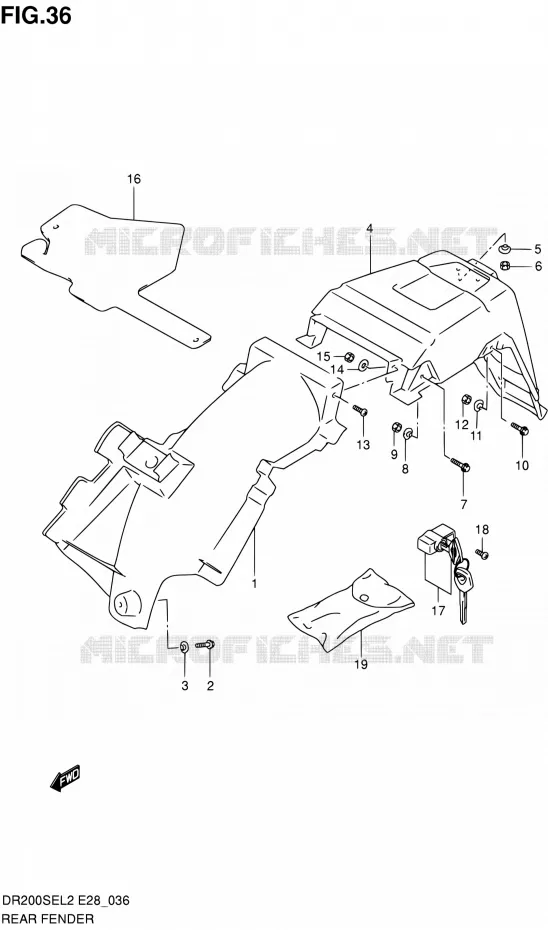

REAR FEDNER Suzuki MOTO 200 DR 2012 DR200SE L2 (E03,E28,E33)
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
BODY, RR FENDER FR
BODY, REAR FENDER FRONT

63110-44AB0-000   6311044AB0000

6311044AB0000

Unit Price

2
BOLT
BOLT

01550-0612B-000   015500612B000

015500612B000

Unit Price

3
CHAIN CASE WASHER<br />WASHER
CHAIN CASE WASHER
WASHER

09169-06010-000   0916906010000

0916906010000

Unit Price

4
BODY ASSY, RR FENDER RR
BODY, REAR FENDER (BLACK)

63100-44AG0-019   6310044AG0019

6310044AG0019

Unit Price

4
BODY ASSY, RR FENDER RR
BODY, REAR FENDER (WHITE)

63100-44AG0-30H   6310044AG030H

6310044AG030H

Unit Price

5
WASHER

09169-06045-000   0916906045000

0916906045000

Unit Price

6
NUT
NUT

08319-3106A-000   083193106A000

083193106A000

Unit Price

7
BOLT
BOLT (8X25)

09106-08151-000   0910608151000

0910608151000

Unit Price

8
WASHER

09169-08037-000  

0916908037000
Not available
9
NUT
NUT

08310-0008B-000   083100008B000

083100008B000

Unit Price

10
BOLT<br />BOLT, REAR
BOLT
BOLT, REAR

01550-0620B-000   015500620B000

015500620B000

Unit Price

11
WASHER

09169-06045-000   0916906045000

0916906045000

Unit Price

12
NUT
NUT

08319-3106A-000   083193106A000

083193106A000

Unit Price

13
SCREW
SCREW, FR/RR

02142-0616B-000   021420616B000

021420616B000

Unit Price

14
WASHER (6.5X18X1.6)
WASHER (6.5X18X1.6)

09160-06084-000   0916006084000

0916006084000

Unit Price

15
NUT
NUT

08319-3106A-000   083193106A000

083193106A000

Unit Price

16
MUDFLAP, RR FENDER FR
MUD FLAP, REAR FENDER FRONT

63411-44AA0-000   6341144AA0000

6341144AA0000

Unit Price

17
LOCK SET, HELMET

95700-41821-000   9570041821000

9570041821000

Unit Price

18
SCREW<br />SCREW (6X14)
SCREW
SCREW (6X14)

09139-06089-000   0913906089000

0913906089000

Unit Price

19
TOOL ASSY

09800-21022-000  

09800-21104-000
 0980021022000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FEDNER of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 200 DR 2012

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 200 DR 2012

Select your Suzuki 2012 model

200 DR 2012 DR200SE L2 (E03,E28,E33)

Suzuki DR

Displacement: 200 cc
Year: 2012
Model code DR200SE L2 (E03,E28,E33)
