HEAD LAMP

TJRN SIGNAL LAMP FOR SUZUKI DR 200 2012

TAIL LIGHT ASSY

Item numbers

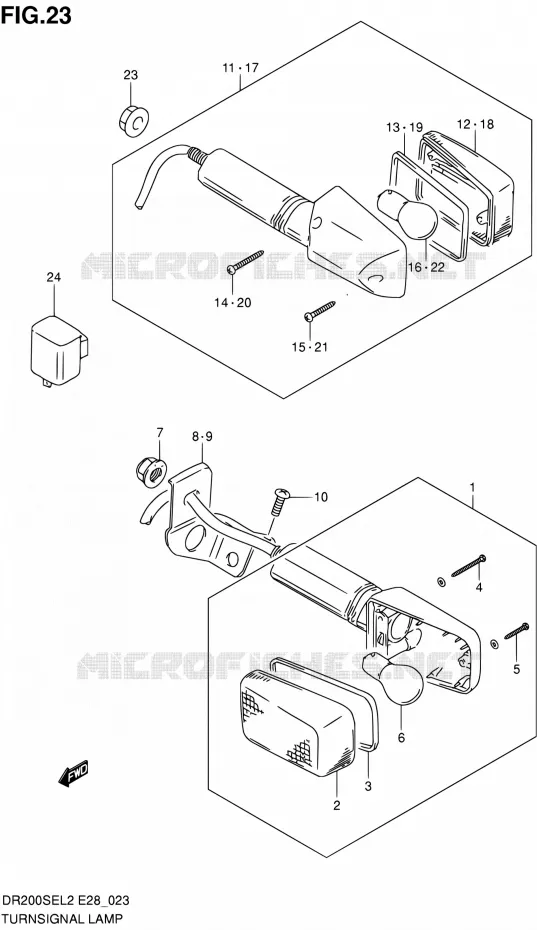

TJRN SIGNAL LAMP Suzuki MOTO 200 DR 2012 DR200SE L2 (E03,E28,E33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
LAMP ASSY,FR TURN SIGNAL<br />LAMP ASSY, FRONT TURN SIGNAL
LAMP ASSY, FR TURN SIGNAL
LAMP ASSY, FRONT TURN SIGNAL

35601-29EC0-000   3560129EC0000

3560129EC0000

Unit Price

2
LENS<br />.LENS, FRONT TURN SIGNAL
LENS
.LENS, FRONT TURN SIGNAL

35612-17C20-000   3561217C20000

3561217C20000

Unit Price

3
.GASKET
.GASKET

35613-27A00-000   3561327A00000

3561327A00000

Unit Price

4
SCREW(3X30)<br />.SCREW
SCREW(3X30)
.SCREW

35623-27A00-000   3562327A00000

3562327A00000

Unit Price

5
.SCREW
.SCREW

35725-40511-000   3572540511000

3572540511000

Unit Price

6
BULB(12V60/55W,H4)<br />.BULB (12V,21W)
BULB(12V60/55W, H4)
.BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

7
NUT

08316-1010A-000   083161010A000

083161010A000

Unit Price

8
BRACKET, FR TURN, R
BRACKET, FRONT TURN RH

35670-44A01-000   3567044A01000

3567044A01000

Unit Price

9
BRACKET, FR TURN, L
BRACKET, FRONT TURN LH

35680-44A01-000   3568044A01000

3568044A01000

Unit Price

10
SCREW

02142-0508B-000   021420508B000

021420508B000

Unit Price

11
LAMP ASSY, RR TURNSIGNAL
LAMP ASSY, REAR TURNSIGNAL RH

35603-29EK0-000   3560329EK0000

3560329EK0000

Unit Price

12
LENS<br />.LENS, REAR TURN SIGNAL
LENS
.LENS, REAR TURN SIGNAL

35652-17C20-000   3565217C20000

3565217C20000

Unit Price

13
.GASKET
.GASKET

35613-27A00-000   3561327A00000

3561327A00000

Unit Price

14
SCREW(3X30)<br />.SCREW
SCREW(3X30)
.SCREW

35623-27A00-000   3562327A00000

3562327A00000

Unit Price

15
.SCREW
.SCREW

35725-40511-000   3572540511000

3572540511000

Unit Price

16
BULB(12V60/55W,H4)<br />.BULB (,12V,21W)
BULB(12V60/55W, H4)
.BULB (, 12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

17
LAMP ASSY, RR TURNSIGNAL
LAMP ASSY, REAR TURNSIGNAL LH

35603-29EK0-000   3560329EK0000

3560329EK0000

Unit Price

18
LENS<br />.LENS, REAR TURN SIGNAL
LENS
.LENS, REAR TURN SIGNAL

35652-17C20-000   3565217C20000

3565217C20000

Unit Price

19
.GASKET
.GASKET

35613-27A00-000   3561327A00000

3561327A00000

Unit Price

20
SCREW(3X30)<br />.SCREW
SCREW(3X30)
.SCREW

35623-27A00-000   3562327A00000

3562327A00000

Unit Price

21
.SCREW
.SCREW

35725-40511-000   3572540511000

3572540511000

Unit Price

22
BULB(12V60/55W,H4)<br />.BULB (12V,21W)
BULB(12V60/55W, H4)
.BULB (12V, 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

23
NUT

08316-1010A-000   083161010A000

083161010A000

Unit Price

24
RELAY ASSY,TURNSIGNAL<br />RELAY, TURN SIGNAL
RELAY ASSY, TURNSIGNAL
RELAY, TURN SIGNAL

38610-31X50-000   3861031X50000

3861031X50000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TJRN SIGNAL LAMP of your Suzuki of DR. Let us know if you have any questions.
