INDICATORS (DR200SEL2 E06)

TAIL LIGHT (DR200SEL2 E06) FOR SUZUKI DR 200 2012

TAIL LIGHT (DR200SEL2 E24)

Item numbers

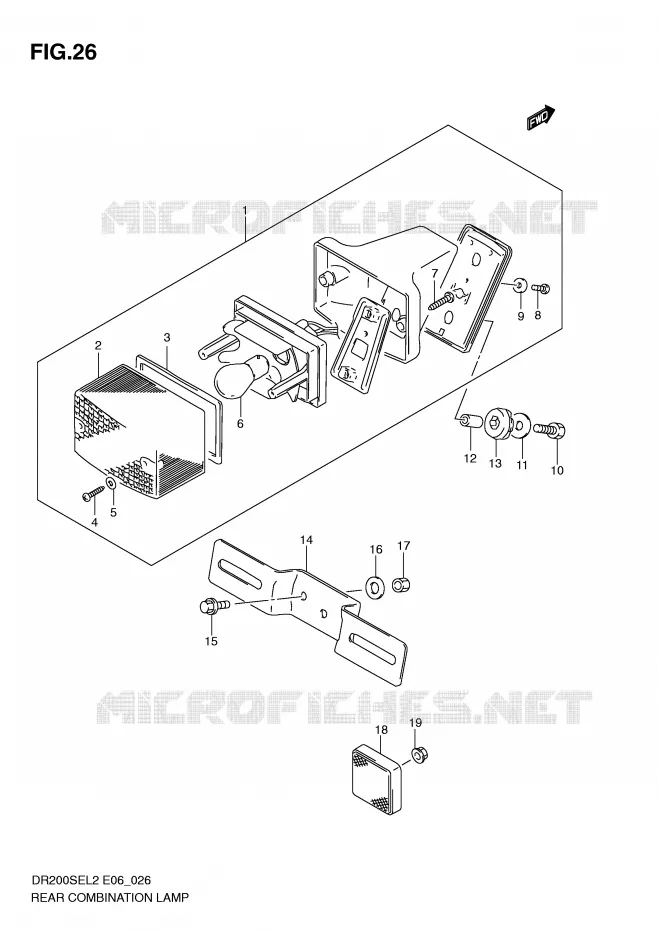

TAIL LIGHT (DR200SEL2 E06) Suzuki MOTO 200 DR 2012 DR200SEL2(E06)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
LAMP ASSY, REAR COMBINATION

35710-42A10-000   3571042A10000

3571042A10000
Not available
2
LENS

35712-36A70-000   3571236A70000

3571236A70000
Not available
3
GASKET

35713-13600-000   3571313600000

3571313600000
Not available
4
SCREW
SCREW

03211-04207-000   0321104207000

0321104207000

Unit Price

5
GASKET
GASKET

35627-43010-000   3562743010000

3562743010000

Unit Price

6
BULB(12V1.4W G30)<br />BULB (12V,21/5W)
BULB(12V1.4W G30)
BULB (12V, 21/5W)

09471-12083-000   0947112083000

0947112083000

Unit Price

7
TAPPING SCREW

03211-0525B-000   032110525B000

032110525B000
Not available
8
SCREW

02112-03107-000  

02112-0310A-000
 0211203107000

Unit Price

9
WASHER
WASHER

08322-01037-000   0832201037000

0832201037000

Unit Price

10
BOLT
BOLT

01500-0625B-000   015000625B000

015000625B000

Unit Price

11
WASHER<br />WASHER (6.5X18X1.6)
WASHER
WASHER (6.5X18X1.6)

09160-06109-000   0916006109000

0916006109000

Unit Price

12
SPACER (6.5X9X17.5)

09180-06270-000   0918006270000

0918006270000
Not available
13
CUSHION

09320-09015-000   0932009015000

0932009015000

Unit Price

14
BRACKET LICENSE PLATE

35927-14D30-000   3592714D30000

3592714D30000

Unit Price

15
BOLT
BOLT

01550-0616B-000   015500616B000

015500616B000

Unit Price

16
WASHER<br />WASHER (6.5X18X1.6)
WASHER
WASHER (6.5X18X1.6)

09160-06109-000   0916006109000

0916006109000

Unit Price

17
NUT

08310-0006B-000  

083100006B000
Not available
18
REFLEX REFLECTOR ASSY, REAR

35970-29E00-000   3597029E00000

3597029E00000
Not available
19
NUT
NUT

08316-1006B-000   083161006B000

083161006B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT (DR200SEL2 E06) of your Suzuki of DR. Let us know if you have any questions.
