CRANKCASE

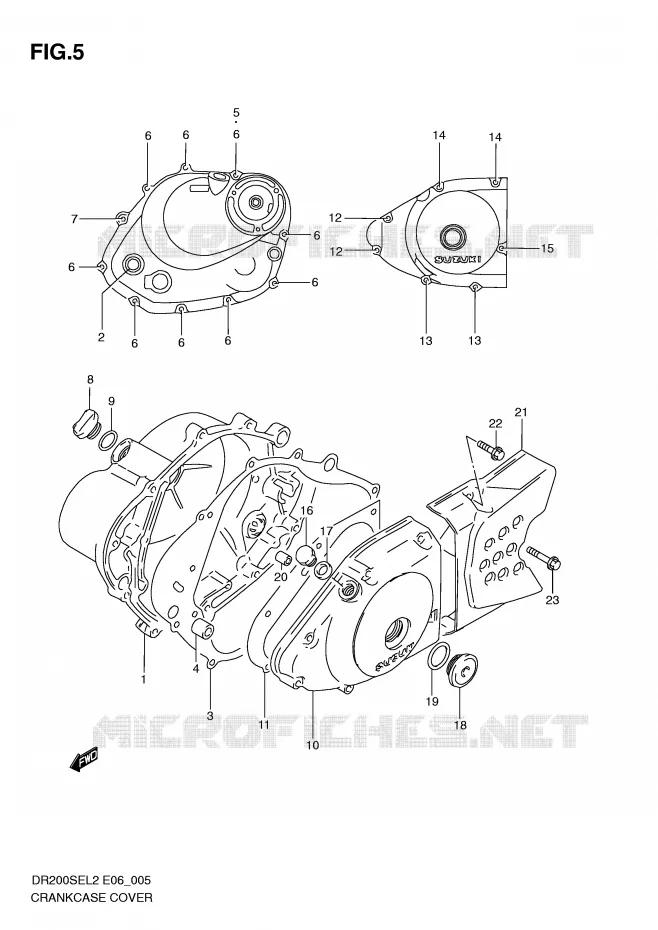

CRANKCASE COVER FOR SUZUKI DR 200 2012

CRANKSHAFT

Item numbers

COVER, CLUTCH

11340-42A60-000 1134042A60000

Not available

LENS, OIL LEVEL CHECK
LENS, OIL LEVEL

11971-45010-000 1197145010000

$18,97

Unit Price

GASKET, CLUTCH COVER

11482-05211-000 1148205211000

$17,97

Unit Price

PIN
KNOCK PIN

04211-13189-000 0421113189000

$3,97

Unit Price

GASKET
GASKET (5.8X13X1.2)

09168-06023-000 0916806023000

Not available

BOLT

01547-0630A-000 015470630A000

$4,97

Unit Price

BOLT

01547-0645A-000 015470645A000

$3,97

Unit Price

PLUG, 20 X 10
PLUG

09259-20019-000 0925920019000

$19,97

Unit Price

O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000 0928017003000

$2,97

Unit Price

COVER, MAGNETO

11351-42A30-000 1135142A30000

$126,97

Unit Price

GASKET, MAGNETO COVER

11483-05312-000 1148305312000

$16,97

Unit Price

BOLT

01547-0630A-000 015470630A000

$4,97

Unit Price

BOLT

01547-0635A-000 015470635A000

$3,97

Unit Price

BOLT

01547-0640A-000 015470640A000

$3,97

Unit Price

BOLT

01547-0650A-000 015470650A000

$3,97

Unit Price

PLUG, T.D.C.
PLUG

09247-12104-000 0924712104000

$4,97

Unit Price

GASKET OIL GALLERY
GASKET (12.1X16.2X3.7)

09168-12002-000 0916812002000

Not available

PLUG

09259-26011-000 0925926011000

$18,97

Unit Price

O-RING, CRK HOLE PLUG
O RING (D:3.1, ID:22.7)

09280-22008-000 0928022008000

$3,97

Unit Price

9 X 12 DOWEL PIN
KNOCK PIN

04211-09129-000 0421109129000

$2,97

Unit Price

COVER, ENGINE SPROCKET

11360-42A20-000 1136042A20000

$88,97

Unit Price

BOLT

01547-0625A-000

01547-0625B-000

$3,97

Unit Price

BOLT

01547-0635A-000 015470635A000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE COVER of your Suzuki of DR. Let us know if you have any questions.
