INDICATORS

TAIL LIGHT ASSY FOR SUZUKI DR 200 2016

WIRING HARNESS

Item numbers

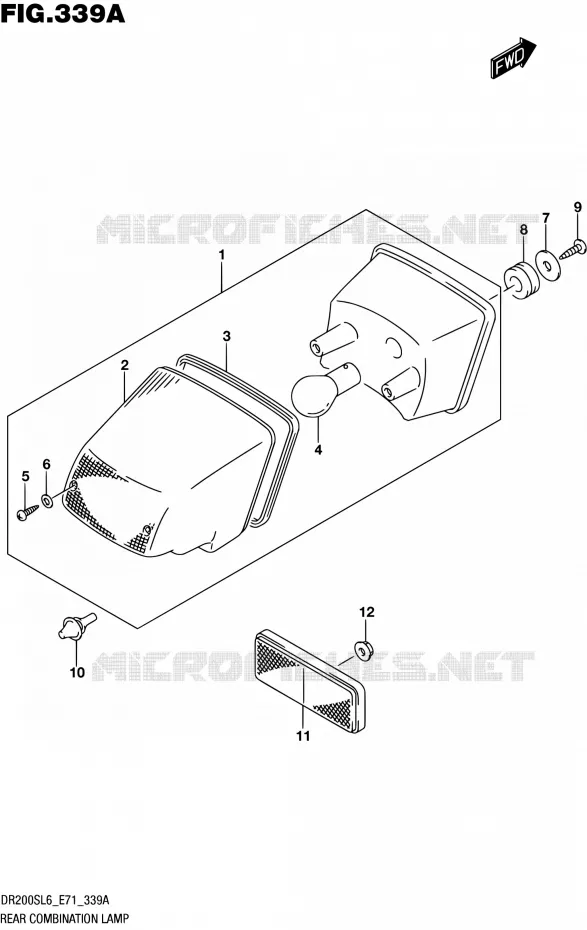

TAIL LIGHT ASSY Suzuki MOTO 200 DR 2016 DR200S L6 (E71)
1
2
3
4
5
6
7
8
9
10
11
12
1
LAMP ASSY, RR COMB
LAMP ASSY, REAR COMBINATION

35710-44E21-000   3571044E21000

3571044E21000
Not available
2
.LENS

35712-44E00-000   3571244E00000

3571244E00000
Not available
3
.GASKET

35713-44E00-000   3571344E00000

3571344E00000
Not available
4
BULB(12V1.4W G30)<br />.BULB (12V, 21/5W)
BULB(12V1.4W G30)
.BULB (12V, 21/5W)

09471-12083-000   0947112083000

0947112083000

Unit Price

5
.SCREW
.SCREW

03211-04207-000   0321104207000

0321104207000

Unit Price

6
.GASKET
.GASKET

35627-43010-000   3562743010000

3562743010000

Unit Price

7
WASHER<br />WASHER (5.5X20X1.2)
WASHER
WASHER (5.5X20X1.2)

09160-05501-000   0916005501000

0916005501000

Unit Price

8
CUSHION
CUSHION

09320-10501-000   0932010501000

0932010501000

Unit Price

9
SCREW
SCREW

03541-0516A-000   035410516A000

035410516A000

Unit Price

10
CUSHION, LICENSE PLATE

09321-06032-000   0932106032000

0932106032000
Not available
11
REFLECTOR ASSY,RR<br />REFLEX REFLECTOR ASSY, REAR
REFLECTOR ASSY, RR
REFLEX REFLECTOR ASSY, REAR

35970-07F01-000   3597007F01000

3597007F01000

Unit Price

12
NUT
NUT

08316-1005A-000   083161005A000

083161005A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT ASSY of your Suzuki of DR. Let us know if you have any questions.
