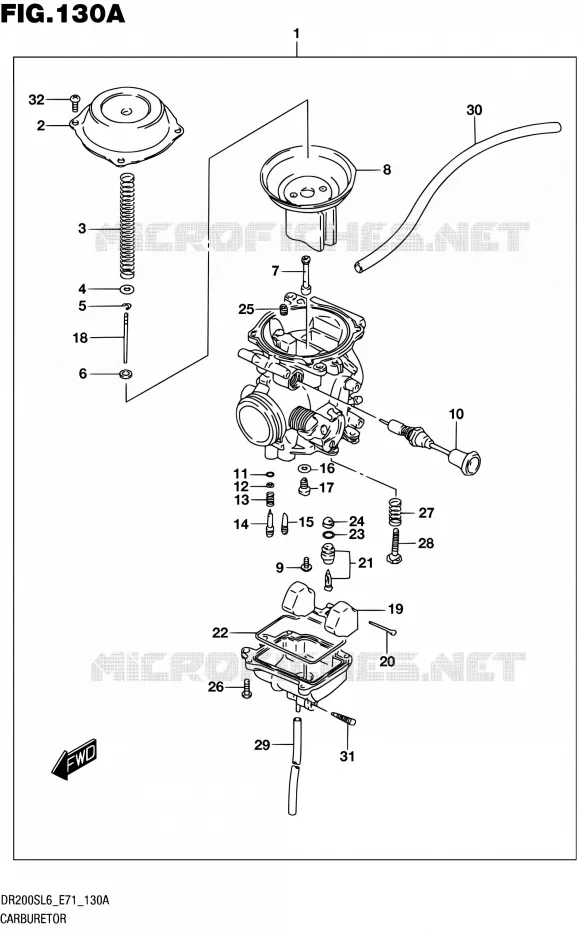

CARBURETOR FOR SUZUKI DR 200 2016

AIR FILTER

Item numbers

CARBURETOR ASSY

13200-42AC2-000 1320042AC2000

$536,97

Unit Price

COVER, DIAPHRAGM
.COVER

13502-42A00-000 1350242A00000

$30,97

Unit Price

.SPRING

13417-42A00-000 1341742A00000

$10,97

Unit Price

.RING

13382-42A00-000 1338242A00000

$6,97

Unit Price

CLIP
.CLIP, NEEDLE

13394-10010-000 1339410010000

$6,97

Unit Price

.RING

13387-47010-000 1338747010000

$11,97

Unit Price

.JET, NEEDLE (P-5M)

09494-00881-000 0949400881000

$75,97

Unit Price

DIAPHRAGM ASSY

13500-42A00-000

13500-42A01-000

$207,97

Unit Price

.SCREW

13602-43410-000 1360243410000

$4,97

Unit Price

.PLUNGER ASSY

13411-42A20-000 1341142A20000

$42,97

Unit Price

O RING, PILOT AIR SCREW

13295-29900-000

13295-29901-000

$5,97

Unit Price

.WASHER

13291-29900-000 1329129900000

$2,97

Unit Price

.SPRING

13268-47070-000 1326847070000

$6,97

Unit Price

.SCREW, PILOT

13279-47070-000 1327947070000

$19,97

Unit Price

JET, PILOT
.JET, PILOT (35)

09492-35008-000 0949235008000

$16,97

Unit Price

.WASHER

13382-03110-000 1338203110000

$4,97

Unit Price

JET, MAIN
.JET, MAIN (125)

09491-25010-000 0949125010000

$16,97

Unit Price

.NEEDLE, JET (5D77-1)

13383-42AC0-000 1338342AC0000

$17,97

Unit Price

.FLOAT

13250-42A00-000 1325042A00000

$42,97

Unit Price

.PIN, FLOAT

13254-92311-000 1325492311000

$2,97

Unit Price

.VALVE ASSY, NEEDLE

13370-44500-000 1337044500000

$51,97

Unit Price

.O RING, FLOAT CHAMBER

13251-42A00-000 1325142A00000

$13,97

Unit Price

.O RING, NEEDLE VALVE SEAT

13374-35C00-000 1337435C00000

$7,97

Unit Price

.FILTER

13376-19F00-000 1337619F00000

$15,97

Unit Price

JET, PILOT AIR
.JET, AIR (135)

09493-27001-000 0949327001000

$23,97

Unit Price

SCREW

13602-05A40-000

02112-0412A-000

$2,97

Unit Price

.SPRING, THROTTLE SCREW

13268-37420-000 1326837420000

$4,97

Unit Price

.ADJUSTER

13267-25D00-000 1326725D00000

$17,97

Unit Price

HOSE (7.4X3.2X135)

09355-30705-600

09355-30001-600

$17,97

Unit Price

HOSE

09352-50823-600

09352-50005-600

$11,97

Unit Price

PLUG, DRAIN

13247-13A00-000

13247-02340-000

$7,97

Unit Price

SCREW

02112-0408A-000

02112-0408B-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of DR. Let us know if you have any questions.
