OIL PUMP FOR SUZUKI DR-Z 250 2005

OIL COOLER

Item numbers

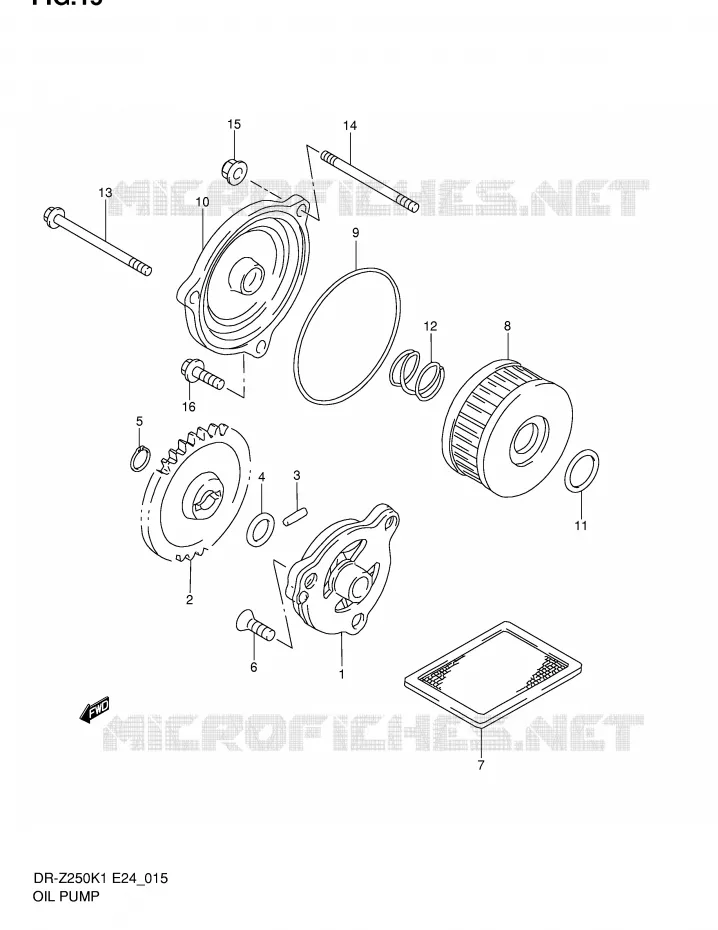

OIL PUMP Suzuki MOTO 250 DR-Z 2005 DR-Z250K5(E24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
1
PUMP ASSY, ENGINE OIL

16400-13E00-000   1640013E00000

1640013E00000

Unit Price

2
GEAR, OIL PUMP DRIVEN (NT:33)

16331-38200-000   1633138200000

1633138200000

Unit Price

3
GR SHIFT CAM DR PIN<br />PIN (4X15.8)
GR SHIFT CAM DR PIN
PIN (4X15.8)

09261-04009-000   0926104009000

0926104009000

Unit Price

4
SHIM (10X18X0.5)
SHIM (10X18X0.5)

09181-10158-000   0918110158000

0918110158000

Unit Price

5
CIRCLIP

08331-31106-000  

08331-31109-000
 0833131106000

Unit Price

6
SCREW

02122-06163-000  

02122-0616B-000
 0212206163000

Unit Price

7
STRAINER COMP, ENGINE

16520-30A00-000  

16520-30A01-000
 1652030A00000

Unit Price

8
FILTER ASSY, ENGINE OIL
FILTER, ENGINE OIL

16510-38240-000   1651038240000

1651038240000
Not available
9
O RING OIL FLT CAP
O RING (D:2.4, ID:73)

09280-72001-000   0928072001000

0928072001000
Not available
10
CAP, OIL FILTER

16512-12E00-000   1651212E00000

1651212E00000

Unit Price

11
O RING (D:2.4,ID:15.8)
O RING (D:2.4, ID:15.8)

09280-15007-000   0928015007000

0928015007000
Not available
12
SPRING

09440-21006-000   0944021006000

0944021006000

Unit Price

13
BOLT

01547-06753-000  

01547-0675A-000
 0154706753000

Unit Price

14
BOLT, STUD
BOLT, OIL FILTER CAP STUD

09108-06127-000   0910806127000

0910806127000

Unit Price

14
09108-06127
BOLT, OIL FILTER CAP STUD

16513-13E00-000   1651313E00000

1651313E00000
Not available
15
NUT

08313-20063-000  

08313-2006A-000
 0831320063000

Unit Price

16
BOLT

01547-06203-000  

01547-0620B-000
 0154706203000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
