FUEL TANK (MODEL X / Y)

FAIRING FOR SUZUKI DR 250 2000

HEADLAMP HOUSING

Item numbers

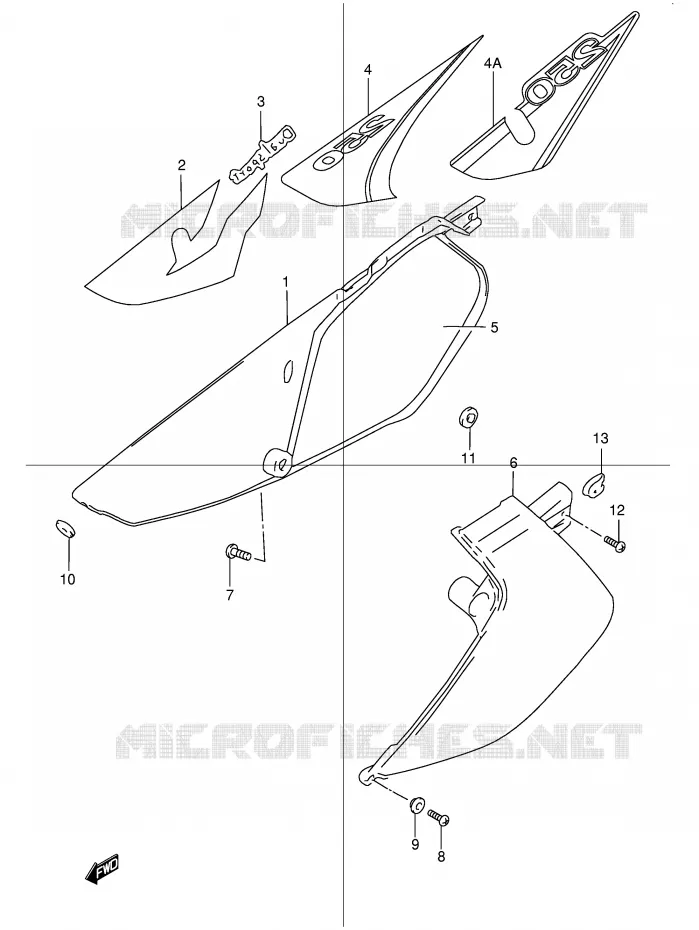

FAIRING Suzuki MOTO 250 DR 2000 DR250RY(E24)
1
2
3
4
4A
5
6
7
8
9
10
11
12
13
1
COVER, FRAME, R(WHITE)
COVER, FRAME RH (WHITE)

47111-13E00-30H   4711113E0030H

4711113E0030H

Unit Price

2
TAPE, FRAME COVER RH

68135-13E30-H8V   6813513E30H8V

6813513E30H8V
Not available
3
EMBLEM, FRAME COVER RH

68131-13E00-H8Y   6813113E00H8Y

6813113E00H8Y
Not available
4
TAPE, FRAME COVER RH

68135-13E60-L4U   6813513E60L4U

6813513E60L4U
Not available
4A
TAPE, FRAME COVER RH

68135-13EA0-DF1   6813513EA0DF1

6813513EA0DF1
Not available
5
SHIELD, FRAME COVER, R
SHIELD, FRAME COVER RH

47166-13E00-000   4716613E00000

4716613E00000

Unit Price

6
COVER, FRAME, L(WHITE)
COVER, FRAME LH (WHITE)

47211-13E00-30H   4721113E0030H

4721113E0030H

Unit Price

7
SCREW 6X12<br />SCREW
SCREW 6X12
SCREW

02142-06127-000   0214206127000

0214206127000

Unit Price

8
6X16CROSS SCREW<br />SCREW
6X16CROSS SCREW
SCREW

02142-06167-000   0214206167000

0214206167000

Unit Price

9
WASHER

09169-06028-000  

09169-06031-000
 0916906028000

Unit Price

10
FRAME COVER CUSHION
FRAME COVER CUSHION

09320-08013-000  

09320-08509-000
 0932008013000

Unit Price

11
CUSHION
CUSHION

09321-10018-000   0932110018000

0932110018000

Unit Price

12
SCREW

03541-15123-000  

03541-1512B-000
 0354115123000

Unit Price

13
NUT INST CENTER

09148-05004-000  

09148-05013-000
 0914805004000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRING of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 250 DR 2000

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 250 DR 2000

Select your Suzuki 2000 model

250 DR 2000 DR250RY(E24)

Suzuki DR

Displacement: 250 cc
Year: 2000
Model code DR250RY(E24)
