STARTER MOTOR CLUTCH

CRANK BALANCER FOR SUZUKI DR 250 2000

CAM SHAFT / VALVE

Item numbers

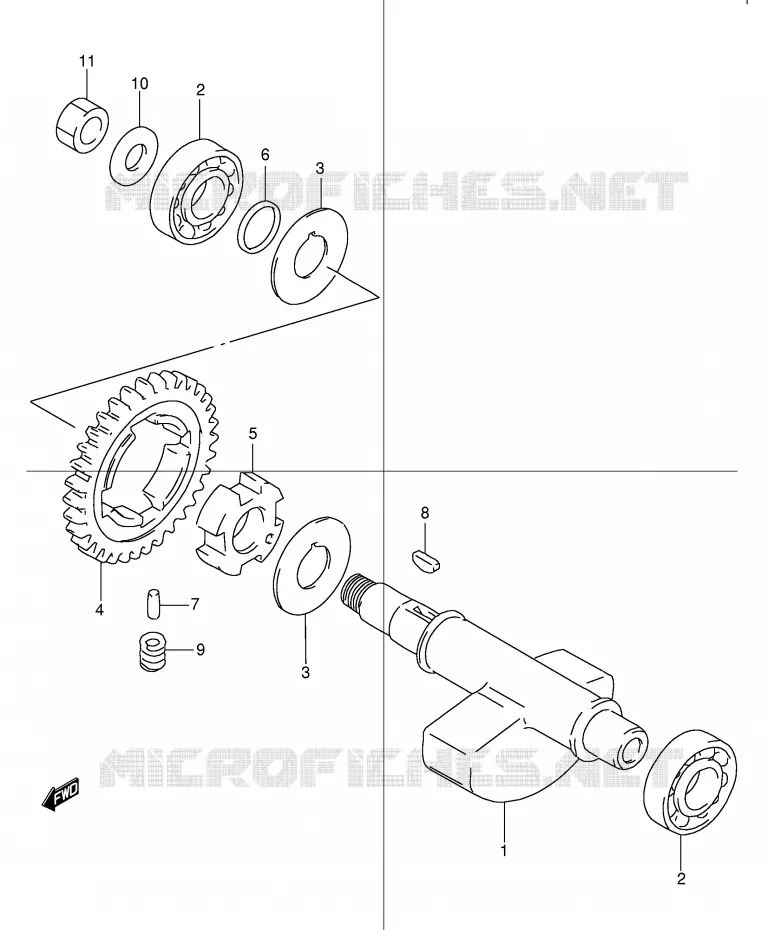

CRANK BALANCER Suzuki MOTO 250 DR 2000 DR250RY(E24)
1
2
2
3
3
4
5
6
7
8
9
10
11
1
BALANCER, CRANK

12651-13E01-000   1265113E01000

1265113E01000

Unit Price

2
BEARING (15X42X13)
BEARING (15X42X13)

09262-15027-000   0926215027000

0926215027000

Unit Price

3
WASHER
WASHER (16X38X2)

09166-16019-000   0916616019000

0916616019000

Unit Price

4
GEAR, CRANK BAL DRIVEN(NT:34)
GEAR, CRANK BALANCER DRIVEN (NT:34)

12666-13E00-000   1266613E00000

1266613E00000

Unit Price

5
RACE, CRK BAL DRIVEN GR INNER
RACE, CRANK BALANCER DRIVEN GEAR INNER

12666-12E01-000   1266612E01000

1266612E01000

Unit Price

6
SHIM (16X22X0.5)

09181-16130-000   0918116130000

0918116130000
Not available
7
PIN, CRANK BAL DRIVEN
PIN (D:4.5, L:9.5)

09202-04017-000   0920204017000

0920204017000

Unit Price

8
KEY
KEY

08341-31039-000   0834131039000

0834131039000

Unit Price

9
SPRING

09440-09031-000   0944009031000

0944009031000

Unit Price

10
WASHER

08211-12255-000   0821112255000

0821112255000
Not available
11
NUT

09159-12048-000   0915912048000

0915912048000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANK BALANCER of your Suzuki of DR. Let us know if you have any questions.
