Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

STARTER MOTOR CLUTCH

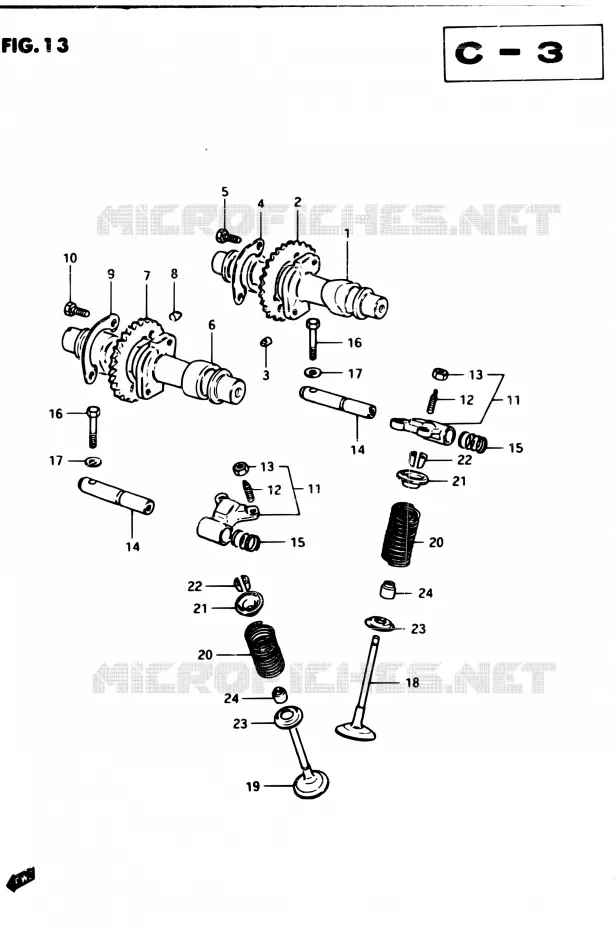

CAMSHAFT - VALVES FOR SUZUKI GSX 250 1982

TIMING (MODELE Z)

Item numbers

CAM SHAFT, INTAKE

12711-11401-000 1271111401000

Not available

CAM SHAFT, INTAKE

12711-11411-000 1271111411000

Not available

CAM SHAFT, INTAKE

12711-11900-000 1271111900000

Not available

SPROCKET (NT:30)

12741-11401-000 1274111401000

Not available

PIN, SPROCKET
PIN

12748-44000-000 1274844000000

$6,97

Unit Price

WASHER, SPROCKET

12747-44000-000

12747-44001-000

$3,97

Unit Price

BOLT(6X12.5)
BOLT

09111-06027-000 0911106027000

$2,97

Unit Price

CAM SHAFT, EXHAUST

12721-11401-000 1272111401000

Not available

CAM SHAFT, EXHAUST

12721-11411-000 1272111411000

Not available

CAM SHAFT, EXHAUST

12721-11900-000 1272111900000

Not available

SPROCKET (NT:30)

12751-11401-000 1275111401000

Not available

PIN, SPROCKET
PIN

12748-44000-000 1274844000000

$6,97

Unit Price

WASHER, SPROCKET

12747-44000-000

12747-44001-000

$3,97

Unit Price

BOLT(6X12.5)
BOLT

09111-06027-000 0911106027000

$2,97

Unit Price

ARM, VALVE ROCKER

12840-11400-000 1284011400000

Not available

SCREW, TAPPET ADJUSTING

12842-49210-000

12842-49201-000

$8,97

Unit Price

.NUT

12843-49210-000 1284349210000

Not available

SHAFT, ROCKER ARM

12860-44200-000 1286044200000

Not available

SPRING

09440-13014-000 0944013014000

$3,97

Unit Price

BOLT FIG.48 (G-10) : GSX1100XD/EXD FIG.49 (G-11) : GSX1100ESD

01107-06308-000 0110706308000

Not available

WASHER

08322-21068-000 0832221068000

Not available

DISCONTINUE
VALVE, INTAKE

12911-11410-000 1291111410000

Not available

DISCONTINUE
VALVE, EXHAUST

12912-11410-000 1291211410000

Not available

VALVE SPRING

12921-11410-000 1292111410000

Not available

RETAINER, VALVE SPRING

12931-49200-000

12931-49201-000

$10,97

Unit Price

COTTER, VALVE

12932-49200-000 1293249200000

$4,97

Unit Price

SEAT, VALVE SPRING
SEAT, SPRING

12933-38200-000 1293338200000

$10,97

Unit Price

SEAL, OIL(5.5X11X8.2)

09289-05003-000

09289-05015-000

$8,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAMSHAFT - VALVES of your Suzuki of GSX. Let us know if you have any questions.

Select your Suzuki 1982 model
