Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

LEFT HANDLE SW (MODELE Z)

SWINGARM FOR SUZUKI GSX 250 1982

CHAIN GUARD - SHOCK ABSORBER

Item numbers

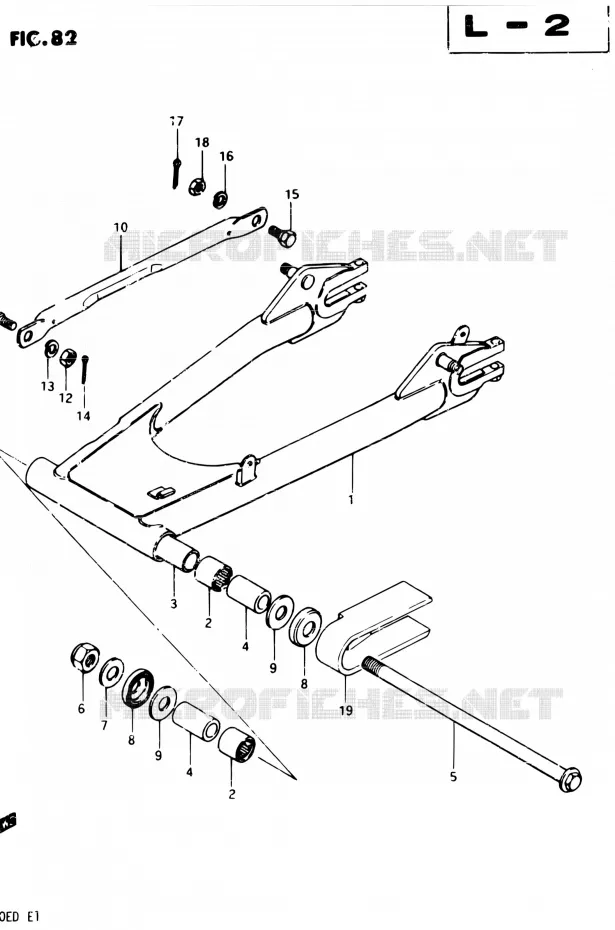

SWINGARM Suzuki MOTO 250 GSX 1982 GSX250 Z/GSX250E Z/GSX250S Z/GSX250ES Z
1
2
2
3
4
4
5
6
7
8
8
9
9
10
12
13
14
15
16
17
18
1
REAR SWINGING ARM SET

61000-44400-019   6100044400019

6100044400019
Not available
2
R BEARING 22X29X30<br />.BEARING
R BEARING 22X29X30
.BEARING

09263-22017-000   0926322017000

0926322017000

Unit Price

3
DISCONTINUE
SPACER

61281-44001-000   6128144001000

6128144001000
Not available
4
SPACER,RR SWGARM PIVOT<br />SPACER
SPACER, RR SWGARM PIVOT
SPACER

61251-45001-000   6125145001000

6125145001000

Unit Price

5
SHAFT, PIVOT

61211-44400-000   6121144400000

6121144400000
Not available
6
NUT

08319-21148-000  

08319-2114A-000
 0831921148000

Unit Price

7
WASHER

08322-11148-000  

08322-01147-000
 0832211148000

Unit Price

8
CVR,RR SWGARM DUST SEAL(OD:40)<br />COVER, DUST SEAL
CVR, RR SWGARM DUST SEAL(OD:40)
COVER, DUST SEAL

61262-45002-000   6126245002000

6126245002000

Unit Price

9
SWING ARM PIT WASHER<br />WASHER
SWING ARM PIT WASHER
WASHER

09160-14020-000   0916014020000

0916014020000

Unit Price

10
TORQUE LINK, REAR

64311-44000-019   6431144000019

6431144000019
Not available
11
DISCONTINUE<br />BOLT, FRONT
DISCONTINUE
BOLT, FRONT

09111-10010-000   0911110010000

0911110010000
Not available
12
NUT, FRONT

08310-22108-000   0831022108000

0831022108000
Not available
13
.LOCK WASHER

08321-21108-000   0832121108000

0832121108000
Not available
14
PIN

04111-20208-000  

04111-2020A-000
 0411120208000

Unit Price

15
TORQUE LINK BOLT<br />BOLT, REAR
TORQUE LINK BOLT
BOLT, REAR

09101-10003-000   0910110003000

0910110003000

Unit Price

16
.LOCK WASHER

08321-21108-000   0832121108000

0832121108000
Not available
17
PIN

04111-20208-000  

04111-2020A-000
 0411120208000

Unit Price

18
.NUT

08310-11108-000   0831011108000

0831011108000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki of GSX. Let us know if you have any questions.

Genuine parts for Suzuki 250 GSX 1982

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 250 GSX 1982

Select your Suzuki 1982 model

250 GSX 1982 GSX250 Z/GSX250E Z/GSX250S Z/GSX250ES Z

Suzuki GSX

Displacement: 250 cc
Year: 1982
Model code GSX250 Z / GSX250E Z / GSX250S Z / GSX250ES Z
