Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION

GEAR SHIFTING ASSY FOR SUZUKI GSX 250 1982

GENERATOR SENSOR

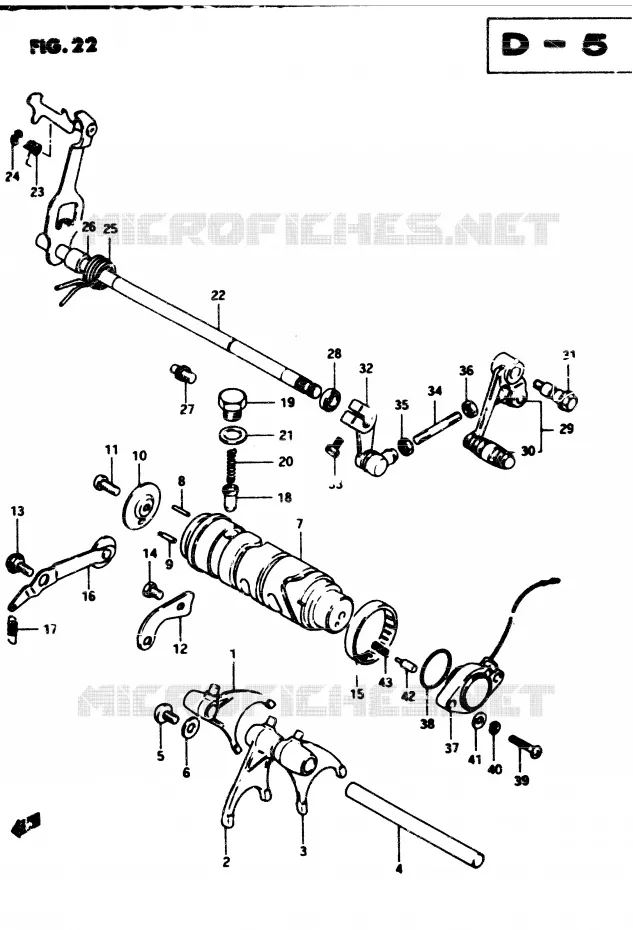

GEAR SHIFTING ASSY Suzuki MOTO 250 GSX 1982 GSX250Z(Z/D)
1
FORK, GEAR SHIFTING NO.1

25211-11400-000   2521111400000

2521111400000
Not available
2
FORK, GEAR SHIFT NO.2
FORK, GEAR SHIFTING NO.2

25221-44001-000   2522144001000

2522144001000

Unit Price

3
FORK, GEAR SHIFTING NO.3

25231-11400-000   2523111400000

2523111400000
Not available
4
SHAFT, GEAR SHIFTING FORK

25411-31000-000   2541131000000

2541131000000
Not available
5
SCREW

02142-06108-000  

02142-06107-000
 0214206108000

Unit Price

6
THRUST WASHER<br />WASHER
THRUST WASHER
WASHER

08211-06141-000   0821106141000

0821106141000

Unit Price

7
CAM, GEAR SHIFTING

25311-47000-000   2531147000000

2531147000000
Not available
8
PIN(4X18.5)<br />PIN
PIN(4X18.5)
PIN

09261-04001-000   0926104001000

0926104001000

Unit Price

9
PIN
PIN

09209-04013-000   0920904013000

0920904013000

Unit Price

10
RETAINER, GEAR SHIFT CAM DR PIN
HOLDER, DRIVE PIN

25322-44000-000   2532244000000

2532244000000

Unit Price

11
.SCREW

02112-06168-000   0211206168000

0211206168000
Not available
12
GUIDE, CAM

25341-44000-000   2534144000000

2534144000000
Not available
13
BOLT

09111-06019-000  

09111-06054-000
 0911106019000

Unit Price

14
BOLT, FENDER REAR

01107-06168-000   0110706168000

0110706168000
Not available
15
BEARING(40X47X12)
BEARING

09263-40001-000   0926340001000

0926340001000

Unit Price

16
STOPPER, CAM NO.1

25350-11400-000   2535011400000

2535011400000
Not available
17
SPRING

09443-09007-000   0944309007000

0944309007000

Unit Price

18
STOPPER,GEAR SHIFT CAM NO.2<br />STOPPER, CAM NO.2
STOPPER, GEAR SHIFT CAM NO.2
STOPPER, CAM NO.2

25351-30010-000   2535130010000

2535130010000

Unit Price

19
HOLDER,GEAR SHIFT CAM STOP SPR<br />HOLDER, SPRING
HOLDER, GEAR SHIFT CAM STOP SPR
HOLDER, SPRING

25354-30000-000   2535430000000

2535430000000

Unit Price

20
SPRING

09440-06018-000   0944006018000

0944006018000
Not available
21
SPARK PLUG GASKET<br />GASKET
SPARK PLUG GASKET
GASKET

09168-14004-000   0916814004000

0916814004000

Unit Price

22
SHAFT, GEAR SHIFTING

25510-11500-000   2551011500000

2551011500000
Not available
23
SPRING

09448-13008-000   0944813008000

0944813008000

Unit Price

24
E RING

08332-11078-000  

08332-11073-000
 0833211078000

Unit Price

25
SHAFT RETURN SPRING

09444-26012-000  

09444-26013-000
 0944426012000

Unit Price

26
SPACER(12X20X15.3)<br />SPACER
SPACER(12X20X15.3)
SPACER

09180-12068-000   0918012068000

0918012068000

Unit Price

27
STOPPER, GEAR SHIFT ARM

25671-01000-000  

25671-01011-000
 2567101000000

Unit Price

28
09285-12006<br />OIL SEAL
09285-12006
OIL SEAL

09285-12002-000  

0928512002000
Not available
29
DISCONTINUE
LEVER ASSY, GEAR SHIFTING

25600-11500-000   2560011500000

2560011500000
Not available
30
RUBBER,GEAR SHIFT PEDAL
RUBBER, GEAR SHIFT PEDAL

25652-16500-000  

25652-16510-000
 2565216500000

Unit Price

31
DISCONTINUE
SHAFT

25617-44101-000   2561744101000

2561744101000
Not available
32
ARM GEAR SHIFT LINK

25520-47000-000  

25520-47001-000
 2552047000000

Unit Price

33
BOLT, ADJUSTER

01107-06208-000   0110706208000

0110706208000
Not available
34
ROD, GEAR SHIFT LINK

25525-33200-000  

25525-12C10-000
 2552533200000

Unit Price

35
GR SHFT LINK ROD NUT<br />NUT, L
GR SHFT LINK ROD NUT
NUT, L

09140-06011-000   0914006011000

0914006011000

Unit Price

36
NUT FIG.42 (H-4) : E16, E18, E22,

08310-11068-000   0831011068000

0831011068000
Not available
37
TERMINAL BASE ASSY, GEAR SHIFT

37720-33200-000  

37720-45100-000
 3772033200000

Unit Price

37
DISCONTINUE<br />BODY, SWITCH
DISCONTINUE
BODY, SWITCH

37720-44600-000   3772044600000

3772044600000
Not available
38
O RING

09280-26003-000  

0928026003000
Not available
39
SCREW

02112-05208-000  

02112-75207-000
 0211205208000

Unit Price

40
WASHER, LOCK

08321-21058-000  

08321-0105A-000
 0832121058000

Unit Price

41
LOCK WASHER

08322-21058-000   0832221058000

0832221058000
Not available
42
K S PAWL ROLLER<br />CONTACT
K S PAWL ROLLER
CONTACT

09209-05011-000   0920905011000

0920905011000

Unit Price

43
K S PAWL SPRING<br />SPRING
K S PAWL SPRING
SPRING

09440-04010-000   0944004010000

0944004010000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki of GSX. Let us know if you have any questions.

Genuine parts for Suzuki 250 GSX 1982
