REAR BRAKE

FRONT FORK LEFT DAMPER FOR SUZUKI GSX 250 1982

FRONT FORK (MODEL Z / D E24, GSX250SZ E24)

OUTER TUBE RH

51130-11500-000 5113011500000

Not available

OUTER TUBE LH

51140-11500-000 5114011500000

Not available

BUSH, GUIDE
GUIDE BUSH

51152-11420-000 5115211420000

$27,97

Unit Price

SPACER, OIL SEAL
SPACE, SEAL

51168-44030-000 5116844030000

$9,97

Unit Price

.OIL SEAL

51153-37310-000 5115337310000

Not available

RING, OIL SEAL STOPPER

51156-33130-000

51156-02B00-000

$10,97

Unit Price

DISCONTINUE
RING, BACK UP

51158-11420-000 5115811420000

Not available

DUST SEAL

51571-37310-000 5157137310000

$35,97

Unit Price

.RING, OIL SEAL STOPPER

51156-11420-000 5115611420000

Not available

BOLT(8X27)
BOLT

51147-48130-000 5114748130000

$6,97

Unit Price

DUST SEAL

51571-37310-000 5157137310000

$35,97

Unit Price

BOLT(8X27)
BOLT

51147-48130-000 5114748130000

$6,97

Unit Price

GASKET

51148-31030-000

51148-36011-000

$5,97

Unit Price

GASKET

51148-31030-000

51148-36011-000

$5,97

Unit Price

PIECE, OIL LOCK
PIECE, OIL COCK

51195-48000-000 5119548000000

$19,97

Unit Price

BUSH
PISTON

51121-11420-000 5112111420000

$27,97

Unit Price

.HOLDER, AXLE

51132-44040-291 5113244040291

Not available

WASHER

08322-21088-000

08322-01087-000

$2,97

Unit Price

INNER TUBE

51110-11420-000 5111011420000

Not available

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$2,97

Unit Price

CYLINDER

51146-44110-000 5114644110000

Not available

NUT

08310-12088-000

08310-00087-000

$2,97

Unit Price

DISCONTINUE
SPRING, REVBOUND

51177-11420-000 5117711420000

Not available

RING PISTON

51196-33130-000 5119633130000

$14,97

Unit Price

RING, PISTON

51123-11420-000 5112311420000

Not available

SPRING

51171-11500-000 5117111500000

Not available

DISCONTINUE
PIECE, OIL LOCK

51195-11420-000 5119511420000

Not available

O RING

51181-31030-000 5118131030000

$6,97

Unit Price

DAMPER ASSY, RH

51103-11500-000 5110311500000

Not available

DISCONTINUE
BULB, OIL LOCK PIECE

51125-11420-000 5112511420000

Not available

BUSH
PISTON

51121-11420-000 5112111420000

$27,97

Unit Price

BOLT

51351-33130-000 5135133130000

Not available

..BOLT

01107-06088-000 0110706088000

Not available

INNER TUBE

51120-44420-000 5112044420000

Not available

GASKET, DRAIN, PLUG
GASKET

51183-31030-000 5118331030000

$7,97

Unit Price

DAMPER ASSY, LH

51104-11520-000 5110411520000

Not available

CYLINDER

51194-11420-000 5119411420000

Not available

DISCONTINUE
SPRING, REVBOUND

51177-11420-000 5117711420000

Not available

RING, PISTON

51196-33130-000 5119633130000

$14,97

Unit Price

SPRING

51171-11500-000 5117111500000

Not available

O RING

51181-31030-000 5118131030000

$6,97

Unit Price

BOLT

51351-33130-000 5135133130000

Not available

..BOLT

01107-06088-000 0110706088000

Not available

GASKET, DRAIN, PLUG
GASKET

51183-31030-000 5118331030000

$7,97

Unit Price

BOLT

51797-11420-000

07130-05167-000

$3,97

Unit Price

BOLT

51796-11420-000

07110-06167-000

$4,97

Unit Price

DISCONTINUE
CAP

51779-11420-000 5177911420000

Not available

DISCONTINUE
SCREW

51778-11420-000 5177811420000

Not available

MODULATOR PLUNGER SET

51700-11810-000 5170011810000

Not available

MODULATOR BULB SET

51700-11821-000 5170011821000

Not available

O-RING D:2.4 ID:15.8

51799-11420-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

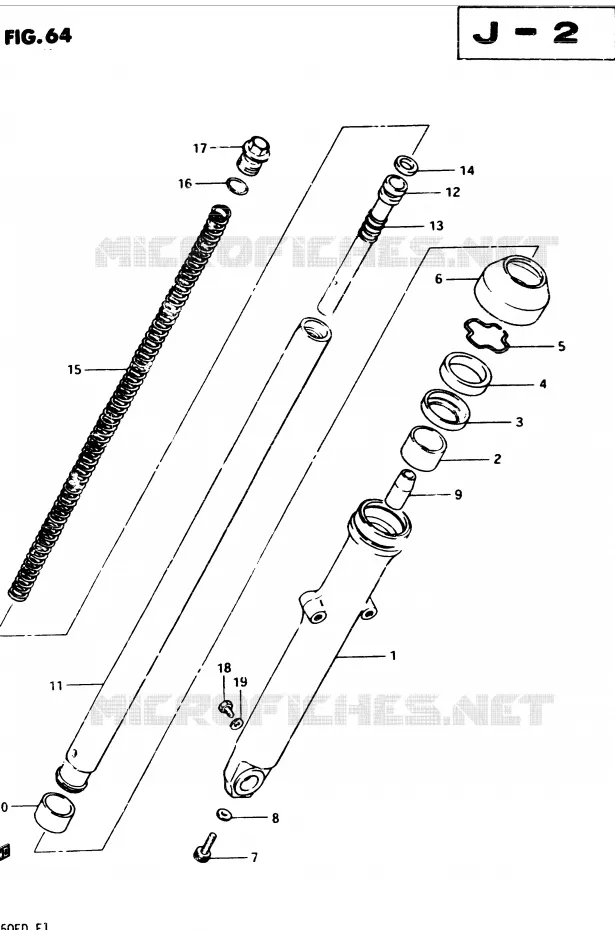

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK LEFT DAMPER of your Suzuki of GSX. Let us know if you have any questions.
