TRUNK (MODEL V) COLOR : F9S = 33J(BLACK),1HU(PURPLE)

TRUNK INSTALLATION PARTS FOR SUZUKI GSX 250 1992

FAIRING (MODEL M 19A) REFER TO FIG.42 (H-3) FOR MODEL M 0JW

Item numbers

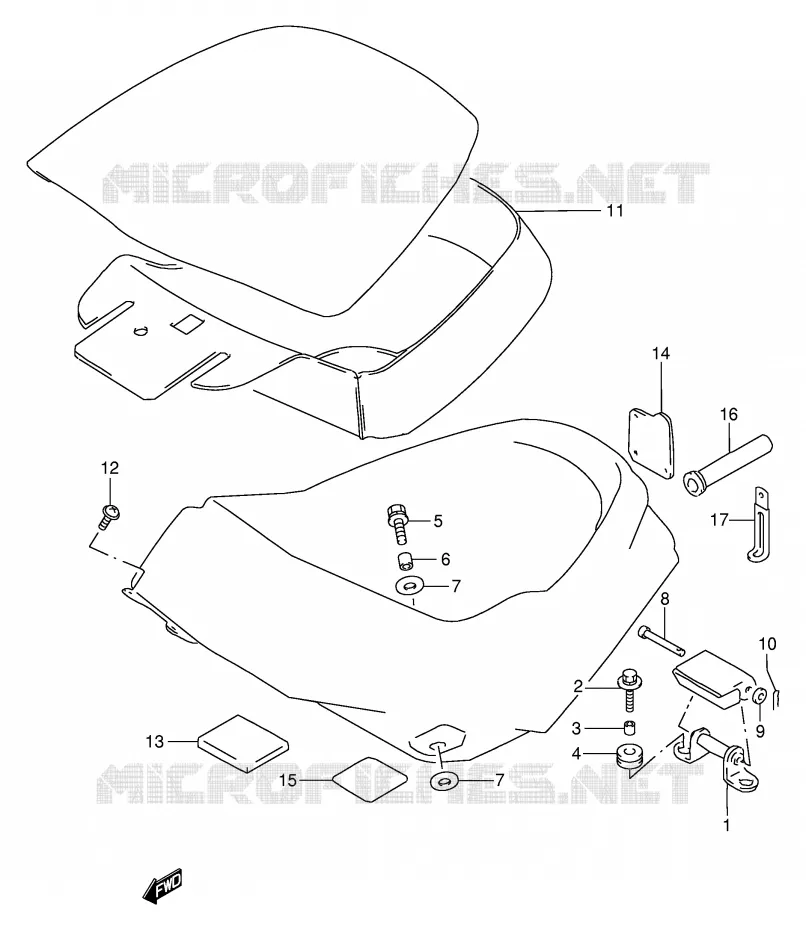

TRUNK INSTALLATION PARTS Suzuki MOTO 250 GSX 1992 GSX250FN(E24)

1

HOLDER, TRUNK

93330-24D00-000 9333024D00000

Not available

2

BOLT (6X20)

09118-06045-000 0911806045000

Not available

3

SPACER, 6.5X10X7

09180-06263-000

09180-06283-000

$3,97

Unit Price

4

CUSHION

09320-09021-000

09320-09502-000

$7,97

Unit Price

5

SCREW (6X20)

09136-06109-000 0913606109000

Not available

6

SPACER(6.1X8X7)
SPACER

09180-06247-000 0918006247000

$4,97

Unit Price

7

DISCONTINUE
CUSHION, TRUNK CENTER

94639-20C00-000 9463920C00000

Not available

8

PIN

09200-06067-000 0920006067000

Not available

9

WASHER

08322-01063-000

08322-0106A-000

$3,97

Unit Price

10

SNAP PIN

09385-05004-000 0938505004000

Not available

11

MAT, TRUNK

93410-24D10-000 9341024D10000

Not available

12

SCREW(6X16)
SCREW (6X12)

09136-06061-000 0913606061000

$4,97

Unit Price

13

CUSHION, BATTERY

93118-24D00-000 9311824D00000

Not available

14

PLATE, HOLE

93161-24D00-000 9316124D00000

Not available

15

TAPE, FRAME HEAD COVER
PROTECTOR, SHEET

47358-38A00-000 4735838A00000

$14,97

Unit Price

16

GROMMET

36621-24D00-000 3662124D00000

Not available

17

CLAMP(L:65)

09404-05404-000

09404-06431-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRUNK INSTALLATION PARTS of your Suzuki of GSX. Let us know if you have any questions.
