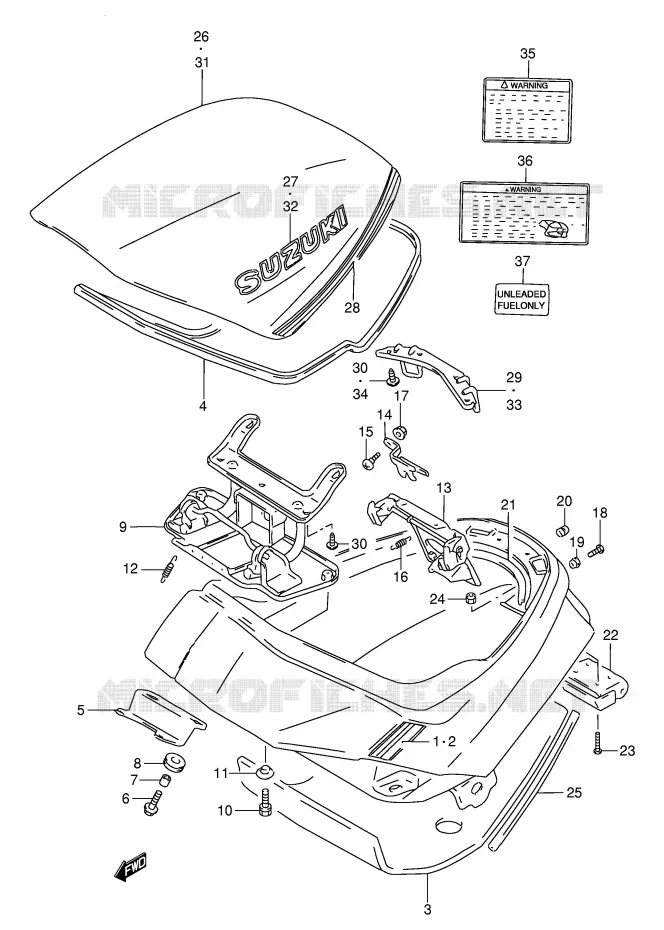

TRUNK (MODEL M) FOR SUZUKI GSX 250 1992

TRUNK (MODEL N) REFER TO FIG.39B(G- 7) FOR MODEL P/R/T

Item numbers

TAPE, BODY TRUNK RH

68235-24D00-0VV 6823524D000VV

Not available

TAPE, BODY TRUNK LH

68245-24D00-0VV 6824524D000VV

Not available

SEAT, TRUNK OUTER

93115-24D01-000 9311524D01000

Not available

MOLDING, TRUNK

93131-24D01-000 9313124D01000

Not available

PLATE, TRUNK FRONT

93136-24D00-000 9313624D00000

Not available

BOLT

09118-06034-000 0911806034000

Not available

SPACER (6.3X9.1X11.5)

09180-06138-000 0918006138000

Not available

CUSHION (8.5X20X8)

09320-08021-000

09320-08510-000

$4,97

Unit Price

HINGE, TRUNK FRONT

93140-24D01-000 9314024D01000

Not available

BOLT

01570-06167-000 0157006167000

$4,97

Unit Price

WASHER

09169-06051-000

09169-06045-000

$2,97

Unit Price

SPRING

09443-11026-000 0944311026000

Not available

CLAMP, TRUNK REAR

93310-24D01-000 9331024D01000

Not available

LOCK, CLAMP

93320-24D00-000 9332024D00000

Not available

SCREW
BOLT

09139-05038-000 0913905038000

$3,97

Unit Price

SPRING

09443-06082-000 0944306082000

Not available

NUT

08319-31058-000 0831931058000

Not available

SCREW

02142-05124-000

02142-0512A-000

$2,97

Unit Price

WASHER

09169-05019-000 0916905019000

$4,97

Unit Price

CAP(OD:12)
CAP

09250-08013-000 0925008013000

$3,97

Unit Price

MOLDING, TRUNK INNER

93131-24D10-000 9313124D10000

Not available

HINGE, TRUNK REAR

93135-24D00-000 9313524D00000

Not available

SCREW

02142-05164-000

02142-0516B-000

$3,97

Unit Price

NUT

08319-21057-000 0831921057000

$2,97

Unit Price

CUSHION, TRUNK OUTER

93117-24D00-000 9311724D00000

Not available

LID, TRUNK (WHITE)

93210-24820-0JW 93210248200JW

Not available

EMBLEM, "SUZUKI" (SILVER)

68111-24D00-20H 6811124D0020H

Not available

TAPE, LID TRUNK

68115-24D01-0VV 6811524D010VV

Not available

HOOK, TRUNK LID

95440-24D00-000 9544024D00000

Not available

SCREW

03241-15125-000

03241-1512B-000

$3,97

Unit Price

LID, TRUNK (RED)

93210-24810-19A 932102481019A

Not available

EMBLEM, "SUZUKI" (BROWN)

68111-24D00-29F 6811124D0029F

Not available

HOOK, TRUNK LID

95440-24D00-000 9544024D00000

Not available

SCREW

03241-15125-000

03241-1512B-000

$3,97

Unit Price

LABEL, GENERAL WARNIN

68319-40C00-000

68319-33E02-000

$16,97

Unit Price

LABEL, WARNING TRUNK

68611-24D20-000 6861124D20000

Not available

LABEL, CAUTION FUEL

86932-73060-000 8693273060000

Not available

99x

TRUNK ASSY (RED)

93100-24D01-19A 9310024D0119A

Not available

99x

TRUNK ASSY (WHITE)

93100-24D10-0JW 9310024D100JW

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRUNK (MODEL M) of your Suzuki of GSX. Let us know if you have any questions.
