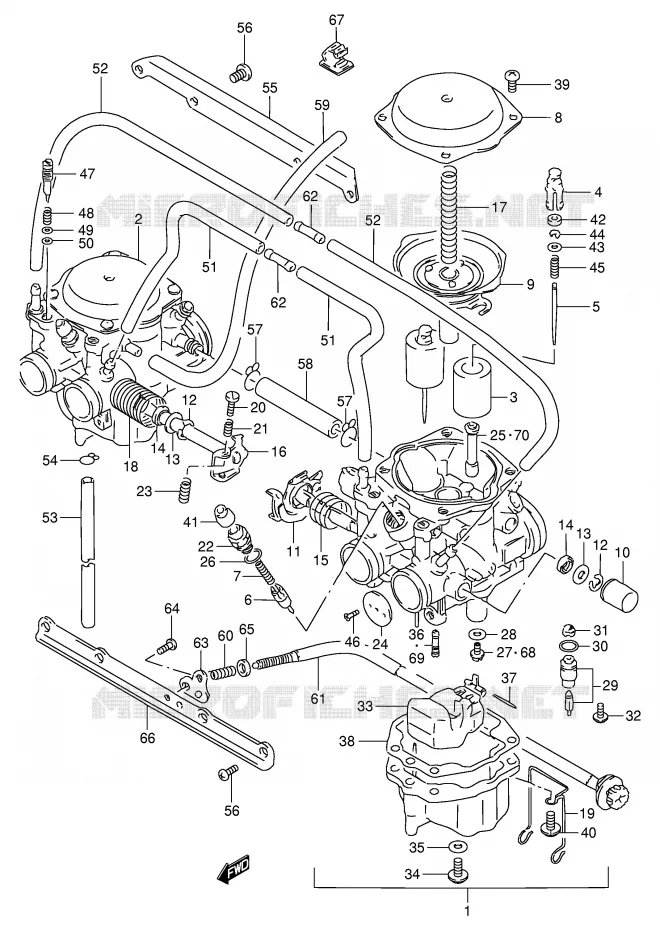

CARBURETOR FOR SUZUKI GSX 250 1993

AIR FILTER

Item numbers

CARBURETOR ASSY, LH

13201-24D01-000 1320124D01000

Not available

CARBURETOR ASSY, RH

13202-24D01-000 1320224D01000

Not available

VALVE, PISTON

13551-34A31-000 1355134A31000

Not available

HOLDER

13511-38400-000 1351138400000

Not available

NEEDLE, JET (5D52-3)

13383-24D00-000 1338324D00000

Not available

PLUNGER

13411-24D00-000 1341124D00000

$30,97

Unit Price

DISCONTINUE

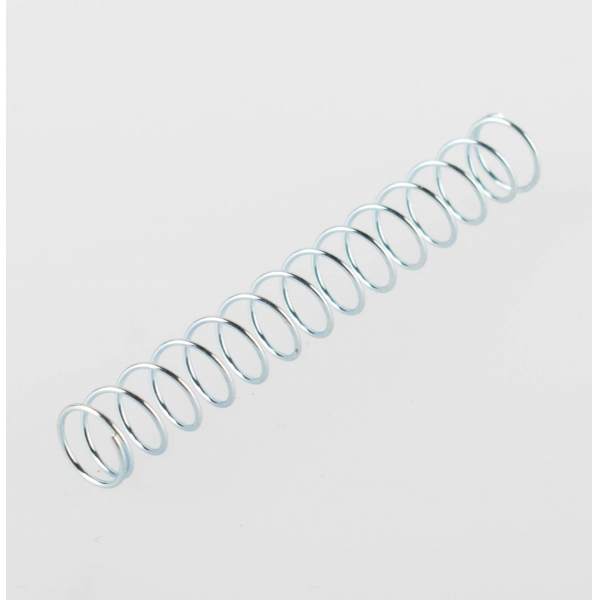

SPRING

13417-20A02-000 1341720A02000

Not available

COVER, DIAPHRAGM

13502-34A00-000 1350234A00000

Not available

DIAPHRAGM ASSY

13500-34A00-000 1350034A00000

Not available

CAP

13578-47070-000 1357847070000

$9,97

Unit Price

SHAFT, THROTTLE LH

13550-05C00-000 1355005C00000

Not available

E RING

13617-44080-000 1361744080000

$5,97

Unit Price

GASKET, THROTTLE SHAFT
GASKET

13557-47070-000 1355747070000

$7,97

Unit Price

SEAL, THRO SHAFT

13651-51010-000

13651-51011-000

$6,97

Unit Price

SPRING

13573-38401-000 1357338401000

Not available

SHAFT, THROTTLE RH

13550-05C10-000 1355005C10000

Not available

SPRING

13573-34A10-000 1357334A10000

Not available

SPRING

13573-34A01-000 1357334A01000

Not available

CLIP

13692-24D00-000 1369224D00000

Not available

SCREW, THROTTLE STOP

13267-52012-000 1326752012000

Not available

SPRING

13271-05A10-000 1327105A10000

Not available

HOLDER, GUIDE

13418-24D00-000 1341824D00000

Not available

SPRING, THROTTLE SCREW

13268-96110-000

13268-96111-000

$6,97

Unit Price

VALVE, THROTTLE (85)

13551-24D00-000 1355124D00000

Not available

JET, NEEDLE (O-1)

09494-00707-000 0949400707000

Not available

O RING

13278-47090-000

13278-47091-000

$3,97

Unit Price

JET, MAIN (90)

09491-90007-000 0949190007000

$22,97

Unit Price

WASHER

13332-44080-000

13382-03110-000

$4,97

Unit Price

VALVE ASSY, NEEDLE

13370-24D00-000 1337024D00000

Not available

O RING, NEEDLE VALVE SEAT

13374-44080-000

13374-35C00-000

$7,97

Unit Price

FILTER

13376-84110-000

13376-19F00-000

$15,97

Unit Price

SCREW

13602-43410-000 1360243410000

$4,97

Unit Price

DISCONTINUE
FLOAT

13250-43410-000 1325043410000

Not available

PLUG, DRAIN

13247-24D00-000 1324724D00000

Not available

GASKET

13246-44080-000 1324644080000

$6,97

Unit Price

JET, PILOT (30)

09492-30010-000 0949230010000

$25,97

Unit Price

PIN, FLOAT

13254-20010-000 1325420010000

$5,97

Unit Price

GASKET

13251-05C00-000 1325105C00000

$20,97

Unit Price

SCREW, 4X8
SCREW

02112-04087-000 0211204087000

$2,97

Unit Price

SCREW

13601-04148-000 1360104148000

$4,97

Unit Price

CAP

13681-98010-000 1368198010000

Not available

RING
RING, JET NEEDLE

13387-47010-000 1338747010000

$11,97

Unit Price

WASHER

13382-44030-000 1338244030000

$6,97

Unit Price

CLIP
CLIP, NEEDLE

13394-10010-000 1339410010000

$6,97

Unit Price

SPRING

13388-44030-000 1338844030000

$10,97

Unit Price

SCREW

13604-44080-000 1360444080000

$6,97

Unit Price

SCREW, PILOT

13279-47080-000

13279-47070-000

$19,97

Unit Price

SPRING

13268-47070-000 1326847070000

$6,97

Unit Price

WASHER

13291-29900-000 1329129900000

$2,97

Unit Price

O RING, PILOT AIR SCREW

13295-29900-000

13295-29901-000

$5,97

Unit Price

HOSE(5X9X600)

13687-17C00-000

09352-50006-600

$10,97

Unit Price

HOSE(5X9X600)

13687-17C00-000

09352-50006-600

$10,97

Unit Price

HOSE, 3X5X600

09351-30503-600

09351-30001-600

$8,97

Unit Price

DISCONTINUE
CLIP

13529-98010-000 1352998010000

Not available

PLATE, UPPER

13628-05C00-000 1362805C00000

Not available

SCREW

02112-05123-000

02112-0512A-000

$2,97

Unit Price

CLIP, FUELHOSE

09401-11402-000

09401-11403-000

$3,97

Unit Price

HOSE, 7X12X600
HOSE

09355-70125-600

Not available

HOSE
HOSE (6.5X11.5X600)

09354-65113-600

Not available

SPRING

13271-24D00-000 1327124D00000

$9,97

Unit Price

ADJUSTER ASSY

13680-24D00-000 1368024D00000

Not available

NIPPLE

13685-24D00-000 1368524D00000

Not available

BRACKET, ADJUSTER

13621-34A00-000 1362134A00000

Not available

SCREW

02112-05083-000

02112-0508A-000

$3,97

Unit Price

WASHER, STARTER SHAFT
WASHER

13615-43010-000 1361543010000

$4,97

Unit Price

PLATE, LOWER

13628-05C10-000 1362805C10000

Not available

CLAMP

09403-14311-000 0940314311000

$9,97

Unit Price

DISCONTINUE
CLAMP

09408-00098-000 0940800098000

Not available

JET, MAIN
JET, MAIN (112.5)

09491-22015-000 0949122015000

$22,97

Unit Price

JET, MAIN
JET, MAIN (110)

09491-22016-000 0949122016000

$22,97

Unit Price

JET, MAIN
JET, MAIN (115)

09491-23011-000 0949123011000

$22,97

Unit Price

JET, PILOT (32.5)

09492-32006-000 0949232006000

$22,97

Unit Price

JET, NEEDLE (0-2)

09494-00508-000 0949400508000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of GSX. Let us know if you have any questions.
