RADIATOR HOSE - EXPANSION TANK

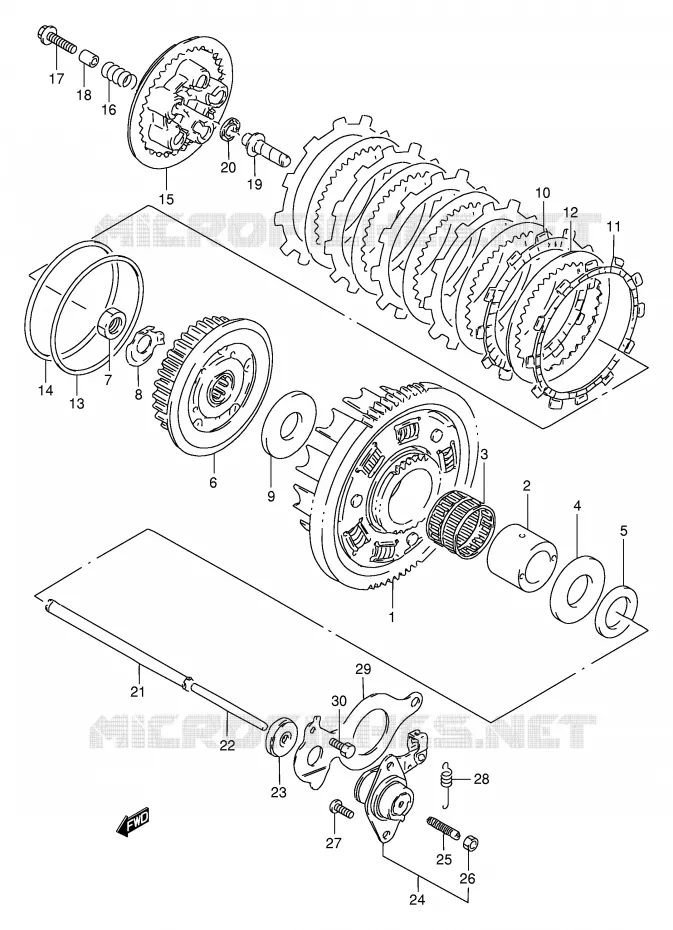

CLUTCH FOR SUZUKI GSX 250 1993

TRANSMISSION (MODEL M) REFER TO FIG.19A(D-5) FOR MODEL N/P/R/T/V

Item numbers

GEAR ASSY, RRI (NT80/27)

21200-05C03-000 2120005C03000

Not available

GEAR ASSY, RRI (NT80/27)

21200-05C04-000 2120005C04000

Not available

SPACER

21251-43400-000 2125143400000

Not available

BEARING

09263-40004-000 0926340004000

Not available

WASHER

08211-25505-000 0821125505000

Not available

WASHER (25X41X3)

09160-25009-000 0916025009000

$9,97

Unit Price

HUB, CLUTCH SLEEVE

21410-06C01-000 2141006C01000

Not available

SPR MOUNT DRUM NUT
NUT

09140-16005-000 0914016005000

$6,97

Unit Price

WASHER, CLUTCH SLEEVE HUB

21413-06C00-000 2141306C00000

Not available

WASHER (20X53.5X2)

09160-20039-000 0916020039000

Not available

PLATE, CLUTCH DRIVE(T:3.0)
PLATE, CLUTCH DRIVE

21441-13A01-000 2144113A01000

$20,97

Unit Price

PLATE, CLUTCH DRIVE
PLATE, CLUTCH DRIVE NO.2

21442-32C01-000 2144232C01000

$24,97

Unit Price

PLATE, CLUTCH DRIVEN
PLATE, CLUTCH DRIVEN (T:1.6)

21451-19A00-000 2145119A00000

$11,97

Unit Price

SEAT, WAVE WASHER

21471-32C00-000 2147132C00000

$15,97

Unit Price

WAVE WASHER

09164-94001-000 0916494001000

Not available

DISC, CLUTCH PRESSURE

21462-06C00-000 2146206C00000

$36,97

Unit Price

SPRING CLUTCH
SPRING

09440-15013-000 0944015013000

$7,97

Unit Price

BOLT (5X35)

09116-05018-000 0911605018000

Not available

SPACER (3.5X9.5X13)

09180-05037-000 0918005037000

Not available

SPACER (5.5X9.5X13)

09180-05055-000 0918005055000

Not available

PIECE, CLUTCH PUSH

23121-04A00-000 2312104A00000

Not available

DISCONTINUE
PIECE, CLUTCH PUSH

23121-39101-000 2312139101000

Not available

RD SFT ARM PIN BRG
BEARING (10X22X2.8)

09263-10002-000 0926310002000

$14,97

Unit Price

ROD, CLUTCH PUSH

23110-38400-000 2311038400000

Not available

ROD, CLUTCH PUSH, L
ROD, CLUTCH PUSH LH

23111-31301-000 2311131301000

$23,97

Unit Price

SEAL, OIL(6X34X7.5)
OIL SEAL (6X34X7.5)

09285-06018-000 0928506018000

$22,97

Unit Price

SCREW ASSY, CLUTCH RELEASE

23200-38400-000 2320038400000

Not available

SCREW

09134-06010-000 0913406010000

$5,97

Unit Price

NUT

08310-00067-000 0831000067000

$3,97

Unit Price

SCREW

02112-06123-000

02112-3612A-000

$3,97

Unit Price

SCREW

02112-06128-000

02112-06127-000

$3,97

Unit Price

DISCONTINUE
SPRING

09443-08047-000 0944308047000

Not available

RETAINER, PUSH ROD OIL SEAL

23117-38402-000 2311738402000

Not available

BOLT

01107-06127-000

01500-06127-000

$3,97

Unit Price

BOLT

01500-06123-000

01500-0612A-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki of GSX. Let us know if you have any questions.
