INDICATORS (MODEL N / P / R / T / V)

TAIL LIGHT (MODEL M) FOR SUZUKI GSX 250 1996

TAIL LIGHT (MODEL N / P / R / T / V)

Item numbers

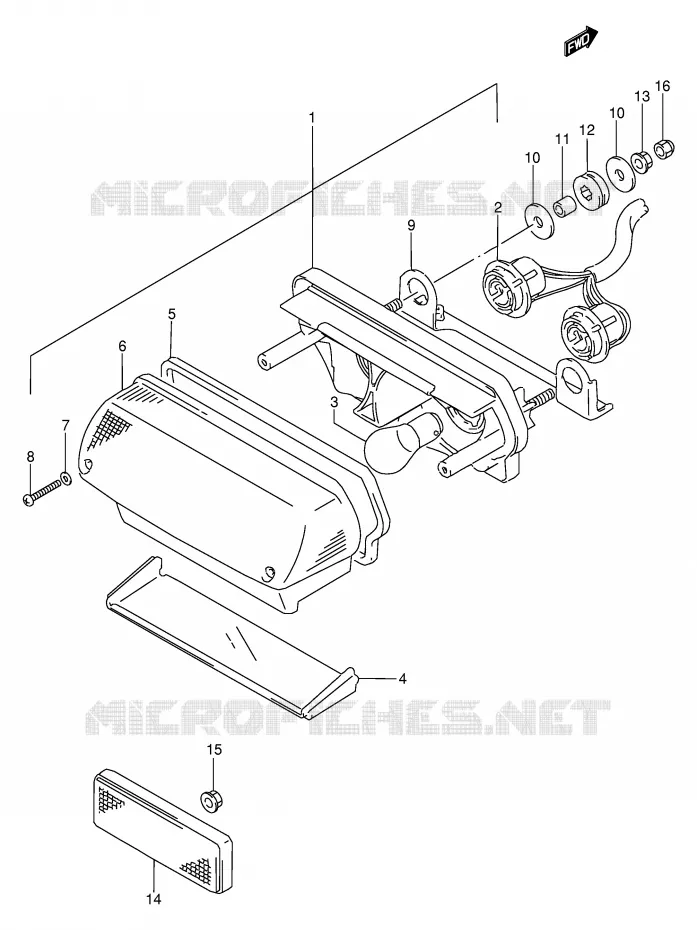

TAIL LIGHT (MODEL M) Suzuki MOTO 250 GSX 1996 GSX250FT(E24)
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
1
LAMP ASSY, REAR COMBINATION

35710-24D00-000   3571024D00000

3571024D00000
Not available
2
SOCKET ASSY

35718-24D00-000   3571824D00000

3571824D00000
Not available
3
BULB(12V3.4W G20)
BULB (12V, 18/5W)

09471-12119-000   0947112119000

0947112119000

Unit Price

4
LENS, LICENSE

35912-24D00-000   3591224D00000

3591224D00000
Not available
5
GASKET, LENS

35713-24D00-000   3571324D00000

3571324D00000
Not available
6
LENS

35712-24D00-000   3571224D00000

3571224D00000
Not available
7
WASHER
WASHER

35128-37B00-000   3512837B00000

3512837B00000

Unit Price

8
SCREW

03511-04203-000  

03511-0420B-000
 0351104203000

Unit Price

9
BRACKET, REAR COMBINATION LAMP

35730-24D00-000   3573024D00000

3573024D00000
Not available
10
WASHER 6.5X10X1.2

09160-06086-000  

09160-06077-000
 0916006086000

Unit Price

11
SPACER 6.5 X 9 X 8.5

09180-06152-000  

09180-06262-000
 0918006152000

Unit Price

12
RR COMB LAMP CUSHION<br />CUSHION
RR COMB LAMP CUSHION
CUSHION

09320-09009-000   0932009009000

0932009009000

Unit Price

13
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

14
DISCONTINUE

35970-00A21-000  

3597000A21000
Not available
15
NUT

08316-20053-000  

08316-2005A-000
 0831620053000

Unit Price

16
NUT

08313-10063-000  

08313-1006B-000
 0831310063000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT (MODEL M) of your Suzuki of GSX. Let us know if you have any questions.
