TAIL LIGHT (MODEL M) REFER TO FIG.29A(E-8) FOR MODEL N/P/R/T/V

TAIL LIGHT (MODEL N / P / R / T / V) FOR SUZUKI GSX 250 1996

WIRING HARNESS

Item numbers
TAIL LIGHT (MODEL N/P/R/T/V) Suzuki MOTO 250 GSX 1996 GSX250FT(E24)
1
2
3
4
5
6
6
7
8
8
9
9
10
10
11
11
12
13
14
14
1

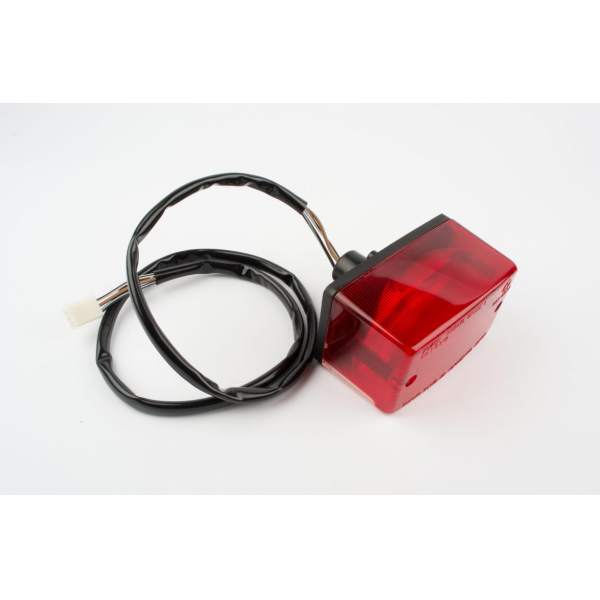

LAMP ASSY, REAR COMBINATION
LAMP ASSY, REAR COMBINATION

35710-13760-999   3571013760999

3571013760999
Not available
2
LENS

35712-36A70-000   3571236A70000

3571236A70000
Not available
3
GASKET

35713-13600-000   3571313600000

3571313600000
Not available
4
SCREW<br />TAPPING SCREW
SCREW
TAPPING SCREW

03211-04207-000   0321104207000

0321104207000

Unit Price

5
GASKET
GASKET

35627-43010-000   3562743010000

3562743010000

Unit Price

6
BULB(12V1.4W G30)<br />BULB (12V 21/5W)
BULB(12V1.4W G30)
BULB (12V 21/5W)

09471-12083-000   0947112083000

0947112083000

Unit Price

7
BRACKET, REAR COMBINATION

35730-24D60-000   3573024D60000

3573024D60000
Not available
8
03511-0616B
SCREW

03511-06163-000   0351106163000

0351106163000
Not available
8
SCREW

03511-06166-000   0351106166000

0351106166000
Not available
9
BOLT

01107-06165-000  

01500-06163-000
 0110706165000

Unit Price

10
WASHER 6.5X10X1.2<br />WASHER (6.5X20X1.2)
WASHER 6.5X10X1.2
WASHER (6.5X20X1.2)

09160-06077-000   0916006077000

0916006077000

Unit Price

11
08310-0006A
NUT

08310-00063-000  

0831000063000
Not available
12
BRACKET, LICENSE PLATE

35927-24D60-000   3592724D60000

3592724D60000
Not available
13
REFLECTOR ASSY,RR<br />REFLEX REFLECTOR, REAR
REFLECTOR ASSY, RR
REFLEX REFLECTOR, REAR

35970-24D60-000   3597024D60000

3597024D60000

Unit Price

14
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT (MODEL N/P/R/T/V) of your Suzuki of GSX. Let us know if you have any questions.
