Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

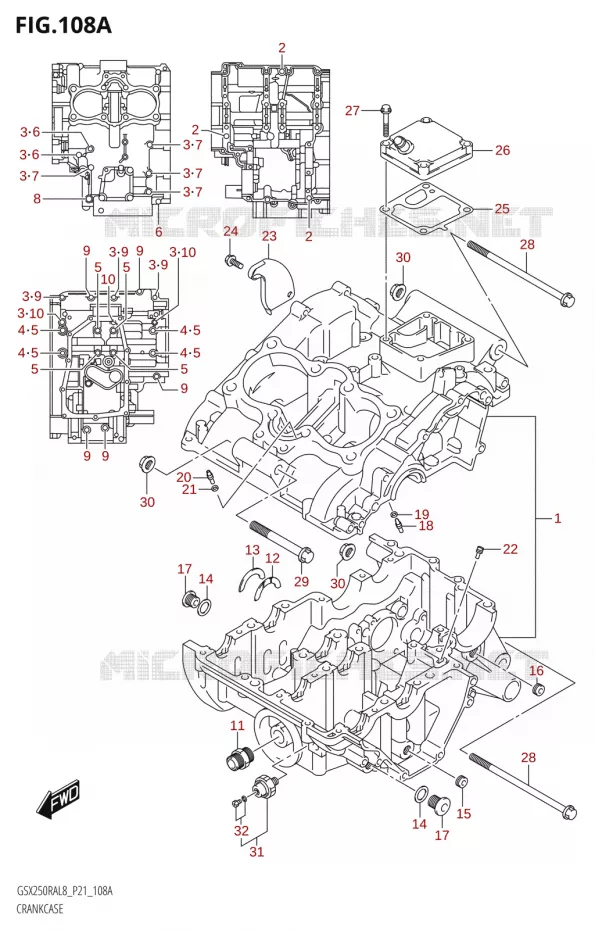

CRANKCASE FOR SUZUKI INAZUMA 250 2018

CRANKCASE COVER

Item numbers

CRANKCASE SET

11301-48810-000 1130148810000

Not available

PIN 11X16
.PIN

04211-11169-000 0421111169000

$2,97

Unit Price

.GASKET(5.8X13X1.8)

09168-06L04-000 0916806L04000

$1,97

Unit Price

.GASKET(8.2X14X1)

09168-08035-000 0916808035000

$1,97

Unit Price

.BOLT(8X105)

09103-08554-000 0910308554000

$6,97

Unit Price

.BOLT

01547-0635A-000 015470635A000

$3,97

Unit Price

.BOLT

01547-0655A-000 015470655A000

$3,97

Unit Price

.BOLT

01550-0855A-000 015500855A000

$4,97

Unit Price

.BOLT

01547-0635A-000 015470635A000

$3,97

Unit Price

.BOLT

01547-0690A-000 015470690A000

$4,97

Unit Price

.UNION, OIL FILTER STAND

16591-48H00-000 1659148H00000

$5,97

Unit Price

.BEARING, CRANK THRUST(YELLOW)

12228-17E00-0E0 1222817E000E0

$13,97

Unit Price

.BEARING, CRANK THRUST(WHITE)

12228-17E00-0F0 1222817E000F0

$11,97

Unit Price

BEARING, CRANK THRUST(ORANGE)
.BEARING, CRANK THRUST

12228-17E00-0G0 1222817E000G0

$11,97

Unit Price

BEARING, CRANK THRUST(PINK)
.BEARING, CRANK THRUST

12228-17E00-0H0 1222817E000H0

$10,97

Unit Price

BEARING, CRANK THRUST(BROWN)
.BEARING, CRANK THRUST

12228-17E00-0J0 1222817E000J0

$11,97

Unit Price

BEARING, CRANK THRUST(PURPLE)
.BEARING, CRANK THRUST

12228-17E00-0K0 1222817E000K0

$11,97

Unit Price

.BEARING, CRANK THRUST(NO COLOR)

12228-17E00-0L0 1222817E000L0

$11,97

Unit Price

GASKET(13.8X18.
GASKET(13.8X18.8X4.8)

09168-14L01-000 0916814L01000

$3,97

Unit Price

PLUG, OIL GALLERY
PLUG, OIL GALLERY(1/4PT, H:7.5)

11322-48H00-000 1132248H00000

$4,97

Unit Price

PLUG, OIL GALLERY
PLUG, OIL GALLERY(1/4PT, H:7.5)

11322-48H00-000 1132248H00000

$4,97

Unit Price

PLUG(14X12)

09248-14013-000 0924814013000

$6,97

Unit Price

JET, PISTON COOLING

11391-48H00-000

11390-48H00-000

$10,97

Unit Price

O RING
O-RING(D:1.2, ID:4)

09280-04004-000 0928004004000

$2,97

Unit Price

JET, OIL GALLERY CYLINDER

11329-48H00-000 1132948H00000

$4,97

Unit Price

O RING
O-RING(D:1.2, ID:4)

09280-04004-000 0928004004000

$2,97

Unit Price

JET, T/M COOLING

11313-48H00-000 1131348H00000

$4,97

Unit Price

PLATE, OIL SEPARATOR

11317-48H00-000 1131748H00000

$3,97

Unit Price

BOLT

01547-0612A-000 015470612A000

$3,97

Unit Price

GASKET, BREATHER COVER(NA)
GASKET, BREATHER COVER

11318-48H00-000 1131848H00000

$4,97

Unit Price

COVER, BREATHER

11330-48H01-000 1133048H01000

$17,97

Unit Price

BOLT

01547-0630A-000 015470630A000

$4,97

Unit Price

BOLT(10X155)

09103-10115-000 0910310115000

$20,97

Unit Price

BOLT(10X85)

09103-10445-000 0910310445000

$7,97

Unit Price

NUT

09159-10L06-000 0915910L06000

$2,97

Unit Price

SWITCH ASSY, OIL PRESSURE

37820-33D10-000

37820-33D11-000

$33,97

Unit Price

.BOLT, OIL PRESSURE SWITCH

37822-33D00-000 3782233D00000

$5,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Choose your Suzuki 250 2018 INAZUMA model
