LEVERS - HANDGRIPS

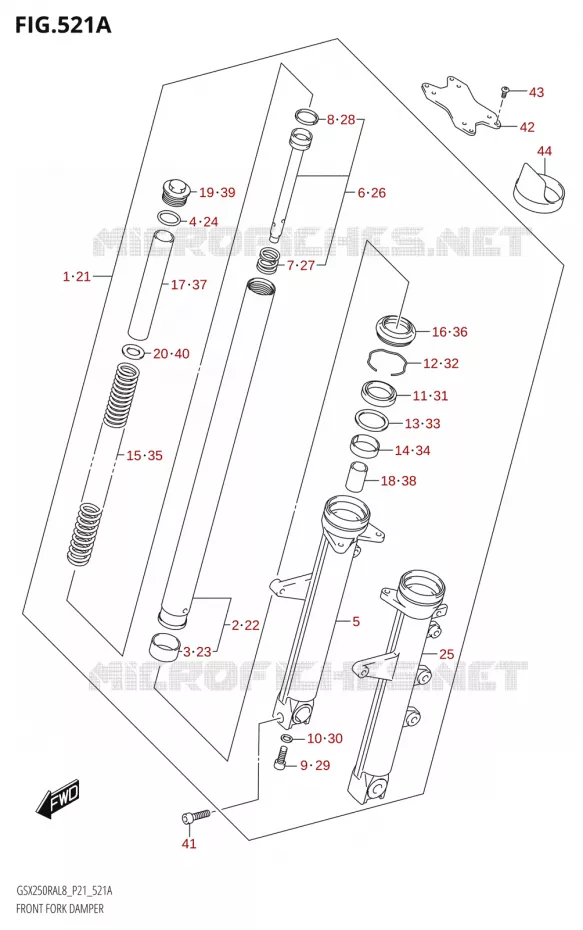

FRONT FORK FOR SUZUKI INAZUMA 250 2018

STEERING COLUMN

Item numbers

DAMPER ASSY, FRONT FORK RH

51103-20K00-000 5110320K00000

$1 312,97

Unit Price

.TUBE, INNER

51110-20K00-000 5111020K00000

$304,97

Unit Price

..PISTON

51121-01D00-000 5112101D00000

$15,97

Unit Price

.O-RING

51117-38260-000 5111738260000

$4,97

Unit Price

TUBE, OUTER
.TUBE, OUTER RH

51130-20K00-000 5113020K00000

$609,97

Unit Price

.CYLINDER

51146-20K00-000 5114620K00000

$94,97

Unit Price

..SPRING, REBOUND

51177-48H00-000 5117748H00000

$15,97

Unit Price

RING, PISTON
..RING

51196-16730-000 5119616730000

$14,97

Unit Price

.BOLT

51147-05H00-000 5114705H00000

$8,97

Unit Price

.GASKET

51148-41310-000 5114841310000

$3,97

Unit Price

.SEAL, OIL

51153-26F00-000 5115326F00000

$20,97

Unit Price

.RING, SNAP

51156-20K00-000 5115620K00000

$6,97

Unit Price

.WASHER

51158-48H00-000 5115848H00000

$3,97

Unit Price

.METAL, SLIDE

51167-01D00-000 5116701D00000

$18,97

Unit Price

.SPRING, MAIN

51171-20K00-000 5117120K00000

$78,97

Unit Price

.SEAL, DUST

51173-48H00-000 5117348H00000

$26,97

Unit Price

.SPACER

51176-48H10-000 5117648H10000

$9,97

Unit Price

.PIECE, OIL LOCK

51195-20K00-000 5119520K00000

$16,97

Unit Price

.CAP

51351-48H00-000 5135148H00000

$94,97

Unit Price

.WASHER

51356-48H00-000 5135648H00000

$8,97

Unit Price

DAMPER ASSY, L
DAMPER ASSY, FRONT FORK LH

51104-20K00-000 5110420K00000

$1 449,97

Unit Price

.TUBE, INNER

51110-20K00-000 5111020K00000

$304,97

Unit Price

..PISTON

51121-01D00-000 5112101D00000

$15,97

Unit Price

.O-RING

51117-38260-000 5111738260000

$4,97

Unit Price

.TUBE, OUTER LH

51140-20K00-000 5114020K00000

$666,97

Unit Price

.CYLINDER

51146-20K00-000 5114620K00000

$94,97

Unit Price

..SPRING, REBOUND

51177-48H00-000 5117748H00000

$15,97

Unit Price

RING, PISTON
..RING

51196-16730-000 5119616730000

$14,97

Unit Price

.BOLT

51147-05H00-000 5114705H00000

$8,97

Unit Price

.GASKET

51148-41310-000 5114841310000

$3,97

Unit Price

.SEAL, OIL

51153-26F00-000 5115326F00000

$20,97

Unit Price

.RING, SNAP

51156-20K00-000 5115620K00000

$6,97

Unit Price

.WASHER

51158-48H00-000 5115848H00000

$3,97

Unit Price

.METAL, SLIDE

51167-01D00-000 5116701D00000

$18,97

Unit Price

.SPRING, MAIN

51171-20K00-000 5117120K00000

$78,97

Unit Price

.SEAL, DUST

51173-48H00-000 5117348H00000

$26,97

Unit Price

.SPACER

51176-48H10-000 5117648H10000

$9,97

Unit Price

.PIECE, OIL LOCK

51195-20K00-000 5119520K00000

$16,97

Unit Price

.CAP

51351-48H00-000 5135148H00000

$94,97

Unit Price

.WASHER

51356-48H00-000 5135648H00000

$8,97

Unit Price

BOLT

51328-48H00-000 5132848H00000

$14,97

Unit Price

STABILIZER, FR
STABILIZER, FRONT

51471-48H00-000 5147148H00000

$40,97

Unit Price

SCREW
SCREW(6X16)

09139-06030-000 0913906030000

$5,97

Unit Price

PROTECTOR

51201-48H00-000 5120148H00000

$19,97

Unit Price
