TIMING

CARBURETOR (MODEL Y / K1) FOR SUZUKI INTRUDER 250 2002

CARBURETOR (MODEL K2 / K3 / K4)

Item numbers

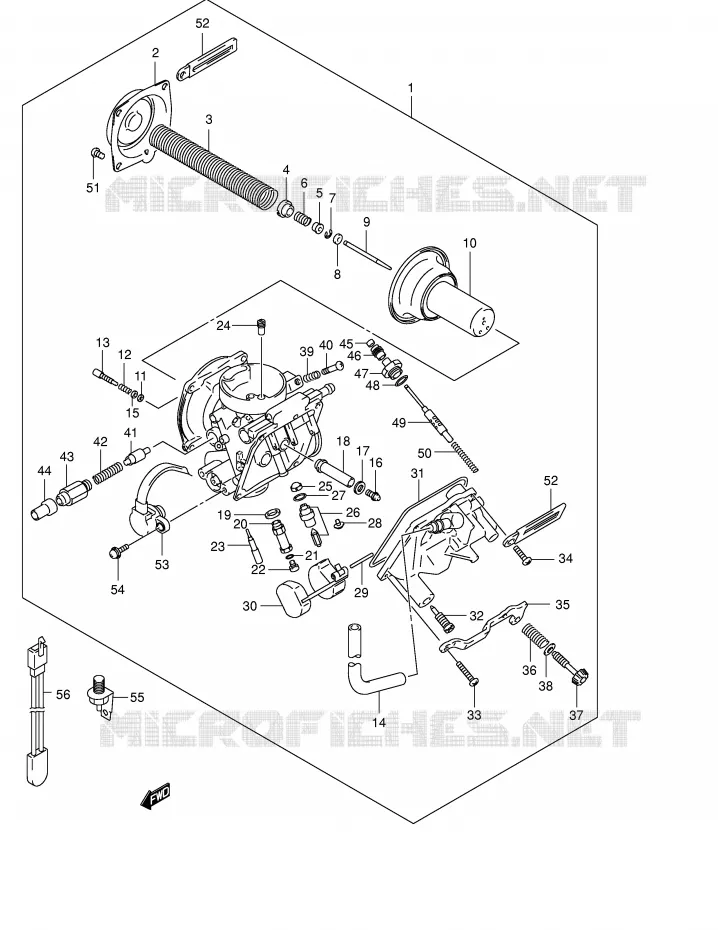

CARBURETOR (MODEL Y/K1) Suzuki MOTO 250 INTRUDER 2002 VL250K2(E2)
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
52
53
54
55
55
56
56
1
CARBURETOR ASSY

13200-27F10-000   1320027F10000

1320027F10000
Not available
1
CARBURETOR ASSY

13200-27F20-000   1320027F20000

1320027F20000
Not available
2
COVER, DIAPHRAGM

13502-26F00-000   1350226F00000

1350226F00000
Not available
3
SPRING

13503-26F00-000   1350326F00000

1350326F00000
Not available
4
SCREW

13602-26F00-000   1360226F00000

1360226F00000
Not available
5
RING

13382-20E20-000   1338220E20000

1338220E20000
Not available
6
SPRING

13388-20E20-000   1338820E20000

1338820E20000

Unit Price

7
CLIP<br />E RING
CLIP
E RING

13394-10010-000   1339410010000

1339410010000

Unit Price

8
RING

13387-20E20-000   1338720E20000

1338720E20000
Not available
9
NEEDLE, JET (4DM11-3)

13383-27F10-000   1338327F10000

1338327F10000
Not available
10
DIAPHRAGM ASSY

13500-26F00-000   1350026F00000

1350026F00000
Not available
11
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

12
SPRING

13494-09410-000   1349409410000

1349409410000

Unit Price

13
ADJUSTER (3.0)

13279-27F10-000   1327927F10000

1327927F10000
Not available
14
HOSE
HOSE

09354-65113-600  

0935465113600
Not available
15
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

16
SCREW

13605-05A10-000   1360505A10000

1360505A10000

Unit Price

17
WASHER
WASHER

13382-03110-000   1338203110000

1338203110000

Unit Price

18
JET, NEEDLE (0-0)

13349-27F10-000   1334927F10000

1334927F10000
Not available
19
GASKET
WASHER

13332-05A10-000   1333205A10000

1333205A10000

Unit Price

20
HOLDER

13244-26F00-000   1324426F00000

1324426F00000
Not available
21
PACKING, MAIN JET
PACKING

13386-04700-000   1338604700000

1338604700000

Unit Price

22
JET, MAIN (107.5)

13347-27F10-000   1334727F10000

1334727F10000
Not available
23
JET, PILOT (17.5)
JET, PILOT (17.5)

09492-17016-000   0949217016000

0949217016000

Unit Price

24
JET, PILOT AIR (135)

09492-26002-000   0949226002000

0949226002000
Not available
25
FILTER
FILTER

13376-19F00-000   1337619F00000

1337619F00000

Unit Price

26
VALVE ASSY, NEEDLE

13370-26F00-000   1337026F00000

1337026F00000
Not available
27
O RING,NEEDLE VALVE SEAT<br />O RING
O RING, NEEDLE VALVE SEAT
O RING

13374-35C00-000   1337435C00000

1337435C00000

Unit Price

28
SCREW
SCREW

13602-05A10-000   1360205A10000

1360205A10000

Unit Price

29
PIN, FLOAT
PIN

13254-20010-000   1325420010000

1325420010000

Unit Price

30
FLOAT ASSY

13250-26F00-000   1325026F00000

1325026F00000
Not available
31
O RING

13258-26F00-000   1325826F00000

1325826F00000
Not available
32
PLUG, DRAIN
PLUG, DRAIN

13247-02340-000   1324702340000

1324702340000

Unit Price

33
SCREW

02112-04163-000  

02112-0416A-000
 0211204163000

Unit Price

34
SCREW

13602-48B10-000   1360248B10000

1360248B10000

Unit Price

35
BRACKET

13627-26F00-000   1362726F00000

1362726F00000
Not available
36
SPRING, THROTTLE SCREW
SPRING

13268-37420-000   1326837420000

1326837420000

Unit Price

37
SCREW, ADJUST

13267-20E20-000   1326720E20000

1326720E20000

Unit Price

38
WASHER<br />PACKING
WASHER
PACKING

13386-09410-000   1338609410000

1338609410000

Unit Price

39
SPRING, STARTER SHAFT
SPRING

13434-30650-000   1343430650000

1343430650000

Unit Price

40
SCREW

13267-91F00-000   1326791F00000

1326791F00000
Not available
41
PLUNGER ASSY

13411-26F00-000   1341126F00000

1341126F00000
Not available
42
SPRING

13417-26F00-000   1341726F00000

1341726F00000
Not available
43
HOLDER, GUIDE

13418-26F00-000   1341826F00000

1341826F00000
Not available
44
CAP

13416-26F00-000   1341626F00000

1341626F00000

Unit Price

45
CAP

13495-09400-000   1349509400000

1349509400000

Unit Price

46
BOOT<br />CAP
BOOT
CAP

13499-44500-000   1349944500000

1349944500000

Unit Price

47
HOLDER, GUIDE

13496-26F00-000   1349626F00000

1349626F00000
Not available
48
O RING D:1.5 ID:8.5<br />O RING
O RING D:1.5 ID:8.5
O RING

09280-08014-000   0928008014000

0928008014000

Unit Price

49
PLUNGER

13493-26F00-000   1349326F00000

1349326F00000
Not available
50
SPRING

13222-60A10-000   1322260A10000

1322260A10000
Not available
51
SCREW

13602-48B00-000   1360248B00000

1360248B00000

Unit Price

52
PLATE

13671-14D00-000  

13671-14D01-000
 1367114D00000

Unit Price

53
SENSOR ASSY

13580-26F00-000  

13580-26F01-000
 1358026F00000

Unit Price

54
SCREW
SCREW

13602-19B50-000   1360219B50000

1360219B50000

Unit Price

55
HEATER ASSY,CARBURETOR(15W)<br />HEATER ASSY, CARBURETOR
HEATER ASSY, CARBURETOR(15W)
HEATER ASSY, CARBURETOR

13650-25E01-000   1365025E01000

1365025E01000

Unit Price

55
HEATER ASSY, CARBURETOR(25W)
HEATER ASSY, CARBURETOR

13650-20E00-000  

1365020E00000
Not available
56
THERMO SWITCH, CARB HEATER
THERMO SWITCH, CARBURETOR HEATER

13655-16F00-000   1365516F00000

1365516F00000

Unit Price

56
THERMO SWITCH,CARB HEATER<br />THERMO SWITCH, CARBURETOR HEATER
THERMO SWITCH, CARB HEATER
THERMO SWITCH, CARBURETOR HEATER

13655-25E00-000   1365525E00000

1365525E00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
