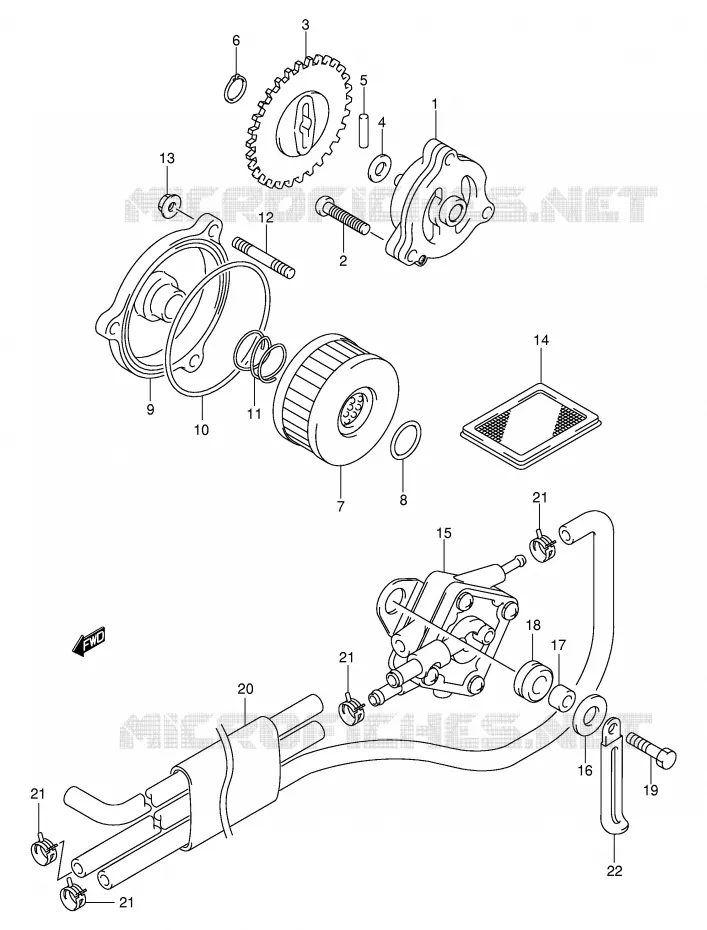

OIL PUMP - FUEL PUMP FOR SUZUKI INTRUDER 250 2002

FUEL EVAP SYSTEM

Item numbers

PUMP ASSY, OIL

16400-26F00-000 1640026F00000

Not available

SCREW

02112-06253-000

02112-0625A-000

$2,97

Unit Price

GEAR, OIL PUMP DRIVEN

16331-26F00-000 1633126F00000

$33,97

Unit Price

SHIM, 10X18X0.5
WASHER

09181-10158-000 0918110158000

$3,97

Unit Price

PIN(4X18.5)
PIN

09261-04001-000 0926104001000

$2,97

Unit Price

CIRCLIP

08331-31106-000

08331-31109-000

$2,97

Unit Price

FILTER ASSY, ENGINE OIL
FILTER, ENGINE OIL

16510-38240-000 1651038240000

Not available

O-RING D:2.4 ID:15.8
O RING, OIL FILTER (ID:15.8, DD:2.4)

09280-15007-000 0928015007000

Not available

CAP, OIL FILTER

16512-27F00-000 1651227F00000

Not available

O RING OIL FLT CAP
O RING, OIL FILTER CAP (ID:73.0, DD:2.4)

09280-72001-000 0928072001000

Not available

SPRING

09440-21006-000 0944021006000

$3,97

Unit Price

STUD BOLT
BOLT, STUD

09108-06102-000 0910806102000

$4,97

Unit Price

NUT

08313-10067-000 0831310067000

$2,97

Unit Price

STRAINER COMP, ENGINE

16520-30A00-000

16520-30A01-000

$18,97

Unit Price

PUMP ASSY, FUEL

15100-21F00-000 1510021F00000

Not available

WASHER (6.5X20X1.6)

09160-06088-000 0916006088000

$2,97

Unit Price

FENDER FRONT SPACER
SPACER (6.1X9X7.5)

09180-06038-000 0918006038000

$2,97

Unit Price

CUSHION (8.5X20X8)

09320-08021-000

09320-08510-000

$4,97

Unit Price

BOLT

01500-06203-000

01500-0620A-000

$2,97

Unit Price

HOSE, FUEL & VACUUM

15810-26F00-000 1581026F00000

Not available

CLIP

09401-09403-000 0940109403000

$3,97

Unit Price

CLAMP(L:65)

09404-06432-000

09404-06039-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
