CRANKCASE COVER

CRANKSHAFT FOR SUZUKI RM-Z 250 2007

CAMSHAFT - VALVES

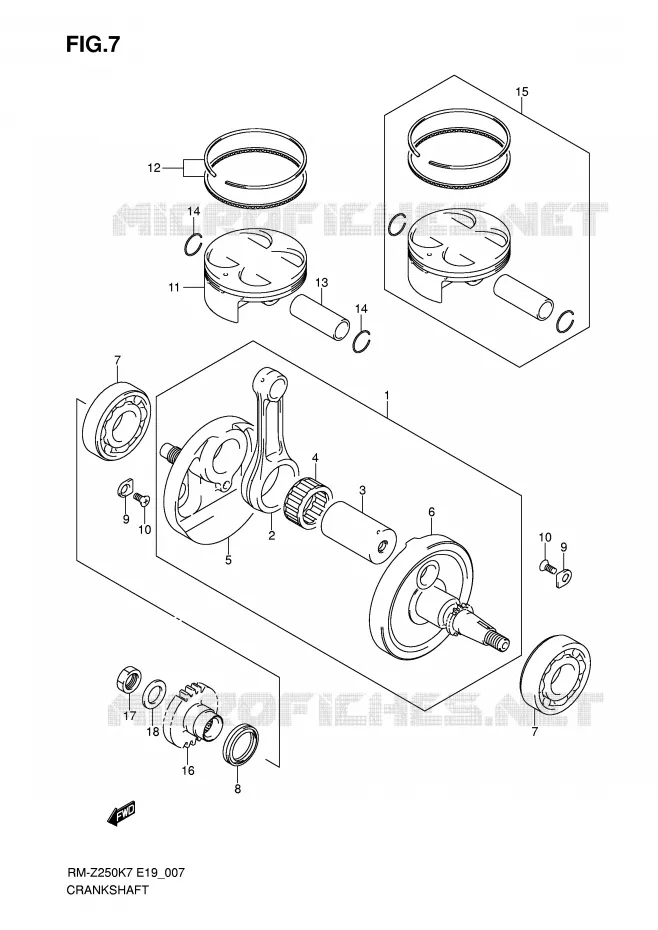

CRANKSHAFT Suzuki MOTO 250 RM-Z 2007 RM-Z250K7(E19)
1
CRANKSHAFT ASSY

12200-10H10-000  

12200-10H11-000
 1220010H10000

Unit Price

2
CONNECTING ROD

12161-10H10-0B0  

12161-49H00-0B0
 1216110H100B0

Unit Price

3
PIN, CRANK

12210-10H10-000  

12210-10H11-000
 1221010H10000

Unit Price

4
BEARING, 30X38X18

09263-30054-0B0  

09263-30060-0B0
 09263300540B0

Unit Price

5
DISCONTINUE
CRANKSHAFT, RH

12220-10H10-000   1222010H10000

1222010H10000
Not available
6
DISCONTINUE
CRANKSHAFT, LH

12261-10H10-000   1226110H10000

1226110H10000
Not available
7
BEARING, 30X62X16
BEARING

09262-30117-000   0926230117000

0926230117000

Unit Price

8
OIL SEAL

09283-30061-000  

09283-30076-000
 0928330061000

Unit Price

9
RETAINER, CRANKSHAFT BEARING
RETAINER

24741-37F00-000   2474137F00000

2474137F00000

Unit Price

10
SCREW
SCREW

09126-06011-000   0912606011000

0912606011000

Unit Price

11
PISTON

12111-10H20-0F0   1211110H200F0

1211110H200F0

Unit Price

12
RING SET, PISTON

12140-10810-000   1214010810000

1214010810000

Unit Price

13
PIN, PISTON

12151-10H00-000   1215110H00000

1215110H00000

Unit Price

14
PISTON PIN CIRCLIP<br />CIRCLIP
PISTON PIN CIRCLIP
CIRCLIP

09381-16001-000   0938116001000

0938116001000

Unit Price

15
PISTON KIT
PISTON KIT INC.REF.NO.11~14

12110-10820-000   1211010820000

1211010820000

Unit Price

16
DISCONTINUE
GEAR, PRIMARY DRIVE

21111-10H00-000   2111110H00000

2111110H00000
Not available
17
NUT

09140-16036-000   0914016036000

0914016036000

Unit Price

18
PR DVN GEAR WASHER
WASHER

09164-16002-000   0916416002000

0916416002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of RM-Z. Let us know if you have any questions.

Genuine parts for Suzuki 250 RM-Z 2007
