WATER PUMP

RADIATOR FOR SUZUKI RM-Z 250 2007

CLUTCH (MODEL K7) REFER TO FIG.16A(D- 3) FOR MODEL K8/K9

Item numbers

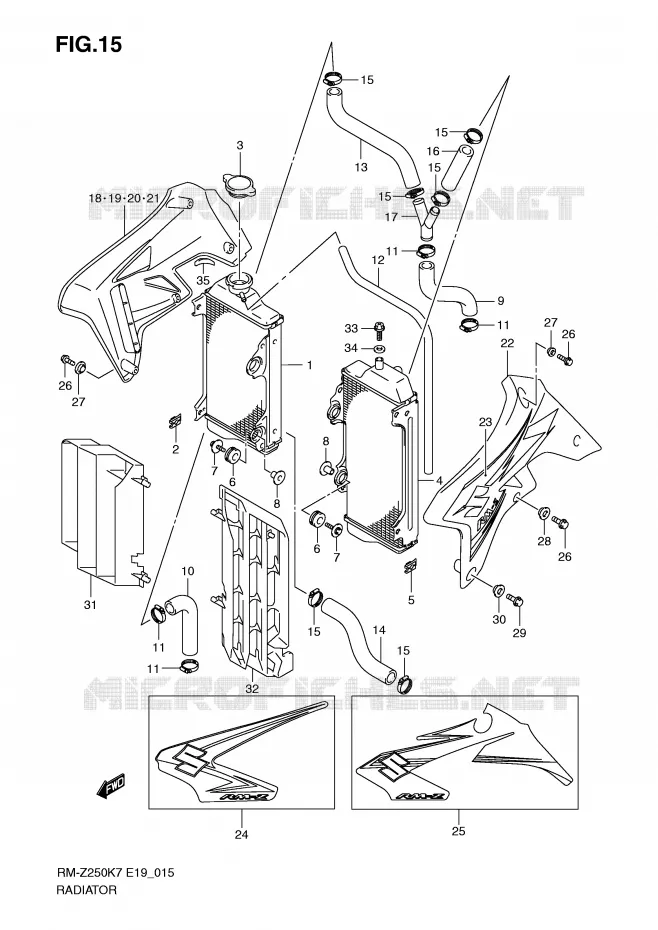

RADIATOR Suzuki MOTO 250 RM-Z 2007 RM-Z250K7(E19)
1
2
3
4
5
6
6
7
7
8
8
9
10
11
11
11
11
12
13
14
15
15
15
15
15
15
16
17
18
19
20
21
22
23
24
25
26
26
26
27
27
28
29
30
31
32
33
34
35
1
DISCONTINUE
RADIATOR, RH

17710-10H00-000   1771010H00000

1771010H00000
Not available
2
NUT
NUT

09148-06015-000   0914806015000

0914806015000

Unit Price

3
CAP, RADIATOR

17730-12C20-000  

17730-08J00-000
 1773012C20000

Unit Price

4
DISCONTINUE
RADIATOR, LH

17720-10H00-000   1772010H00000

1772010H00000
Not available
5
NUT
NUT

09148-06015-000   0914806015000

0914806015000

Unit Price

6
CUSHION, RADIATOR LWR
CUSHION, SUPPORT

17787-19A00-000   1778719A00000

1778719A00000

Unit Price

7
BOLT, MUFFLER MTG
BOLT (6X25)

09116-06186-000   0911606186000

0911606186000

Unit Price

8
SPACER

09180-06243-000   0918006243000

0918006243000

Unit Price

9
HOSE, RADIATOR INLET
HOSE, INLET

17851-10H00-000   1785110H00000

1785110H00000

Unit Price

10
HOSE, RADIATOR OUTLET
HOSE, OUTLET

17852-10H00-000   1785210H00000

1785210H00000

Unit Price

11
CLAMP

09402-28513-000   0940228513000

0940228513000

Unit Price

12
HOSE, 5X8X2000

09351-50803-00A  

09351-50803-00B
 093515080300A

Unit Price

13
HOSE, RADIATOR JOINT UPR NO.1
HOSE, JOINT UPPER NO.1

17853-10H00-000   1785310H00000

1785310H00000

Unit Price

14
HOSE, RADIATOR JOINT LWR
HOSE, JOINT LOWER

17855-10H00-000   1785510H00000

1785510H00000

Unit Price

15
CLAMP

09402-28513-000   0940228513000

0940228513000

Unit Price

16
HOSE, RADIATOR JOINT UPR NO.2
HOSE, RADIATOR JOINT UPPER NO.2

17854-10H00-000   1785410H00000

1785410H00000

Unit Price

17
JOINT, RADIATOR HOSE

17856-10H00-000   1785610H00000

1785610H00000

Unit Price

18
DISCONTINUE
COVER, RADIATOR, RH (YELLOW)

17761-10H00-YU1   1776110H00YU1

1776110H00YU1
Not available
19
DISCONTINUE
TAPE, RADIATOR COVER, RH

68660-10H00-DRA   6866010H00DRA

6866010H00DRA
Not available
20
DISCONTINUE
TAPE, RADIATOR COVER, RH

68660-10H10-EMA   6866010H10EMA

6866010H10EMA
Not available
21
DISCONTINUE
TAPE, RADIATOR COVER, RH

68660-10H20-FYF   6866010H20FYF

6866010H20FYF
Not available
22
DISCONTINUE
COVER, RADIATOR, LH (YELLOW)

17762-10H00-YU1   1776210H00YU1

1776210H00YU1
Not available
23
DISCONTINUE
TAPE, RADIATOR COVER, LH

68670-10H00-DRA   6867010H00DRA

6867010H00DRA
Not available
24
TAPE, RADIATOR COVER, LH

68670-10H10-EMA   6867010H10EMA

6867010H10EMA
Not available
25
DISCONTINUE
TAPE, RADIATOR COVER, LH

68670-10H20-FYF   6867010H20FYF

6867010H20FYF
Not available
26
BOLT
BOLT, 6X12

09103-06233-000   0910306233000

0910306233000

Unit Price

27
WASHER
WASHER, RADIATOR COVER

69232-37F01-000   6923237F01000

6923237F01000

Unit Price

28
47191-28H00
WASHER, RADIATOR COVER

47191-10H01-000  

4719110H01000
Not available
29
BOLT, 6X16

09103-06234-000   0910306234000

0910306234000

Unit Price

30
SPACER

09180-06328-000   0918006328000

0918006328000

Unit Price

31
LOUVER, RADIATOR, R

17831-10H00-000   1783110H00000

1783110H00000

Unit Price

32
LOUVER, RADIATOR, L

17832-10H00-000   1783210H00000

1783210H00000

Unit Price

33
UNION BOLT,AIR VENT<br />BOLT, AIR RELEASE
UNION BOLT, AIR VENT
BOLT, AIR RELEASE

17568-50F00-000   1756850F00000

1756850F00000

Unit Price

34
GASKET(6.4X11.5X0.84)<br />GASKET
GASKET(6.4X11.5X0.84)
GASKET

09168-06026-000   0916806026000

0916806026000

Unit Price

35
DISCONTINUE
CUSHION

17795-10H00-000   1779510H00000

1779510H00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR of your Suzuki of RM-Z. Let us know if you have any questions.
