Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE COVER- WATER PUMP (MODEL K)

CRANKCASE COVER - WATER PUMP (MODEL L / M / N) FOR SUZUKI RM 250 1990

CRANKSHAFT (MODEL K)

Item numbers

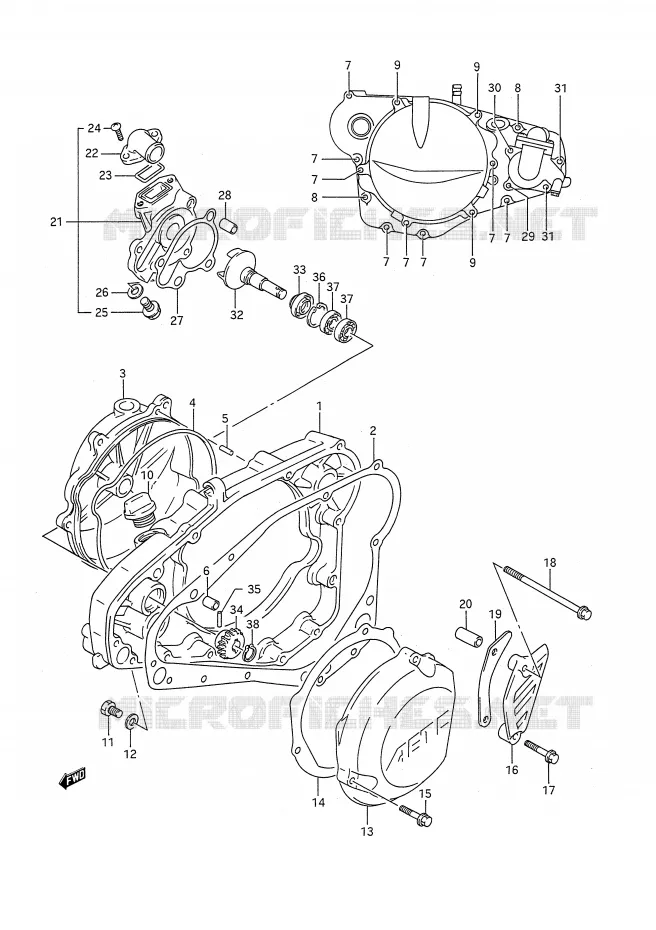

CRANKCASE COVER - WATER PUMP (MODEL L/M/N) Suzuki MOTO 250 RM 1990 RM250L(E28)
1
1
2
3
4
5
6
7
7
7
7
7
7
7
7
8
8
9
9
9
9
9
9
10
11
12
13
14
14
15
16
17
18
19
19
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
37
38
1
DISCONTINUE

11341-28C10-000  

1134128C10000
Not available
1
DISCONTINUE

11341-28C30-000  

1134128C30000
Not available
2
GASKET, CLUTCH COVER

11482-28C01-000   1148228C01000

1148228C01000

Unit Price

3
DISCONTINUE

11371-28C10-000  

1137128C10000
Not available
4
DISCONTINUE
O RING, CLUTCH COVER OUTER

11484-28C10-000   1148428C10000

1148428C10000
Not available
5
PIN
PIN

04221-04089-000   0422104089000

0422104089000

Unit Price

6
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

7
BOLT,6X25<br />BOLT
BOLT, 6X25
BOLT

01547-06257-000   0154706257000

0154706257000

Unit Price

8
BOLT,6X35<br />BOLT
BOLT, 6X35
BOLT

01547-06357-000   0154706357000

0154706357000

Unit Price

9
BOLT

01547-06657-000  

01547-0665B-000
 0154706657000

Unit Price

9
BOLT,6X70<br />BOLT
BOLT, 6X70
BOLT

01547-06707-000   0154706707000

0154706707000

Unit Price

10
PLUG SET
PLUG SET

09200-20810-000  

09200-20811-000
 0920020810000

Unit Price

11
SCREWM6X1X10

09128-06004-000  

09128-06044-000
 0912806004000

Unit Price

12
TACH GEAR WASHER<br />GASKET
TACH GEAR WASHER
GASKET

09168-06004-000   0916806004000

0916806004000

Unit Price

13
DISCONTINUE

11351-28C00-000  

1135128C00000
Not available
14
DISCONTINUE

11483-28C00-000  

1148328C00000
Not available
15
BOLT,6X25<br />BOLT
BOLT, 6X25
BOLT

01547-06257-000   0154706257000

0154706257000

Unit Price

16
COVER, ENGINE SPROCKET

11360-27C00-000  

11360-28E00-000
 1136027C00000

Unit Price

17
BOLT,6X25<br />BOLT
BOLT, 6X25
BOLT

01547-06257-000   0154706257000

0154706257000

Unit Price

18
BOLT

01547-06958-000  

01547-06957-000
 0154706958000

Unit Price

19
DISCONTINUE
PLATE, CHAIN GUIDE

27641-28C00-000   2764128C00000

2764128C00000
Not available
19
DISCONTINUE
PLATE, CHAIN GUIDE

27641-28C10-000   2764128C10000

2764128C10000
Not available
19
DISCONTINUE
PLATE, CHAIN GUIDE

27641-28C20-000   2764128C20000

2764128C20000
Not available
20
SPACER 6.5 X 10 X 5<br />SPACER
SPACER 6.5 X 10 X 5
SPACER

09180-06203-000   0918006203000

0918006203000

Unit Price

21
DISCONTINUE

17410-28C10-000  

1741028C10000
Not available
22
DISCONTINUE

17412-28C10-000  

1741228C10000
Not available
23
O RING, WATER PUMP CONNECTOR
O RING

17414-14300-000   1741414300000

1741414300000

Unit Price

24
SCREW

02112-06164-000  

02112-0616A-000
 0211206164000

Unit Price

25
BOLT

17415-00B00-000  

17415-43D00-000
 1741500B00000

Unit Price

26
WASHER
GASKET

17413-28C10-000   1741328C10000

1741328C10000

Unit Price

27
DISCONTINUE
GASKET, WATER PUMP CASE

17431-28C10-000   1743128C10000

1743128C10000
Not available
28
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

29
BOLT
BOLT

01547-06207-000   0154706207000

0154706207000

Unit Price

30
BOLT,6X30<br />BOLT
BOLT, 6X30
BOLT

01547-06307-000   0154706307000

0154706307000

Unit Price

31
BOLT

01547-06807-000   0154706807000

0154706807000

Unit Price

32
IMPELLER, WATER PUMP

17491-28C10-000   1749128C10000

1749128C10000

Unit Price

33
SEAL, WATER PUMP OIL

17461-28C10-000  

17461-03B00-000
 1746128C10000

Unit Price

34
DISCONTINUE

17441-28C10-000  

1744128C10000
Not available
35
DISCONTINUE<br />PIN
DISCONTINUE
PIN

09261-03010-000   0926103010000

0926103010000
Not available
36
CIRCLIP
CIRCLIP

08331-41249-000   0833141249000

0833141249000

Unit Price

37
BALL BEARING
BEARING

08113-69000-000   0811369000000

0811369000000

Unit Price

38
CIRCLIP
CIRCLIP

08331-31109-000   0833131109000

0833131109000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
