EXHAUST VALVE

CRANKCASE FOR SUZUKI RM 250 1990

CRANKCASE COVER- WATER PUMP (MODEL K)

Item numbers

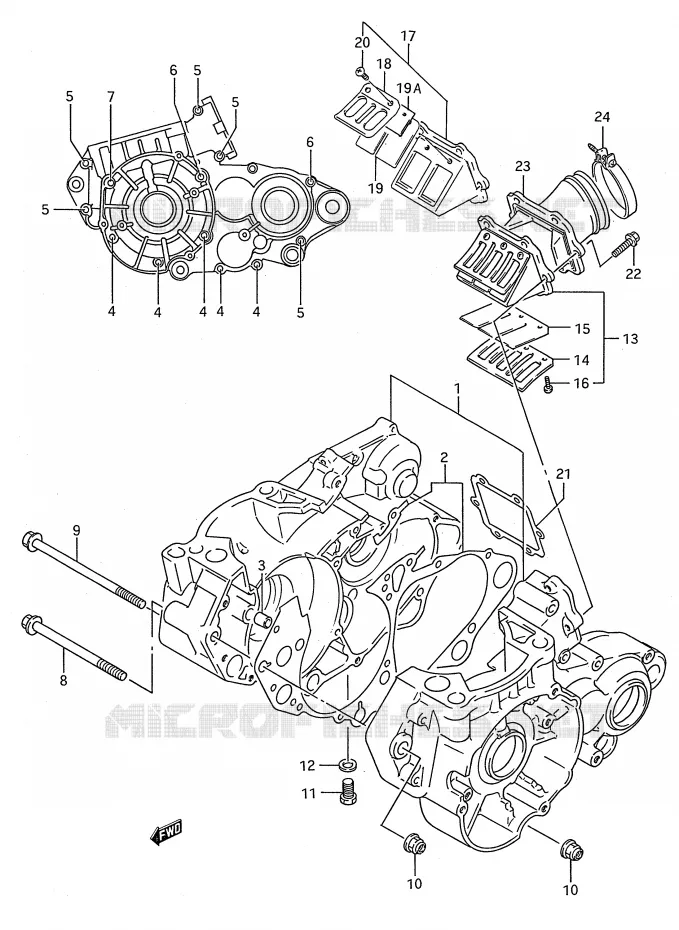

CRANKCASE Suzuki MOTO 250 RM 1990 RM250L(E28)
1
1
1
1
2
3
4
4
4
4
4
5
5
5
5
5
6
6
7
8
8
8
9
9
10
10
11
11
12
13
14
15
16
17
17
18
19
19A
20
21
22
23
23
24
24
1
11300-28897
CRANKCASE SET

11300-28890-000  

1130028890000
Not available
1
11301-28813
CRANKCASE SET

11301-28810-000  

1130128810000
Not available
2
DISCONTINUE
GASKET, CRANKCASE

11481-28C00-000   1148128C00000

1148128C00000
Not available
3
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

4
BOLT,6X40<br />BOLT
BOLT, 6X40
BOLT

01547-06407-000   0154706407000

0154706407000

Unit Price

5
BOLT
BOLT

01547-06507-000   0154706507000

0154706507000

Unit Price

6
BOLT,6X55<br />BOLT
BOLT, 6X55
BOLT

01547-06557-000   0154706557000

0154706557000

Unit Price

7
BOLT

01547-06607-000   0154706607000

0154706607000

Unit Price

8
BOLT<br />BOLT (8X105)
BOLT
BOLT (8X105)

09103-08097-000   0910308097000

0910308097000

Unit Price

8
BOLT

09103-08273-000  

09103-08296-000
 0910308273000

Unit Price

9
BOLT(8X137)

09103-08248-000  

09103-08297-000
 0910308248000

Unit Price

10
NUT

09159-08067-000   0915908067000

0915908067000

Unit Price

11
BOLT

01107-08167-000  

01500-0816B-000
 0110708167000

Unit Price

11
NUT

09159-08034-000   0915908034000

0915908034000

Unit Price

12
GASKET, 8.2X14X1

09168-08008-000  

09168-08016-000
 0916808008000

Unit Price

13
DISCONTINUE

13150-01C10-000  

1315001C10000
Not available
14
STOPPER, REED VALVE

13152-01C10-000   1315201C10000

1315201C10000

Unit Price

15
VALVE, REED

13153-01C10-000   1315301C10000

1315301C10000

Unit Price

16
SCREW

02112-33086-000  

02112-33083-000
 0211233086000

Unit Price

17
DISCONTINUE

13150-28C20-000  

1315028C20000
Not available
18
STOPPER, REED VALVE

13152-28C20-000   1315228C20000

1315228C20000
Not available
19
DISCONTINUE
VALVE, REED

13153-28C21-000   1315328C21000

1315328C21000
Not available
19A
DISCONTINUE
VALVE, REED UPPER

13155-28C30-000   1315528C30000

1315528C30000
Not available
20
SCREW

02112-33086-000  

02112-33083-000
 0211233086000

Unit Price

21
GASKET, REED VALVE

13156-01C10-000   1315601C10000

1315601C10000

Unit Price

22
BOLT
BOLT

01547-06207-000   0154706207000

0154706207000

Unit Price

23
13110-28C01

13110-28C01-000  

1311028C01000
Not available
23
DISCONTINUE

13110-28C20-000  

1311028C20000
Not available
24
CLAMP

09402-54306-000  

09402-54303-000
 0940254306000

Unit Price

24
CLAMP, INTAKE PIPE

09402-56208-000  

09402-56901-000
 0940256208000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
