CYLINDER (MODEL T / V / W) FOR SUZUKI RM 250 1998

CYLINDER (MODEL X) REFER TO FIG.1B(B-5) FOR MODEL Y

Item numbers

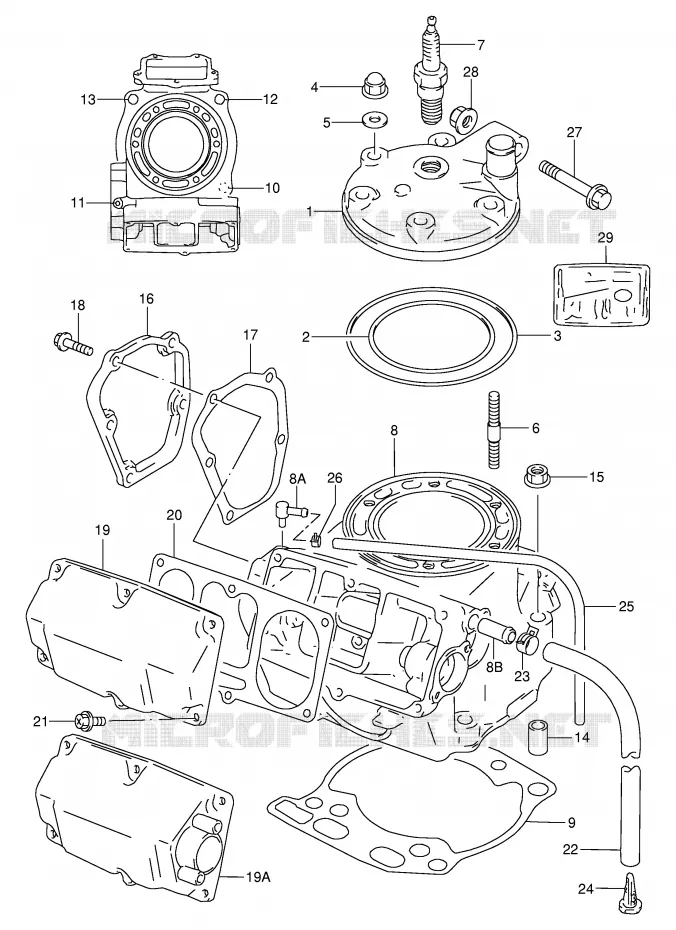

CYLINDER (MODEL T/V/W) Suzuki MOTO 250 RM 1998 RM250W(E3/E28)
1
1
1
2
3
4
4
5
6
7
8B
8
8
8
8A
9
10
11
12
12
13
13
14
15
16
16
17
18
19
19A
20
21
22
23
24
25
26
27
28
29
1
DISCONTINUE
HEAD, CYLINDER

11111-37E01-000   1111137E01000

1111137E01000
Not available
1
DISCONTINUE

11111-37E10-000  

1111137E10000
Not available
1
DISCONTINUE

11111-37E21-000  

1111137E21000
Not available
2
DISCONTINUE
O RING, CYLINDER HEAD NO.1

11147-28C20-000   1114728C20000

1114728C20000
Not available
3
O RING, CYLINDER HEAD NO.2

11148-28C20-000   1114828C20000

1114828C20000

Unit Price

4
NUT

09159-08049-000  

09159-08074-000
 0915908049000

Unit Price

5
GASKET 8.5X17X2.3<br />WASHER
GASKET 8.5X17X2.3
WASHER

09168-08021-000   0916808021000

0916808021000

Unit Price

6
STUD BOLT

09108-08227-000  

09108-08231-000
 0910808227000

Unit Price

7
DISCONTINUE
SPARK PLUG (NGK, R6918B-7)

09482-00511-000   0948200511000

0948200511000
Not available
8A
UNION,BREATHER HOSE<br />UNION, CYLINDER
UNION, BREATHER HOSE
UNION, CYLINDER

16910-09401-000   1691009401000

1691009401000

Unit Price

8
DISCONTINUE
CYLINDER

11200-37810-000   1120037810000

1120037810000
Not available
8
CYLINDER

11200-37820-000   1120037820000

1120037820000
Not available
8
CYLINDER

11200-37830-000   1120037830000

1120037830000
Not available
8B
UNION, ROOF DRAIN HOS
UNION, EXHAUST VALVE BREATHER HOSE

09364-10003-000   0936410003000

0936410003000
Not available
9
DISCONTINUE
GASKET, CYLINDER

11241-37E00-000   1124137E00000

1124137E00000
Not available
10
BOLT, STUD

01421-10308-000  

01421-1030A-000
 0142110308000

Unit Price

11
BOLT, STUD

01421-10408-000  

01421-1040A-000
 0142110408000

Unit Price

12
BOLT, STUD

01421-10503-000  

01421-1050A-000
 0142110503000

Unit Price

12
BOLT, STUD

01421-10708-000  

01421-1070A-000
 0142110708000

Unit Price

13
BOLT, STUD

01421-10603-000  

01421-1060A-000
 0142110603000

Unit Price

13
STUD BOLT

01421-10808-000   0142110808000

0142110808000
Not available
14
COLLAR 10.4 X 13 X 2<br />PIN
COLLAR 10.4 X 13 X 2
PIN

09206-13017-000   0920613017000

0920613017000

Unit Price

15
NUT

08316-10103-000  

08316-1010B-000
 0831610103000

Unit Price

16
DISCONTINUE

11231-37E00-000  

1123137E00000
Not available
17
DISCONTINUE
GASKET, CYLINDER COVER NO.1

11233-37E00-000   1123337E00000

1123337E00000
Not available
18
BOLT

01547-06163-000  

01547-0616B-000
 0154706163000

Unit Price

19
COVER, CYLINDER NO.2

11248-37E00-000   1124837E00000

1124837E00000
Not available
19A
COVER, CYLINDER NO.2

11248-37E10-000   1124837E10000

1124837E10000
Not available
20
DISCONTINUE
GASKET, CYLINDER COVER NO.2

11238-37E00-000   1123837E00000

1123837E00000
Not available
21
SCREW

02162-05163-000  

02162-0516A-000
 0216205163000

Unit Price

22
HOSE
HOSE (9X14X220)

09343-09501-000   0934309501000

0934309501000

Unit Price

23
CLIP

09401-12405-000   0940112405000

0940112405000

Unit Price

24
DISCONTINUE
FILTER

11271-28E20-000   1127128E20000

1127128E20000
Not available
25
HOSE
HOSE

09352-50823-600  

09352-50005-600
 0935250823600

Unit Price

26
OIL HOSE CLAMP<br />CLIP
OIL HOSE CLAMP
CLIP

09401-08401-000   0940108401000

0940108401000

Unit Price

27
BOLT 10X48<br />BOLT (10X38)
BOLT 10X48
BOLT (10X38)

09103-10126-000   0910310126000

0910310126000

Unit Price

28
NUT 10MM
NUT

09159-10060-000   0915910060000

0915910060000

Unit Price

29
11400-37872
GASKET SET

11400-37870-000  

1140037870000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
