Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT FORK (MODEL V) REFER TO FIG.28B(G- 6) FOR MODEL W

FRONT FORK (MODEL W) FOR SUZUKI RM 250 1998

FRONT FORK (MODEL X) REFER TO FIG.28D(G-10) FOR MODEL Y

Item numbers

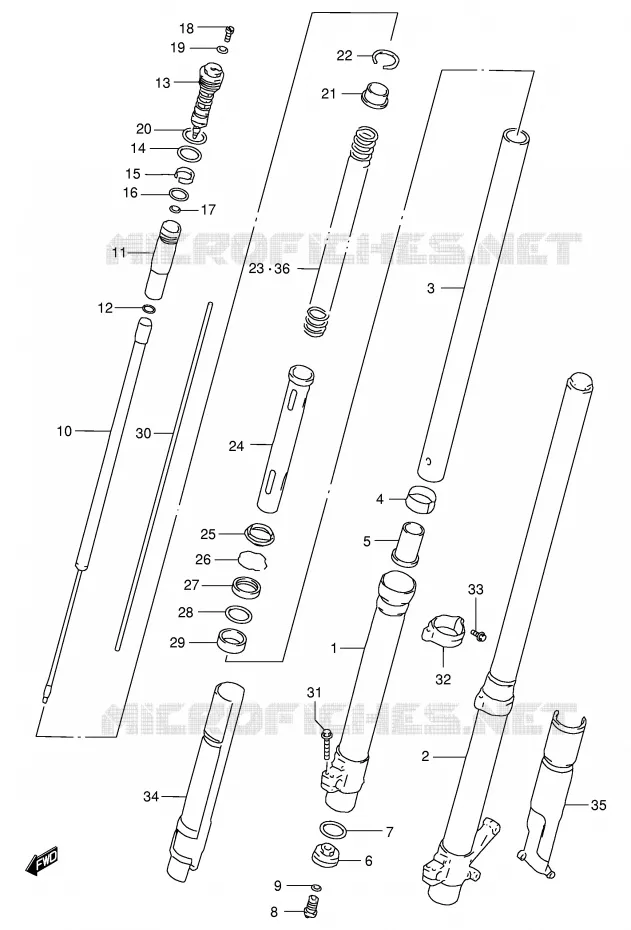

FRONT FORK (MODEL W) Suzuki MOTO 250 RM 1998 RM250W(E3/E28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
34
35
36
36
1
DISCONTINUE
TUBE, OUTER RH

51130-36E40-000   5113036E40000

5113036E40000
Not available
2
TUBE, OUTER LH

51140-36E40-000   5114036E40000

5114036E40000
Not available
3
TUBE, INNER

51110-36E40-000   5111036E40000

5111036E40000
Not available
4
BUSH, SLIDE

51121-36E40-000   5112136E40000

5112136E40000

Unit Price

5
PIECE, OIL LOCK

51195-36E50-000   5119536E50000

5119536E50000
Not available
6
DISCONTINUE
PLATE, END

51205-36E00-000   5120536E00000

5120536E00000
Not available
7
O RING

51117-27C40-000   5111727C40000

5111727C40000

Unit Price

8
DISCONTINUE
BOLT, CENTER

51170-36E40-000   5117036E40000

5117036E40000
Not available
9
DISCONTINUE
O RING

51177-28E30-000   5117728E30000

5117728E30000
Not available
10
DISCONTINUE
ROD, DAMPER

51190-37E50-000   5119037E50000

5119037E50000
Not available
11
TANK, SUB

51198-36E40-000   5119836E40000

5119836E40000
Not available
12
O RING

51174-36E30-000   5117436E30000

5117436E30000
Not available
13
DISCONTINUE
BOLT, FORK

51351-37E50-000   5135137E50000

5135137E50000
Not available
14
O RING
O RING, UPPER

51117-36E00-000   5111736E00000

5111736E00000

Unit Price

15
BUSH, FORK BOLT SLIDE

51123-36E40-000   5112336E40000

5112336E40000
Not available
16
O RING
O RING, CENTER

51174-36E40-000   5117436E40000

5117436E40000

Unit Price

17
O RING
O RING, LOWER

51175-36E20-000   5117536E20000

5117536E20000

Unit Price

18
BOLT, PLUG

51357-28E30-000   5135728E30000

5135728E30000

Unit Price

19
O RING, PLUG

51358-28E30-000   5135828E30000

5135828E30000

Unit Price

20
O RING
O RING, UPPER

51117-29EA0-000   5111729EA0000

5111729EA0000

Unit Price

21
SPRING, STOPPER

51355-36E20-000   5135536E20000

5135536E20000
Not available
22
DISCONTINUE
RING, STOPPER

51354-36E20-000   5135436E20000

5135436E20000
Not available
23
SPRING, FRONT (K=0.42)

51171-36E60-000   5117136E60000

5117136E60000
Not available
24
DISCONTINUE
COLLAR, SPRING

51176-36E40-000   5117636E40000

5117636E40000
Not available
25
SEAL, DUST

51173-36E00-000   5117336E00000

5117336E00000

Unit Price

26
RING, STOPPER

51156-36E00-000   5115636E00000

5115636E00000

Unit Price

27
SEAL, OIL

51153-36E00-000   5115336E00000

5115336E00000

Unit Price

28
SPACER, SEAL

51158-36E00-000   5115836E00000

5115836E00000

Unit Price

29
DISCONTINUE
BUSH, GUIDE

51167-36E40-000   5116736E40000

5116736E40000
Not available
30
DISCONTINUE
ROD, PUSH

51191-36E20-000   5119136E20000

5119136E20000
Not available
31
BOLT, HANDLE HOLDER(8X35)
BOLT

51321-27C40-000   5132127C40000

5132127C40000

Unit Price

32
DISCONTINUE
GUIDE, FRONT PROTECTOR RH

51211-36E00-000   5121136E00000

5121136E00000
Not available
32
DISCONTINUE
GUIDE, FRONT PROTECTOR LH

51221-36E00-000   5122136E00000

5122136E00000
Not available
33
BOLT<br />BOLT, GUIDE
BOLT
BOLT, GUIDE

01547-06207-000   0154706207000

0154706207000

Unit Price

34
DISCONTINUE
PROTECTOR, OUTER TUBE RH (GRAY)

51551-36E10-1KY   5155136E101KY

5155136E101KY
Not available
35
DISCONTINUE
PROTECTOR, OUTER TUBE LH (GRAY)

51552-36E10-1KY   5155236E101KY

5155236E101KY
Not available
36
SPRING, FRONT (SOFT, K=0.40)

51171-36E50-000   5117136E50000

5117136E50000
Not available
36
SPRING, FRONT (HARD, K=0.44)

51171-36E70-000   5117136E70000

5117136E70000
Not available
99x
DAMPER ASSY, FRONT FORK RH

51103-37E50-000   5110337E50000

5110337E50000
Not available
99x
DAMPER ASSY, FRONT FORK LH

51104-37E50-000   5110437E50000

5110437E50000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
