EXHAUST VALVE (MODEL K3 / K4 / K5 / K6)

CRANKCASE (MODEL K1 / K2) FOR SUZUKI RM 250 2003

CRANKCASE (MODEL K3 / K4 / K5 / K6)

Item numbers

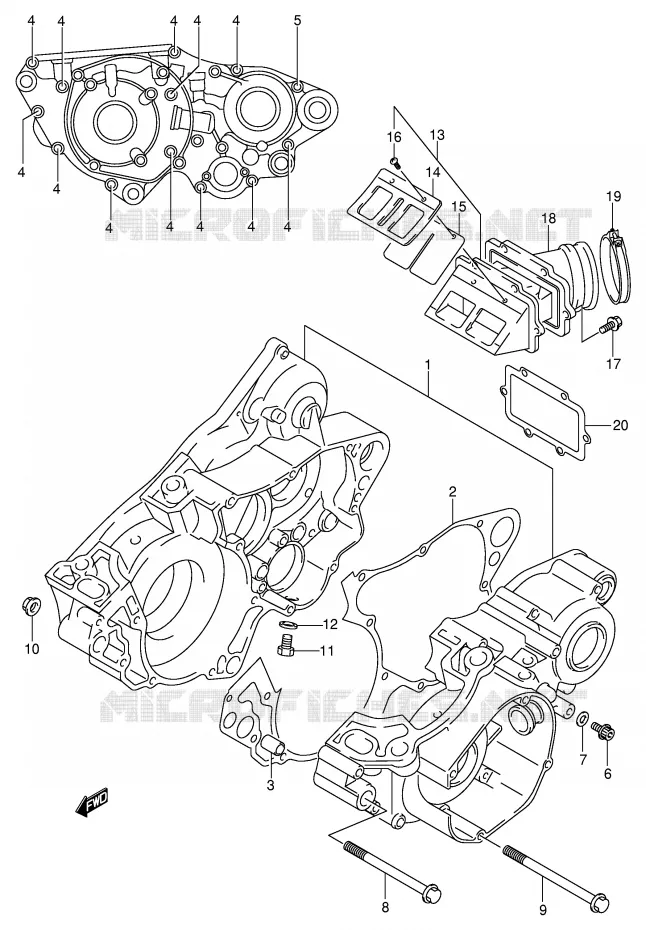

CRANKCASE (MODEL K1/K2) Suzuki MOTO 250 RM 2003 RM250K3(E3/E28)
1
1
2
2
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
5
5
6
7
8
9
10
11
11
12
13
14
15
16
17
17
18
19
20
1
DISCONTINUE

11300-37855-000  

1130037855000
Not available
1
DISCONTINUE
CRANKCASE SET

11300-37863-000  

1130037863000
Not available
2
DISCONTINUE

11481-37F00-000  

1148137F00000
Not available
3
COLLAR 10.4 X 13 X 2<br />PIN
COLLAR 10.4 X 13 X 2
PIN

09206-13017-000   0920613017000

0920613017000

Unit Price

4
BOLT, CRANKCASE L50
BOLT (L:50)

09103-06244-000   0910306244000

0910306244000

Unit Price

5
BOLT, CRANKCASE L65
BOLT (L:65)

09103-06245-000   0910306245000

0910306245000

Unit Price

6
BOLT

07120-06103-000  

07120-0610B-000
 0712006103000

Unit Price

7
TACH GEAR WASHER<br />GASKET
TACH GEAR WASHER
GASKET

09168-06004-000   0916806004000

0916806004000

Unit Price

8
BOLT
BOLT (10X105)

09103-10087-000   0910310087000

0910310087000

Unit Price

9
BOLT
BOLT (10X118)

09103-10076-000   0910310076000

0910310076000

Unit Price

10
NUT 10MM
NUT

09159-10060-000   0915910060000

0915910060000

Unit Price

11
BOLT

01500-12163-000  

01500-1216B-000
 0150012163000

Unit Price

11
PLUG, OIL DRAIN
PLUG, DRAIN

09247-12012-000   0924712012000

0924712012000

Unit Price

12
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
13
DISCONTINUE
VALVE ASSY, REED

13150-37E10-000  

1315037E10000
Not available
14
DISCONTINUE
STOPPER, REED VALVE

13152-37E10-000   1315237E10000

1315237E10000
Not available
15
VALVE, REED

13153-37E00-000   1315337E00000

1315337E00000

Unit Price

16
SCREW

02112-33083-000  

02112-3308A-000
 0211233083000

Unit Price

17
BOLT

01547-06203-000  

01547-0620B-000
 0154706203000

Unit Price

17
BOLT

09103-06235-000  

01547-06207-000
 0910306235000

Unit Price

18
PIPE, INTAKE

13110-37F00-000  

13110-37F01-000
 1311037F00000

Unit Price

19
CLAMP, INTAKE PIPE

09402-56208-000  

09402-56901-000
 0940256208000

Unit Price

20
DISCONTINUE
GASKET, REED VALVE

13156-37E10-000   1315637E10000

1315637E10000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
