CRANKCASE COVER-WATER PUMP (MODEL K3 / K4 / K5 / K6)

CRANKSHAFT (MODEL K1 / K2) FOR SUZUKI RM 250 2004

CRANKSHAFT (MODEL K3 / K4 / K5 / K6)

Item numbers

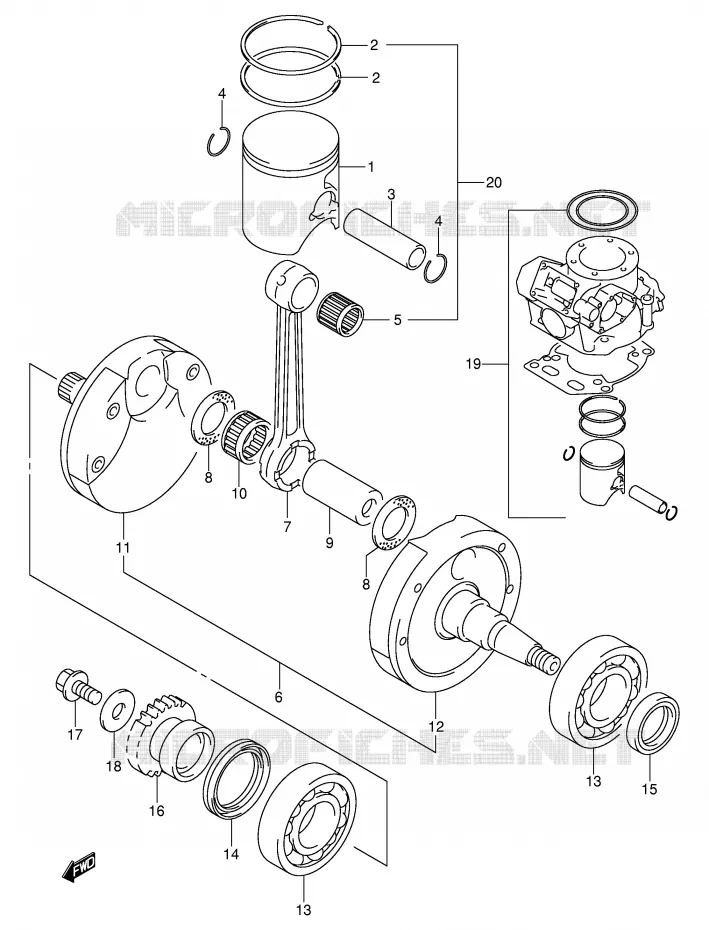

CRANKSHAFT (MODEL K1/K2) Suzuki MOTO 250 RM 2004 RM250K4(E3/E28)
1
1
2
2
3
3
4
4
5
6
6
7
8
8
9
10
11
11
12
12
13
13
14
15
16
17
17
18
19
19
19
19
19
19
19
20
20
20
20
20
20
20
20
1
PISTON

12110-37E40-0F0  

12110-37E42-0F0
 1211037E400F0

Unit Price

2
RING, PISTON

12141-37E02-000   1214137E02000

1214137E02000

Unit Price

3
PIN, PISTON

12151-28C00-000  

12151-37F00-000
 1215128C00000

Unit Price

4
PISTON PIN CIRCLIP<br />CIRCLIP
PISTON PIN CIRCLIP
CIRCLIP

09381-18002-000   0938118002000

0938118002000

Unit Price

5
BEARING, PISTON PIN
BEARING (18X23X22)

09263-18016-000   0926318016000

0926318016000

Unit Price

6
DISCONTINUE
CRANKSHAFT ASSY

12200-37E31-000   1220037E31000

1220037E31000
Not available
6
DISCONTINUE
CRANKSHAFT ASSY

12200-37F00-000   1220037F00000

1220037F00000
Not available
7
DISCONTINUE
ROD, CONNECTING

12161-37E00-000   1216137E00000

1216137E00000
Not available
8
WASHER

09160-24027-000   0916024027000

0916024027000

Unit Price

9
PIN, CRANK

12211-05D00-000   1221105D00000

1221105D00000

Unit Price

10
BEARING<br />BEARING (24X30X20)
BEARING
BEARING (24X30X20)

09263-24026-000   0926324026000

0926324026000

Unit Price

11
DISCONTINUE
CRANKSHAFT, RH

12220-37E31-000   1222037E31000

1222037E31000
Not available
11
DISCONTINUE
CRANKSHAFT, RH

12220-37F00-000   1222037F00000

1222037F00000
Not available
12
CRANKSHAFT, LH

12260-37E31-000   1226037E31000

1226037E31000
Not available
12
DISCONTINUE
CRANKSHAFT, LH

12260-37F00-000   1226037F00000

1226037F00000
Not available
13
BEARING (28X68X18)

09262-28027-000   0926228027000

0926228027000

Unit Price

14
SEAL, OIL CRANKS FAFT
OIL SEAL, RH (38X52X8)

09283-38021-000   0928338021000

0928338021000

Unit Price

15
SEAL, OIL CRANKS FAFT
OIL SEAL, LH (25X37X6)

09283-25099-000   0928325099000

0928325099000

Unit Price

16
DISCONTINUE
GEAR, PRIMARY DRIVE (NT:21)

21111-37F00-000   2111137F00000

2111137F00000
Not available
17
BOLT, PRIMARY DRIVE G
BOLT, PRIMARY DRIVE GEAR

09103-10339-000   0910310339000

0910310339000

Unit Price

18
WASHER, PRIMARY DRIVE
WASHER

09164-11004-000   0916411004000

0916411004000

Unit Price

19
PISTON PIN CIRCLIP<br />CIRCLIP
PISTON PIN CIRCLIP
CIRCLIP

09381-18002-000   0938118002000

0938118002000

Unit Price

19
O RING, CYLINDER HEAD NO.1

11147-37F00-000   1114737F00000

1114737F00000

Unit Price

19
O RING, CYLINDER HEAD NO.2

11148-37F00-000   1114837F00000

1114837F00000

Unit Price

19
PISTON

12110-37E42-0F0   1211037E420F0

1211037E420F0

Unit Price

19
RING, PISTON

12141-37E02-000   1214137E02000

1214137E02000

Unit Price

19
DISCONTINUE
GASKET, CYLINDER

11241-37F01-000   1124137F01000

1124137F01000
Not available
19
DISCONTINUE
TOP END KIT, ENGINE

12102-37812-000   1210237812000

1210237812000
Not available
20
BEARING, PISTON PIN
BEARING

09263-18016-000   0926318016000

0926318016000

Unit Price

20
PISTON PIN CIRCLIP<br />CIRCLIP
PISTON PIN CIRCLIP
CIRCLIP

09381-18002-000   0938118002000

0938118002000

Unit Price

20
PISTON

12110-37E42-0F0   1211037E420F0

1211037E420F0

Unit Price

20
RING, PISTON

12141-37E02-000   1214137E02000

1214137E02000

Unit Price

20
PIN, PISTON

12151-28C00-000  

12151-37F00-000
 1215128C00000

Unit Price

20
DISCONTINUE

12101-37890-000  

1210137890000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
