LEFT SWITCH - HANDGRIP (MODEL H / J / K E15,E16,E17,E22,MODEL K E2) REFER TO FIG.53A (G-12) FOR MODEL K E21,E24

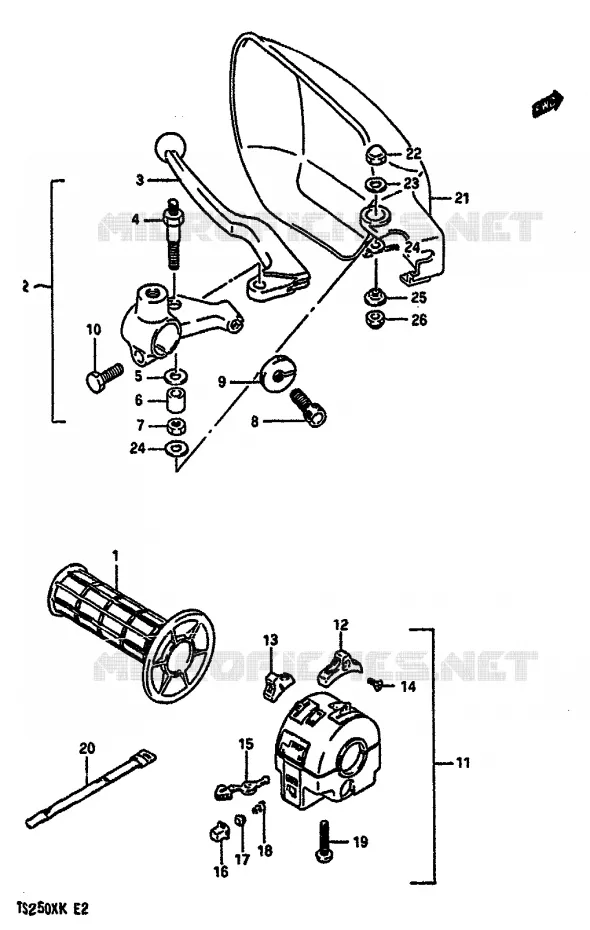

LEFT SWITCH - HANDGRIP (MODEL K E21,E24) FOR SUZUKI TS-X 250 1987

* CATALOG PREFACE *

GRIP, L

57211-40201-000

57211-27C00-000

$24,97

Unit Price

LEVER ASSY, CLUTCH

57500-13A40-000 5750013A40000

Not available

LEVER, CLUTCH
LEVER

57620-26500-000 5762026500000

$48,97

Unit Price

BOLT, CLUTCH LEVER PIVOT

57531-44B00-000

57531-44B01-000

$12,97

Unit Price

DISCONTINUE
WASHER

57533-44B00-000 5753344B00000

Not available

SPACER, LEVER SET
SPACER

57532-44B00-000 5753244B00000

$7,97

Unit Price

NUT

08319-21065-000

08319-21063-000

$3,97

Unit Price

ADJUSTER, CABLE

57441-13A00-000

57441-26010-000

$7,97

Unit Price

NUT, CABLE ADJUSTER

57442-44400-000

57442-11010-000

$5,97

Unit Price

BOLT

01107-06205-000

01500-06257-000

$2,97

Unit Price

SWITCH ASSY, HANDLE LH

37400-01A00-000 3740001A00000

Not available

SWITCH ASSY, HANDLE LH

37400-01A10-000 3740001A10000

Not available

KNOB, LIGHTING SWITCH

37411-45012-000 3741145012000

$10,97

Unit Price

KNOB, DIMMER SWITCH

37421-45012-000 3742145012000

Not available

SCREW

02122-03068-000

02122-03067-000

$3,97

Unit Price

KNOB, TURNSIGNAL

37513-45011-000 3751345011000

$11,97

Unit Price

BUTTON, HORN
BUTTON

57371-45000-000 5737145000000

$5,97

Unit Price

CONTACT

57372-45000-000 5737245000000

$5,97

Unit Price

SPRING

57382-45000-000 5738245000000

$4,97

Unit Price

SCREW

02112-05257-000 0211205257000

$2,97

Unit Price

FUEL HOSE CLAMP
CLAMP (L:120)

09407-12402-000 0940712402000

$5,97

Unit Price

COVER, KNUCKLE LH (BLACK)

57541-15A01-21C 5754115A0121C

Not available

COVER, KNUCKLE LH (YELLOW)

57541-15A01-25Y 5754115A0125Y

Not available

COVER, KNUCKLE LH (WHITE)

57541-15A01-30H 5754115A0130H

Not available

NUT

08313-11065-000

08313-10063-000

$3,97

Unit Price

WASHER 6.5X20X1.6

09160-06102-000

09160-06088-000

$2,97

Unit Price

WASHER

09160-06069-000

09160-06052-000

$3,97

Unit Price

WASHER

09169-06055-000 0916906055000

$3,97

Unit Price

NUT

08319-21065-000

08319-21063-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the LEFT SWITCH - HANDGRIP (MODEL K E21,E24) of your Suzuki of TS-X. Let us know if you have any questions.
