REAR SHOCK ABSORBER (MODEL K)

SHOCK ABSORBER LINKAGE FOR SUZUKI TS-X 250 1987

REAR WHEEL

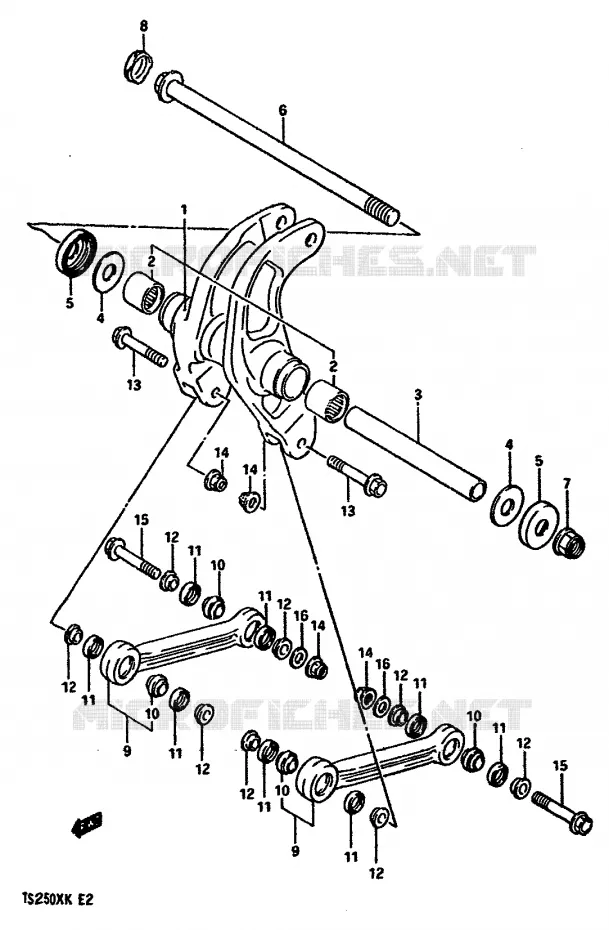

SHOCK ABSORBER LINKAGE Suzuki MOTO 250 TS-X 1987 TS250XH(E/G/H/J/K)

1

LEVER SET, REAR CUSHION

62600-13871-000 6260013871000

Not available

2

DISCONTINUE
BEARING (17X25X20)

09263-17018-000 0926317018000

Not available

3

SPACER

62623-13A00-000 6262313A00000

Not available

4

WASHER
THRUST WASHER

08211-12283-000 0821112283000

$4,97

Unit Price

5

DUST SEAL

62624-48700-000 6262448700000

Not available

6

SHAFT

62621-14105-000 6262114105000

Not available

7

NUT

08319-31128-000

08319-3112A-000

$5,97

Unit Price

8

CAP, LEVER (BLACK)

61222-13A10-019 6122213A10019

Not available

8

CAP, LEVER (BLUE)

61222-13A10-19F 6122213A1019F

Not available

9

ROD SET, CUSHION LEVER

62600-13880-000 6260013880000

Not available

10

DISCONTINUE
BEARING

09269-08002-000 0926908002000

Not available

11

DUST SEAL

62647-13A00-000 6264713A00000

Not available

12

SPACER

62684-13A00-000 6268413A00000

Not available

13

BOLT

62313-13A00-000 6231313A00000

Not available

14

NUT

08319-31087-000 0831931087000

Not available

15

BOLT, LOWER

09103-08068-000 0910308068000

Not available

16

WASHER (8.1X19X2.3)

09160-08042-000 0916008042000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SHOCK ABSORBER LINKAGE of your Suzuki of TS-X. Let us know if you have any questions.
