FRONT MASTER CYLINDER (MODEL M / N)

SWINGARM (MODEL F) FOR SUZUKI QUADRACER 250 1985

SWINGARM (MODEL G) REFER TO FIG.58 (I- 4) FOR MODEL H/J/K/L

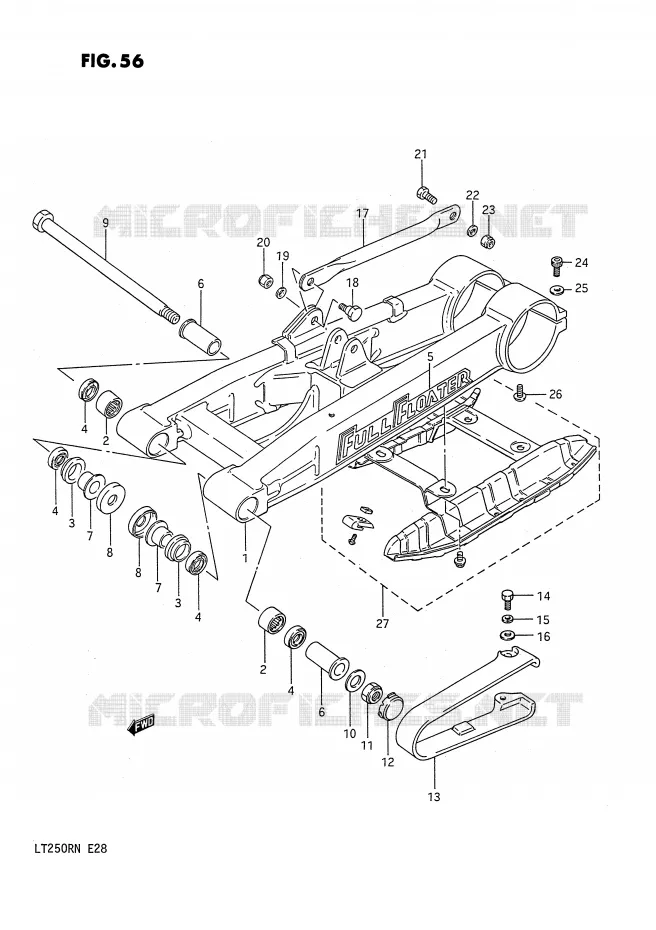

SWINGARM (MODEL F) Suzuki QUAD 250 QUADRACER 1985 LT250RF(E28)
1
DISCONTINUED

61000-19A00-000   6100019A00000

6100019A00000
Not available
2
BEARING SWING ARM
BEARING

09263-20041-000   0926320041000

0926320041000

Unit Price

3
DISCONTINUE

61261-40402-000  

6126140402000
Not available
4
KK SHAFT OIL SEAL

09285-20005-000  

09283-20031-000
 0928520005000

Unit Price

5
DISCONTINUED

68381-19A00-97J   6838119A0097J

6838119A0097J
Not available
6
DISCONTINUE
SPACER

61251-19A00-000   6125119A00000

6125119A00000
Not available
7
DISCONTINUE
SPACER, INNER

61252-14100-000   6125214100000

6125214100000
Not available
8
SEAL, DUST

61262-40400-000  

61262-40401-000
 6126240400000

Unit Price

9
DISCONTINUE
SHAFT

61211-19A00-000   6121119A00000

6121119A00000
Not available
10
PIVOT SHAFT WASHER<br />WASHER
PIVOT SHAFT WASHER
WASHER

09160-14009-000   0916014009000

0916014009000

Unit Price

11
NUT 14MM

09159-14013-000  

09159-14019-000
 0915914013000

Unit Price

12
DISCONTINUE
CAP (BLUE)

61222-13A00-19F   6122213A0019F

6122213A0019F
Not available
13
DISCONTINUE
BUFFER

61273-19A01-000   6127319A01000

6127319A01000
Not available
14
BOLT

01107-06127-000  

01500-06127-000
 0110706127000

Unit Price

15
WASHER, LOCK

08321-21067-000  

08321-01067-000
 0832121067000

Unit Price

16
CLUTCH REL WASHER<br />WASHER
CLUTCH REL WASHER
WASHER

09160-06019-000   0916006019000

0916006019000

Unit Price

17
TORQUE LINK, REAR (PEARL)

64311-19A00-126   6431119A00126

6431119A00126
Not available
18
DISCONTINUE
BOLT, FRONT

09111-08061-000   0911108061000

0911108061000
Not available
19
WASHER

08322-11088-000  

08322-01087-000
 0832211088000

Unit Price

20
NUT

08319-21088-000  

08319-2108A-000
 0831921088000

Unit Price

21
BOLT
BOLT, REAR

09100-10230-000   0910010230000

0910010230000

Unit Price

22
WASHER

08322-11107-000  

08322-01107-000
 0832211107000

Unit Price

23
FINAL GEAR CASE NUT<br />NUT
FINAL GEAR CASE NUT
NUT

09159-10027-000   0915910027000

0915910027000

Unit Price

24
DISCONTINUE
BOLT

09106-08056-000   0910608056000

0910608056000
Not available
25
WASHER
WASHER

09160-08090-000   0916008090000

0916008090000

Unit Price

26
SCREW
SCREW

09125-08003-000   0912508003000

0912508003000

Unit Price

27
DISCONTINUE
DISCONTINUED

61300-19843-000   6130019843000

6130019843000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM (MODEL F) of your Suzuki of QUADRACER. Let us know if you have any questions.
