WINDSCREEN (MODEL K1 / K2)

FOOTREST (MODEL W / X) FOR SUZUKI BURGMAN 250 2002

FOOTREST (MODEL Y) REFER TO FIG.39B(H-10) FOR MODEL K1/K2

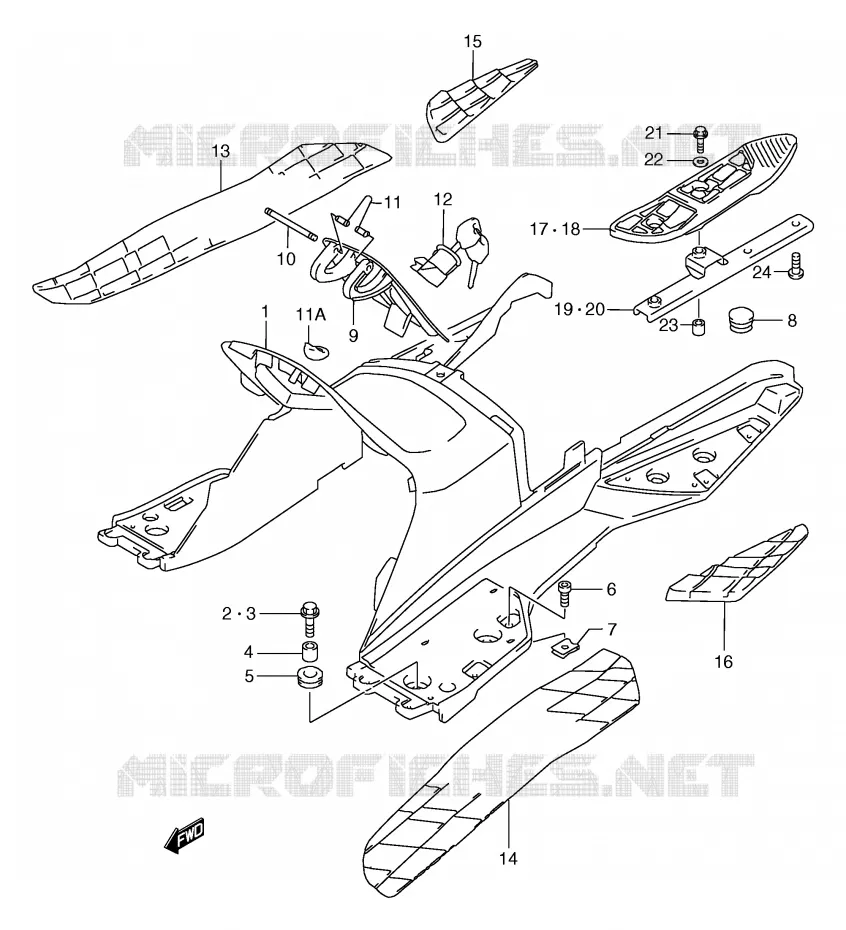

FOOTREST (MODEL W/X) Suzuki SCOOTER 250 BURGMAN 2002 AN250K2(E2)
1
SHIELD, LEG REAR (GRAY)

48121-14F00-Y0J   4812114F00Y0J

4812114F00Y0J
Not available
2
BOLT (6X25)
BOLT (6X25)

09116-06131-000   0911606131000

0911606131000

Unit Price

3
BOLT(8X30)
BOLT

09116-08101-000   0911608101000

0911608101000

Unit Price

4
SPACER,8.5X12X11<br />SPACER
SPACER, 8.5X12X11
SPACER

09180-08189-000   0918008189000

0918008189000

Unit Price

5
FUEL TANK CUSHIO****

09320-11015-000  

09320-11008-000
 0932011015000

Unit Price

6
SCREW

03541-05123-000  

03541-0512B-000
 0354105123000

Unit Price

7
NUT
NUT

09148-05020-000   0914805020000

0914805020000

Unit Price

8
CAP

09250-10012-000   0925010012000

0925010012000
Not available
9
LID, FUEL (GRAY)

48125-14F00-Y0J   4812514F00Y0J

4812514F00Y0J
Not available
10
DAMPER, FUEL LID

48126-14F00-000   4812614F00000

4812614F00000
Not available
11
SPRING, FUEL LID

48127-14F00-000   4812714F00000

4812714F00000
Not available
11A
CUSHION, LID

48128-14F00-000   4812814F00000

4812814F00000
Not available
12
LOCK SET, FUEL LID (GRAY)

92100-14830-Y0J   9210014830Y0J

9210014830Y0J
Not available
13
MAT, FLOOR FRONT RH (GRAY)

48211-14F00-Y0J   4821114F00Y0J

4821114F00Y0J
Not available
14
MAT, FLOOR FRONT LH (GRAY)

48221-14F00-Y0J   4822114F00Y0J

4822114F00Y0J
Not available
15
MAT, FLOOR REAR RH (GRAY)

48231-14F00-Y0J   4823114F00Y0J

4823114F00Y0J
Not available
16
MAT, FLOOR REAR LH (GRAY)

48241-14F00-Y0J   4824114F00Y0J

4824114F00Y0J
Not available
17
BOARD, PILLION FOOTREST RH

43611-14F00-000   4361114F00000

4361114F00000
Not available
18
BOARD, PILLION FOOTREST LH

43711-14F00-000   4371114F00000

4371114F00000
Not available
19
BRACE, PILLION BOARD RH

43620-14F00-000   4362014F00000

4362014F00000
Not available
20
BRACE, PILLION BOARD LH

43720-14F00-000   4372014F00000

4372014F00000
Not available
21
BOLT

01550-08503-000  

01550-0850A-000
 0155008503000

Unit Price

22
WASHER

09160-08124-000  

09160-08054-000
 0916008124000

Unit Price

23
SPACER,8.5X12X11<br />SPACER
SPACER, 8.5X12X11
SPACER

09180-08189-000   0918008189000

0918008189000

Unit Price

24
SCREW

03541-05163-000  

03541-0516B-000
 0354105163000

Unit Price

25
BOARD SET, PILLION FOOTREST

43600-15830-000   4360015830000

4360015830000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FOOTREST (MODEL W/X) of your Suzuki of BURGMAN. Let us know if you have any questions.
