FRONT MASTER CYLINDER

SHOCK ABSORBER LINKAGE (MODEL W / X) FOR SUZUKI BURGMAN 250 2002

SHOCK ABSORBER LINKAGE (MODEL Y) REFER TO FIG.58B(L-9) FOR MODEL K1/K2

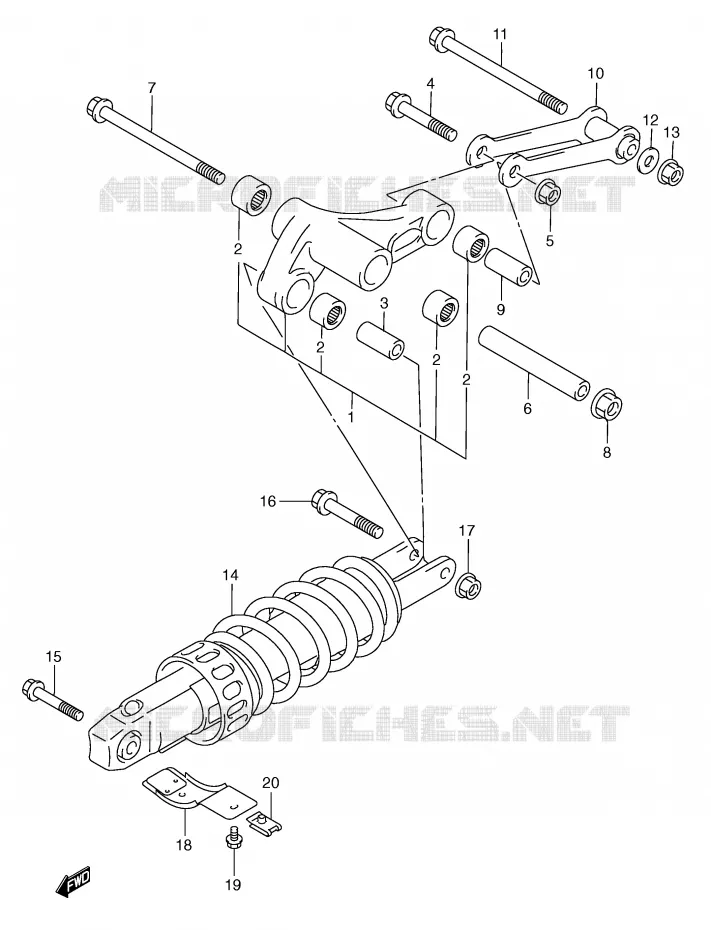

SHOCK ABSORBER LINKAGE (MODEL W/X) Suzuki SCOOTER 250 BURGMAN 2002 AN250K2(E2)
1
62610-14811
LEVER SET, REAR CUSHION

62610-14810-000   6261014810000

6261014810000
Not available
2
BEARING
BEARING

09263-17034-000  

09263-17057-000
 0926317034000

Unit Price

3
SPACER,RR CUSHION LEVER<br />SPACER, FRONT (10X17X30)
SPACER, RR CUSHION LEVER
SPACER, FRONT (10X17X30)

62684-40A10-000   6268440A10000

6268440A10000

Unit Price

4
BOLT(10X54)<br />BOLT, FRONT (10X54)
BOLT(10X54)
BOLT, FRONT (10X54)

09103-10101-000   0910310101000

0910310101000

Unit Price

5
NUT
NUT

08319-31107-000   0831931107000

0831931107000

Unit Price

6
SPACER,RR CUSHION LEVER CTR<br />SPACER, CENTER (12X17X94)
SPACER, RR CUSHION LEVER CTR
SPACER, CENTER (12X17X94)

62626-33D00-000   6262633D00000

6262633D00000

Unit Price

7
DISCONTINUE
BOLT, CENTER (12X131)

62657-31301-000   6265731301000

6265731301000
Not available
8
NUT

08319-31128-000  

08319-3112A-000
 0831931128000

Unit Price

9
SPACER,RR CUSHION LEVER<br />SPACER, LOWER (10X17X30)
SPACER, RR CUSHION LEVER
SPACER, LOWER (10X17X30)

62684-40A10-000   6268440A10000

6268440A10000

Unit Price

10
ROD, CUSHION LEVER

62640-14F00-000   6264014F00000

6264014F00000
Not available
11
BOLT(10X132)
BOLT, ROD (10X132)

09103-10198-000   0910310198000

0910310198000

Unit Price

12
WASHER

09160-10060-000  

09160-10039-000
 0916010060000

Unit Price

13
FINAL GEAR CASE NUT<br />NUT
FINAL GEAR CASE NUT
NUT

09159-10027-000   0915910027000

0915910027000

Unit Price

14
ABSORBER ASSY, REAR SHOCK

62100-14F10-000   6210014F10000

6210014F10000
Not available
15
BOLT 10X48<br />BOLT, FRONT (10X48)
BOLT 10X48
BOLT, FRONT (10X48)

09103-10126-000   0910310126000

0910310126000

Unit Price

16
BOLT, REAR (10X58)

09103-10026-000   0910310026000

0910310026000
Not available
17
NUT
NUT

08319-31107-000   0831931107000

0831931107000

Unit Price

18
PLATE, ABSORBER UNDER

62330-14F00-000   6233014F00000

6233014F00000
Not available
19
SCREW

02162-05103-000  

02162-0510A-000
 0216205103000

Unit Price

20
NUT,COWL<br />NUT, PLATE
NUT, COWL
NUT, PLATE

94484-24F00-000   9448424F00000

9448424F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SHOCK ABSORBER LINKAGE (MODEL W/X) of your Suzuki of BURGMAN. Let us know if you have any questions.
