Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HANDLEBAR (MODEL K3) REFER TO FIG.45A(I- 8) FOR MODEL K4/K5/K6

HANDLEBAR (MODEL K4 / K5 / K6) FOR SUZUKI BURGMAN 250 2003

LEVERS - HANDGRIPS (MODEL K3) REFER TO FIG.46A(I-10) FOR MODEL K4/K5/K6

Item numbers

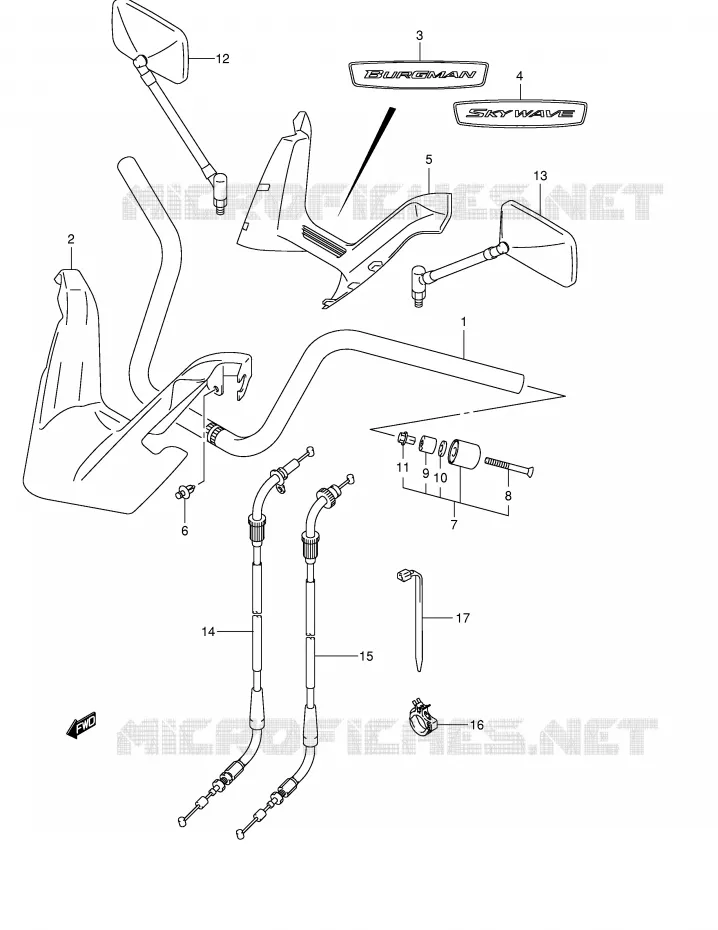

HANDLEBAR (MODEL K4/K5/K6) Suzuki SCOOTER 250 BURGMAN 2003 AN250K3(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
1
DISCONTINUE
HANDLEBAR

56111-14G10-000   5611114G10000

5611114G10000
Not available
2
DISCONTINUE
COVER, HANDLE FRONT (GRAY)

56311-14G01-Y0J   5631114G01Y0J

5631114G01Y0J
Not available
3
EMBLEM, HANDLE COVER
EMBLEM

68281-15F50-000   6828115F50000

6828115F50000

Unit Price

4
EMBLEM

68281-15F40-000   6828115F40000

6828115F40000
Not available
5
COVER, HANDLE RR
COVER, HANDLE REAR (GRAY)

56321-14G01-Y0J   5632114G01Y0J

5632114G01Y0J

Unit Price

6
CLIP (BLACK)
CLIP (BLACK)

09409-06314-5PK   09409063145PK

09409063145PK

Unit Price

7
BALANCER SET, HANDLEBAR

56200-14830-000  

56200-14833-000
 5620014830000

Unit Price

8
SCREW

02122-06503-000  

02122-0650B-000
 0212206503000

Unit Price

9
EXPANDER, HANDLE BALANCER

56272-10G00-000  

56272-10G01-000
 5627210G00000

Unit Price

10
WASHER, 6.5X16X4
WASHER

09160-06131-000   0916006131000

0916006131000

Unit Price

11
NUT, HANDLE BALANCER

56273-10G00-000  

56273-10G10-000
 5627310G00000

Unit Price

12
MIRROR ASSY, RR VIEW, R

56500-03F70-000  

56500-03FD1-000
 5650003F70000

Unit Price

13
56600-03FD0
MIRROR ASSY, REAR VIEW LH

56600-03F70-000  

5660003F70000
Not available
14
CABLE ASSY, THROTTLE NO.1

58300-14G02-000  

58300-14G03-000
 5830014G02000

Unit Price

15
CABLE ASSY, THROTTLE NO.2

58300-14G12-000  

58300-14G13-000
 5830014G12000

Unit Price

16
CLAMP

09403-20403-000   0940320403000

0940320403000

Unit Price

16
CLAMP

09403-25401-000   0940325401000

0940325401000

Unit Price

17
CLAMP
CLAMP

09407-25401-000   0940725401000

0940725401000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDLEBAR (MODEL K4/K5/K6) of your Suzuki of BURGMAN. Let us know if you have any questions.
