LEVERS - HANDGRIPS (MODEL K3) REFER TO FIG.46A(I-10) FOR MODEL K4/K5/K6

LEVERS - HANDGRIPS (MODEL K4 / K5 / K6) FOR SUZUKI BURGMAN 250 2003

FRONT FORK

Item numbers

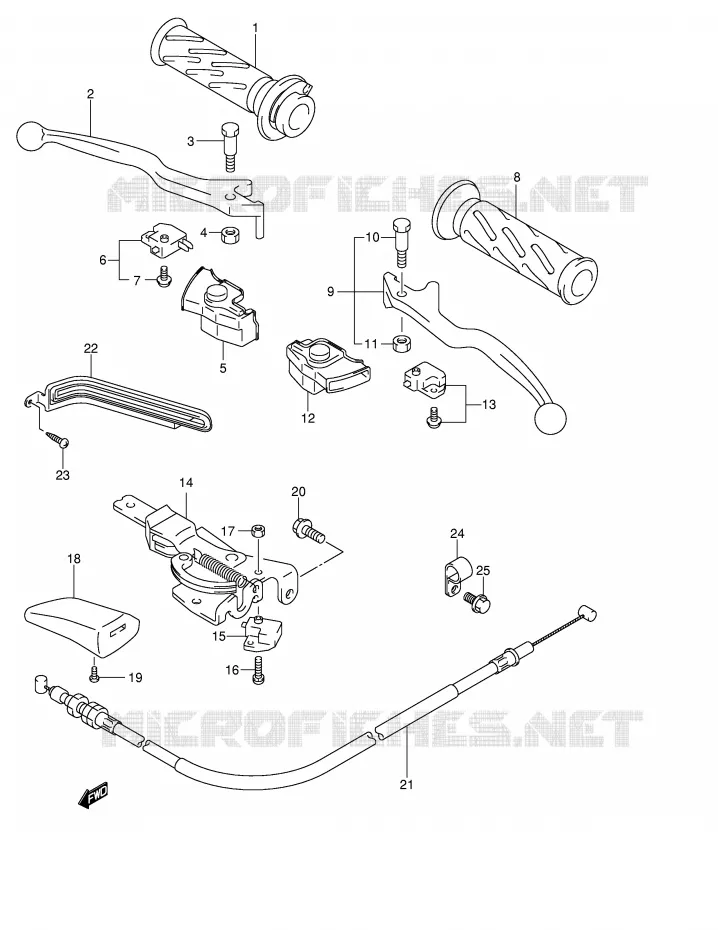

LEVERS - HANDGRIPS (MODEL K4/K5/K6) Suzuki SCOOTER 250 BURGMAN 2003 AN250K3(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
17
18
19
20
21
22
23
24
25
1
GRIP,THROTTLE
GRIP, THROTTLE

57110-46E01-000  

57110-46E02-000
 5711046E01000

Unit Price

2
LEVER, FR BRAKE
LEVER, FRONT BRAKE

57421-14F00-000   5742114F00000

5742114F00000

Unit Price

3
BOLT, BRAKE LEVER PIVOT
BOLT, PIVOT

57431-04F00-000   5743104F00000

5743104F00000

Unit Price

4
NUT, LEVER PIVOT
NUT, PIVOT

57433-09F00-000   5743309F00000

5743309F00000

Unit Price

5
COVER, BRAKE LEVER, R

57341-14GA0-000  

57341-14GA1-000
 5734114GA0000

Unit Price

6
SWITCH ASSY, STOP

57460-14J00-000  

57460-14J02-000
 5746014J00000

Unit Price

7
SCREW,WITH WASHER(4X12)<br />SCREW
SCREW, WITH WASHER(4X12)
SCREW

57465-17C00-000   5746517C00000

5746517C00000

Unit Price

8
GRIP, L(BLACK)

57211-22D01-000  

57211-22D02-291
 5721122D01000

Unit Price

9
LEVER ASSY, RR BRAKE
LEVER ASSY, REAR BRAKE

57500-14F00-000   5750014F00000

5750014F00000

Unit Price

10
BOLT, BRAKE LEVER PIVOT
BOLT, PIVOT

57431-04F00-000   5743104F00000

5743104F00000

Unit Price

11
NUT

08319-21063-000  

08319-2106A-000
 0831921063000

Unit Price

12
COVER, BRAKE LEVER, L

57541-14GA0-000  

57541-14GA1-000
 5754114GA0000

Unit Price

13
SWITCH ASSY, RR BRAKE

57560-14J00-000  

57560-14J02-000
 5756014J00000

Unit Price

14
DISCONTINUE

57810-14G00-000  

5781014G00000
Not available
15
SWITCH ASSY, RR BRAKE

57560-14F11-000  

57560-14J02-000
 5756014F11000

Unit Price

15
57560-14J02
SWITCH ASSY, BRAKE LOCK

57560-14F01-000   5756014F01000

5756014F01000
Not available
16
SCREW, BRAKE LOCK SWITCH
SCREW, SWITCH

57852-10G00-000   5785210G00000

5785210G00000

Unit Price

17
NUT
NUT, KNOB

57853-10G00-000   5785310G00000

5785310G00000

Unit Price

18
KNOB, BRAKE LOCK

57820-14G00-000   5782014G00000

5782014G00000

Unit Price

19
SCREW

02112-04103-000  

02112-0410A-000
 0211204103000

Unit Price

20
01550-0616A
BOLT

01550-06163-000  

0155006163000
Not available
21
CABLE, BRAKE LOCK

58810-14G00-000   5881014G00000

5881014G00000

Unit Price

22
PLATE, LEVER SEAL

57950-14G00-000   5795014G00000

5795014G00000

Unit Price

23
SCREW

03512-05123-000  

03511-0512B-000
 0351205123000

Unit Price

24
PROTECTOR, STRTR CABL
CLAMP

09403-14204-000  

0940314204000
Not available
25
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the LEVERS - HANDGRIPS (MODEL K4/K5/K6) of your Suzuki of BURGMAN. Let us know if you have any questions.
