WIRING HARNESS (MODEL K1 / K2 / K4)

BACKUP LAMP (OPTIONAL:E28) FOR SUZUKI KINGQUAD 300 2000

* CATALOG PREFACE *

Item numbers

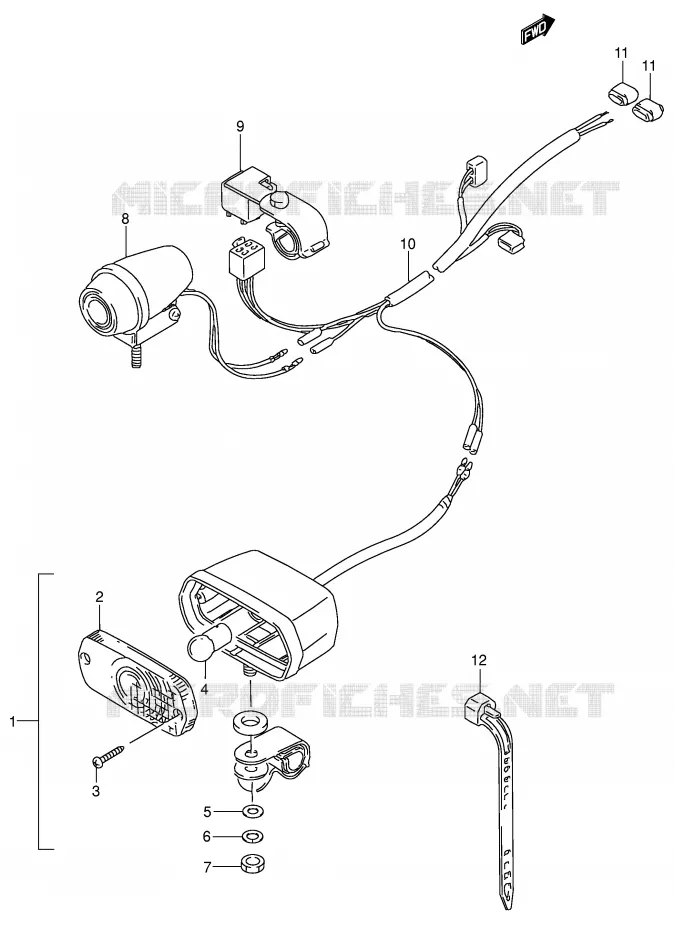

BACKUP LAMP (OPTIONAL:E28) Suzuki QUAD 300 KINGQUAD 2000 LT-F300FY(E3/E28)
1
2
3
4
5
6
7
8
9
10
11
11
12
1
LAMP ASSY, BACKUP

36250-19B00-000   3625019B00000

3625019B00000

Unit Price

2
LENS, BACK UP LAMP
LENS

36252-19B00-000   3625219B00000

3625219B00000

Unit Price

3
SCREW

03512-04209-000   0351204209000

0351204209000
Not available
4
09471-12142
BULB (12V, 10W)

09471-12003-000  

0947112003000
Not available
5
WASHER
WASHER

08322-01087-000   0832201087000

0832201087000

Unit Price

6
8 MM LOCK WASHER<br />LOCK WASHER
8 MM LOCK WASHER
LOCK WASHER

08321-01087-000   0832101087000

0832101087000

Unit Price

7
NUT
NUT

08310-00087-000   0831000087000

0831000087000

Unit Price

8
BUZZER ASSY, BACKUP

38751-19B00-000   3875119B00000

3875119B00000

Unit Price

9
RELAY ASSY, BACKUP

38752-19B00-000   3875219B00000

3875219B00000

Unit Price

10
WIRE, BACKUP LEAD
LEAD WIRE

36856-19B00-000   3685619B00000

3685619B00000

Unit Price

11
CONNECTOR, LEAD WIRE
CONNECTOR

36859-36590-000   3685936590000

3685936590000

Unit Price

12
BAND,WIRING HARNESS<br />CLAMP (L:125)
BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

99x
BACKUP LAMP & BUZZER SET

38700-19860-000   3870019860000

3870019860000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the BACKUP LAMP (OPTIONAL:E28) of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 300 KINGQUAD 2000
