SUSPENSION ARM (MODEL X / Y / K1) REFER TO FIG.48A(H-4) FOR MODEL K2/K4

SUSPENSION ARM (MODEL K2 / K4) FOR SUZUKI KINGQUAD 300 2000

STEERING LINKAGE - HUB (MODEL X / Y / K1) REFER TO FIG.49A(H-6) FOR MODEL K2/K4

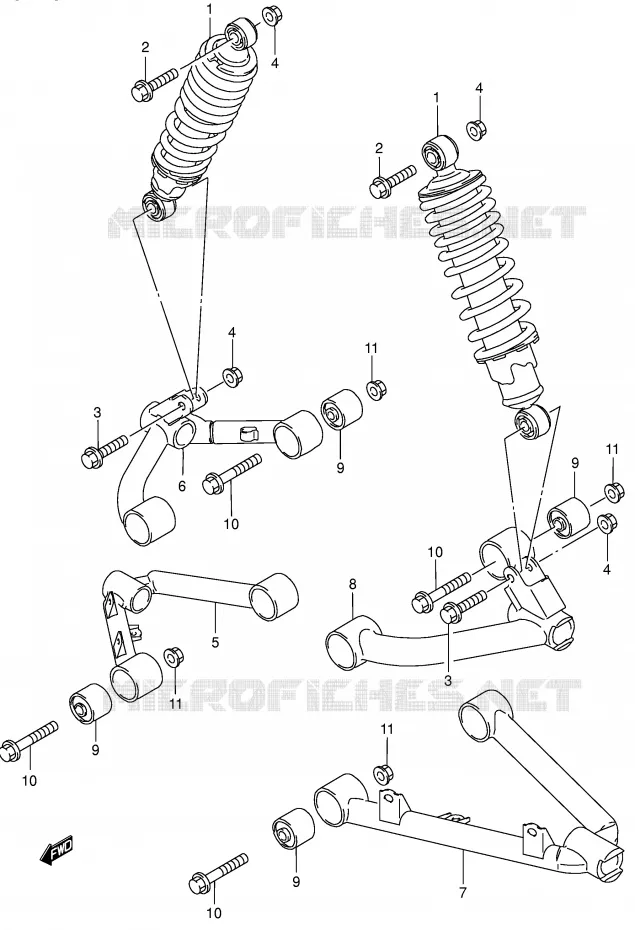

SUSPENSION ARM (MODEL K2/K4) Suzuki QUAD 300 KINGQUAD 2000 LT-F300FY(E3/E28)
1
ABSORBER ASSY, FR SHOCK
ABSORBER ASSY, FRONT SHOCK (BLACK)

52100-19B81-019   5210019B81019

5210019B81019

Unit Price

2
BOLT CALIPER<br />BOLT, SHOCK ABSORBER UPPER (10X37)
BOLT CALIPER
BOLT, SHOCK ABSORBER UPPER (10X37)

09103-10019-000   0910310019000

0910310019000

Unit Price

3
BOLT 10X48<br />BOLT, SHOCK ABSORBER LOWER (10X48)
BOLT 10X48
BOLT, SHOCK ABSORBER LOWER (10X48)

09103-10126-000   0910310126000

0910310126000

Unit Price

4
NUT
NUT

08319-31107-000   0831931107000

0831931107000

Unit Price

5
ARM, SUSPENSION LOWER RH

52410-39D10-000   5241039D10000

5241039D10000
Not available
6
52430-19B81
ARM, SUSPENSION UPPER RH

52430-19B80-000   5243019B80000

5243019B80000
Not available
7
ARM, SUSPENSION LOWER LH

52420-39D10-000   5242039D10000

5242039D10000
Not available
8
ARM, SUSPENSION UPR, L

52440-19B80-000  

52440-19B81-000
 5244019B80000

Unit Price

9
BUSH
BUSH, SUSPENSION ARM (10X35.1X38)

09319-10055-000   0931910055000

0931910055000

Unit Price

10
BOLT
BOLT, SUSPENSION ARM PIVOT (10X60)

09103-10107-000   0910310107000

0910310107000

Unit Price

11
NUT
NUT

08319-31107-000   0831931107000

0831931107000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SUSPENSION ARM (MODEL K2/K4) of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 300 KINGQUAD 2000

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 300 KINGQUAD 2000

Select your Suzuki 2000 model

300 KINGQUAD 2000 LT-F300FY(E3/E28)

Suzuki KINGQUAD

Displacement: 300 cc
Year: 2000
Model code LT-F300FY(E3 / E28)
4WD
