REAR FENDER (MODEL R / S / T)

SEAT FOR SUZUKI DR 350 1993

STARTER MOTOR (MODEL R / S) REFER TO FIG.17B(D-9) FOR MODEL T

Item numbers

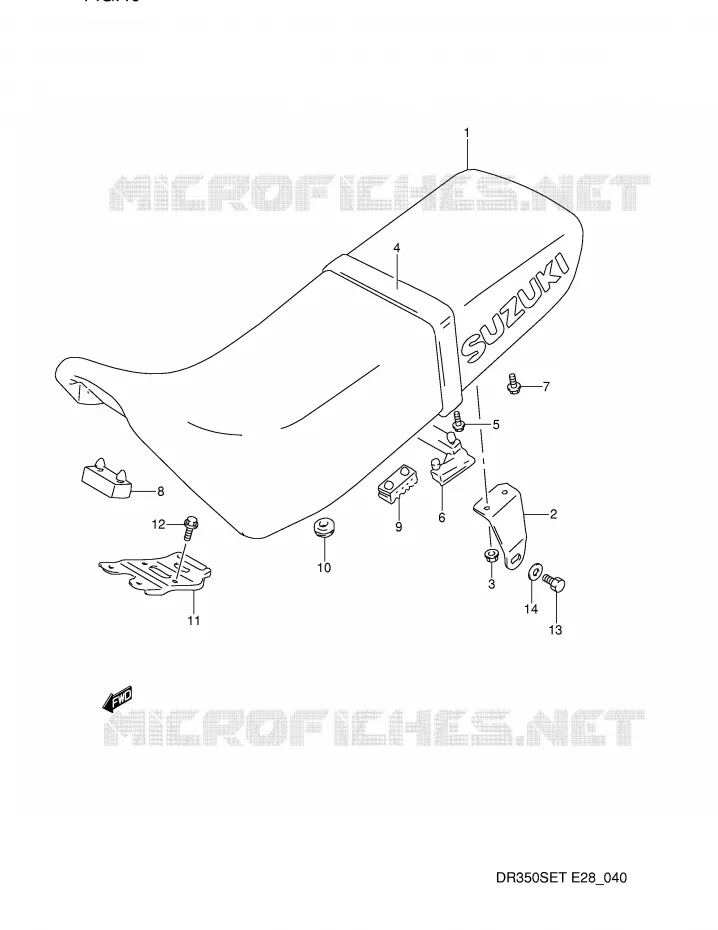

SEAT Suzuki MOTO 350 DR 1993 DR350SP(E28)

1

SEAT ASSY (BLUE/WHITE)

45100-15D10-9DD 4510015D109DD

Not available

1

SEAT ASSY, (PURPLE/WHITE)

45100-15D10-E5J 4510015D10E5J

Not available

2

DISCONTINUE
BRACKET, RH

45116-14D00-000 4511614D00000

Not available

2

DISCONTINUE
BRACKET, LH

45117-14D00-000 4511714D00000

Not available

3

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

4

BAND, SEAT (BLUE)

45180-15D10-4UZ 4518015D104UZ

Not available

4

DISCONTINUE
BAND, SEAT (PURPLE)

45180-15D10-R32 4518015D10R32

Not available

5

BOLT

01550-06203-000

01550-0620B-000

$4,97

Unit Price

6

CUSHION, BRACKET

45255-14D00-000 4525514D00000

Not available

7

BOLT

01550-06107-000

01550-06123-000

$3,97

Unit Price

8

SEAT CLAMP CUSHION
CUSHION, FRONT

09321-08006-000 0932108006000

$5,97

Unit Price

9

CUSHION, SEAT(40X20X15)
CUSHION, CENTER

45149-31300-000 4514931300000

$5,97

Unit Price

10

FRAME COVER CUSHION

09320-08013-000

09320-08509-000

$4,97

Unit Price

11

DISCONTINUE

45120-15D00-000

Not available

12

BOLT

01517-08126-000

01550-0812B-000

$4,97

Unit Price

13

BOLT

01107-08125-000

01500-08123-000

$3,97

Unit Price

13

BOLT

01550-08123-000

01550-0812B-000

$4,97

Unit Price

14

08322-0108A
WASHER, FRONT

08322-11084-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SEAT of your Suzuki of DR. Let us know if you have any questions.

Genuine parts for Suzuki 350 DR 1993
