CARBURETOR (MODEL L / M) REFER TO FIG.9A(C-4) FOR MODEL N/P

CARBURETOR (MODEL N / P) FOR SUZUKI DR 350 1993

CARBURETOR (MODEL R / S / T)

Item numbers

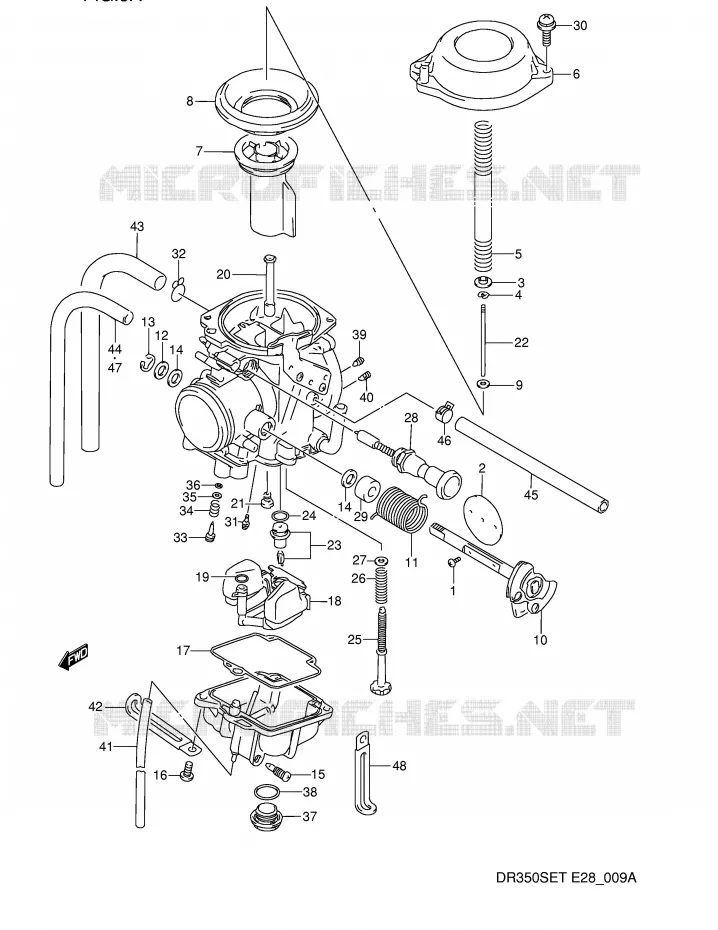

CARBURETOR (MODEL N/P) Suzuki MOTO 350 DR 1993 DR350SP(E28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
18
19
19
20
20
22
22
23
24
25
26
26
27
28
28
29
30
31
32
33
34
35
36
37
38
39
39
40
41
42
43
44
45
46
47
48
1
SCREW

13604-42A00-000  

13604-44080-000
 1360442A00000

Unit Price

2
VALVE, THROTTLE (115)

13551-45B00-000   1355145B00000

1355145B00000
Not available
3
RING
RING

13382-42A00-000   1338242A00000

1338242A00000

Unit Price

4
E RING

13394-01D00-000  

13394-40D20-000
 1339401D00000

Unit Price

5
SPRING

13417-44B00-000   1341744B00000

1341744B00000

Unit Price

6
COVER, DIAPHRAGM

13502-01D00-000   1350201D00000

1350201D00000

Unit Price

7
VALVE, PISTON

13551-44B10-000   1355144B10000

1355144B10000

Unit Price

8
DIAPHRAGM

13507-44B00-000  

13507-44B01-000
 1350744B00000

Unit Price

9
RING
RING

13387-47010-000   1338747010000

1338747010000

Unit Price

10
.SHAFT ASSY

13550-14E00-000   1355014E00000

1355014E00000
Not available
11
DISCONTINUE
SPRING

13268-31D00-000   1326831D00000

1326831D00000
Not available
12
GASKET,THROTTLE SHAFT<br />WASHER
GASKET, THROTTLE SHAFT
WASHER

13557-47070-000   1355747070000

1355747070000

Unit Price

13
E RING
E RING

13617-44080-000   1361744080000

1361744080000

Unit Price

14
SEAL
SEAL

13556-44B00-000   1355644B00000

1355644B00000

Unit Price

15
PLUG,DRAIN
PLUG, DRAIN

13247-13A00-000  

13247-02340-000
 1324713A00000

Unit Price

16
SCREW
SCREW

02112-05127-000   0211205127000

0211205127000

Unit Price

17
GASKET,FLOAT CAHMBER<br />GASKET, FLOAT CHAMBER
GASKET, FLOAT CAHMBER
GASKET, FLOAT CHAMBER

13258-44B00-000   1325844B00000

1325844B00000

Unit Price

18
FLOAT ASSY

13240-17E10-000   1324017E10000

1324017E10000

Unit Price

18
DISCONTINUE
FLOAT ASSY

13240-14D20-000   1324014D20000

1324014D20000
Not available
19
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

19
O RING
O RING

13374-46710-000   1337446710000

1337446710000

Unit Price

20
JET, NEEDLE
JET, NEEDLE (O-5)

09494-00673-000   0949400673000

0949400673000

Unit Price

20
DISCONTINUE

09494-00691-000  

0949400691000
Not available
21
JET, MAIN
JET, MAIN (135)

09491-27009-000   0949127009000

0949127009000

Unit Price

21
JET, MAIN
JET, MAIN (127.5)

09491-25011-000   0949125011000

0949125011000

Unit Price

22
DISCONTINUE
NEEDLE, JET (5CD56-4)

13383-14D10-000   1338314D10000

1338314D10000
Not available
22
DISCONTINUE
NEEDLE, JET (5CD18-4)

13383-14D60-000   1338314D60000

1338314D60000
Not available
23
VALVE ASSY, NEEDLE

13370-44B00-000  

13370-02D01-000
 1337044B00000

Unit Price

24
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

25
DISCONTINUE<br />ADJUSTER
DISCONTINUE
ADJUSTER

13267-14D10-000   1326714D10000

1326714D10000
Not available
26
SPRING
SPRING

13271-33C00-000   1327133C00000

1327133C00000

Unit Price

26
SPRING
SPRING

13375-14D10-000   1337514D10000

1337514D10000

Unit Price

27
WASHER
WASHER

13427-38300-000   1342738300000

1342738300000

Unit Price

28
PLUNGER ASSY

13411-14E00-000  

13411-14E10-000
 1341114E00000

Unit Price

28
.PLUNGER ASSY

13441-14E00-000   1344114E00000

1344114E00000
Not available
29
DISCONTINUE<br />RING
DISCONTINUE
RING

13574-28A00-000   1357428A00000

1357428A00000
Not available
30
SCREW

13602-34390-000  

02112-75163-000
 1360234390000

Unit Price

31
JET,PILOT<br />JET, PILOT (37.5)
JET, PILOT
JET, PILOT (37.5)

09492-35010-000   0949235010000

0949235010000

Unit Price

32
.CLIP

13671-48B10-000   1367148B10000

1367148B10000
Not available
33
SCREW,PILOT<br />SCREW, PILOT (2.0)
SCREW, PILOT
SCREW, PILOT (2.0)

13279-47070-000   1327947070000

1327947070000

Unit Price

34
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

35
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

36
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

37
CAP, DRAIN

13247-32210-000   1324732210000

1324732210000

Unit Price

38
O RING, DRAIN PLUG
O RING

13249-41310-000   1324941310000

1324941310000

Unit Price

39
JET, AIR
JET, AIR (1.2)

09493-24007-000   0949324007000

0949324007000

Unit Price

39
JET, AIR (1.3)
JET, AIR (1.3)

09493-26004-000   0949326004000

0949326004000

Unit Price

40
JET, AIR (0.6)
JET, AIR (0.6)

09493-60004-000   0949360004000

0949360004000

Unit Price

41
HOSE

09352-30503-300  

09352-30504-600
 0935230503300

Unit Price

42
CLAMP(L:80)

13671-05A20-000  

09404-06433-000
 1367105A20000

Unit Price

43
HOSE,(7X11X600)
HOSE, (7X11X600)

09352-70113-600  

09352-70119-600
 0935270113600

Unit Price

44
HOSE

09352-50823-300  

09352-50005-600
 0935250823300

Unit Price

45
VALVE ASSY, CHECK
HOSE (5X8X250)

13520-02C01-000   1352002C01000

1352002C01000

Unit Price

46
CLIP

13671-14E00-000   1367114E00000

1367114E00000

Unit Price

47
HOSE, 4.5X8.5X600

13684-36510-000  

09355-45855-600
 1368436510000

Unit Price

48
CLAMP(L:65)

09404-06402-000  

09404-06039-000
 0940406402000

Unit Price

99x
CARBURETOR ASSY

13200-14E70-000   1320014E70000

1320014E70000
Not available
99x
CARBURETOR ASSY

13200-14EF1-000   1320014EF1000

1320014EF1000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR (MODEL N/P) of your Suzuki of DR. Let us know if you have any questions.
