WIRING HARNESS (MODEL R / S) REFER TO FIG.28A(E-13) FOR MODEL T/V/W/X

WIRING HARNESS (MODEL T / V / W / X) FOR SUZUKI DR 350 1994

SWITCHES (MODEL R / S) REFER TO FIG.29A(E-14) FOR MODEL T/V/W/X

Item numbers

HARNESS, WIRING

36610-15D80-000 3661015D80000

Not available

HARNESS, WIRING

36610-15DA0-000 3661015DA0000

Not available

CAP, BATTERY PLUS

33624-15D00-000 3362415D00000

$7,97

Unit Price

DISCONTINUE
COVER, WIRE HARNESS

36619-15D11-000 3661915D11000

Not available

COVER, WIRING HARNESS

36618-15D20-000

36618-15D21-000

$13,97

Unit Price

BOLT

01550-06103-000

01550-0610A-000

$3,97

Unit Price

WIRE, REGULATOR EARTH LEAD
LEAD WIRE, IGNITION

36851-05D00-000 3685105D00000

$6,97

Unit Price

CLAMP(L:65)

09404-06432-000

09404-06039-000

$3,97

Unit Price

CLAMP, L:95

09404-06433-000

09404-06436-000

$5,97

Unit Price

CLAMP (L:97)

09404-08207-000 0940408207000

$2,97

Unit Price

CLAMP
CLAMP (L:33)

09407-03401-000 0940703401000

$4,97

Unit Price

BAND, WIRING HARNESS
CLAMP

09407-14403-000 0940714403000

$3,97

Unit Price

CLAMP
CLAMP (L:145)

09407-14407-000 0940714407000

$5,97

Unit Price

CLAMP

09407-18403-000

09407-25401-000

$7,97

Unit Price

SWITCH ASSY, IGNITION
LOCK ASSY, STEERING

37110-03D10-000 3711003D10000

$93,97

Unit Price

DISCONTINUE
LOCK ASSY, STEERING

37110-03D01-000 3711003D01000

Not available

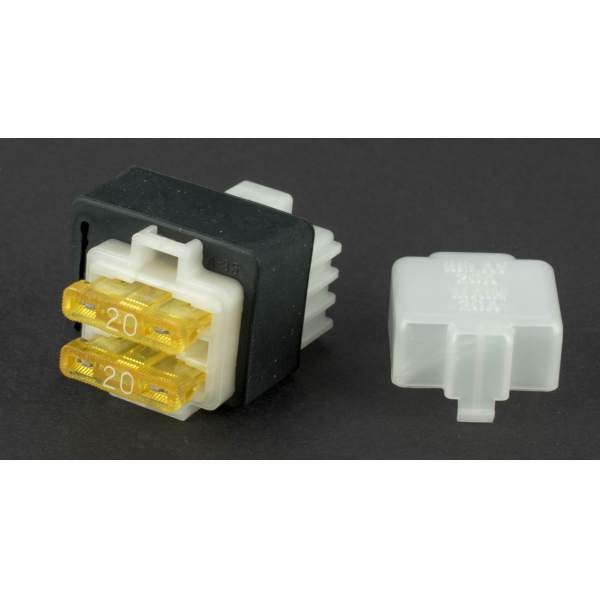

BOX ASSY, FUSE
FUSE ASSY

36740-24B01-000 3674024B01000

$19,97

Unit Price

FUSE (20A)

09481-20101-000 0948120101000

$2,97

Unit Price

SWITCH ASSY, STOP LAMP
SWITCH ASSY, STOP

37740-31D00-000 3774031D00000

$22,97

Unit Price

SPRING

09443-06080-000 0944306080000

$10,97

Unit Price

RELAY ASSY
RELAY, SIDE STAND

38740-24X50-000 3874024X50000

$38,97

Unit Price

DISCONTINUE
BRACKET, RELAY

36744-14D01-000 3674414D01000

Not available

SWITCH ASSY, SIDE STAND

37840-12X50-000

37840-12X52-000

$93,97

Unit Price

PROTECTOR, SIDE STAND SWITCH
PROTECTOR

37841-14D00-000 3784114D00000

$9,97

Unit Price

SCREW

02142-06203-000

02142-0620A-000

$2,97

Unit Price

DISCONTINUE

38500-14D01-000

Not available

HORN ASSY

38500-14D11-000 3850014D11000

Not available

HORN ASSY

38500-15D10-000 3850015D10000

Not available

BOLT

01550-06163-000

01550-0616A-000

$3,97

Unit Price

KEY, BLANK(TYPE:C)
KEY, BLANK (TYPE C)

37146-03A00-000 3714603A00000

$8,97

Unit Price

KEY, BLANK(TYPE:D)
KEY, BLANK (TYPE D)

37146-03A10-000 3714603A10000

$8,97

Unit Price

KEY, BLANK(TYPE:E)
KEY, BLANK (TYPE E)

37146-03A20-000 3714603A20000

$8,97

Unit Price

KEY, BLANK(TYPE:F)
KEY, BLANK (TYPE F)

37146-03A30-000 3714603A30000

$8,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS (MODEL T/V/W/X) of your Suzuki of DR. Let us know if you have any questions.
