CRANKCASE COVER

CRANKSHAFT FOR SUZUKI DR 350 1994

STARTER MOTOR CLUTCH

Item numbers

CRANKSHAFT ASSY

12200-14E00-000 1220014E00000

$967,97

Unit Price

ROD, CONNECTING

12161-14D00-000 1216114D00000

$137,97

Unit Price

PIN, CRANK

12210-14D02-000

12210-14D03-000

$86,97

Unit Price

BEARING
BEARING (34X43X22)

09263-34005-000 0926334005000

$89,97

Unit Price

WASHER 34X52X1
WASHER

09160-34003-000 0916034003000

$11,97

Unit Price

CRANKSHAFT, R
CRANKSHAFT, RH

12221-14D01-000 1222114D01000

$345,97

Unit Price

CRANKSHAFT, L
L.H. CRANKSHAFT

12261-14E00-000 1226114E00000

$378,97

Unit Price

GEAR, CRANK BAL DRIVE(NT:37)
GEAR, BALANCER DRIVE (NT:37)

12661-14D00-000 1266114D00000

$150,97

Unit Price

04221-08149-000 0422108149000

$3,97

Unit Price

BEARING(30X72X19)
BEARING, RH (30X72X19)

09262-30077-000 0926230077000

Not available

BEARING 35X72X17

09262-35039-000

09262-35038-000

$68,97

Unit Price

OIL SEAL
OIL SEAL, RH (14X24X6)

09282-14003-000 0928214003000

$14,97

Unit Price

RETAINER, BEARING
PLATE, RH

24742-18A00-000 2474218A00000

$5,97

Unit Price

SCREW

02112-06123-000

02112-3612A-000

$3,97

Unit Price

SPROCKET, CAM CHAIN DRIVE

12731-14D00-000 1273114D00000

$82,97

Unit Price

GEAR, PRIMARY DRIVE
GEAR, PRIMARY DRIVE (NT:22)

21111-14D01-000 2111114D01000

$69,97

Unit Price

DISCONTINUE

21111-15D20-000

Not available

DISCONTINUE

16321-15D00-000

Not available

NUT

09140-18012-000 0914018012000

$13,97

Unit Price

PRI DRIVE GR WAS****
LOCK WASHER

09164-18001-000 0916418001000

$5,97

Unit Price

KEY, PRIM DR GR
KEY, GEAR

09421-05009-000 0942105009000

$13,97

Unit Price

PISTON

12111-14D03-0F0 1211114D030F0

$170,97

Unit Price

RING SET, PISTON

12140-14D10-000 1214014D10000

$118,97

Unit Price

PIN, PISTON

12151-24A00-000 1215124A00000

$25,97

Unit Price

CIRCLIP PISTON PIN
CIRCLIP

09381-20004-000 0938120004000

$2,97

Unit Price

PISTON SET (OS:0.5)

12100-14D01-050 1210014D01050

$252,97

Unit Price

DISCONTINUE
PISTON SET (OS:1.0)

12100-14D01-100 1210014D01100

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

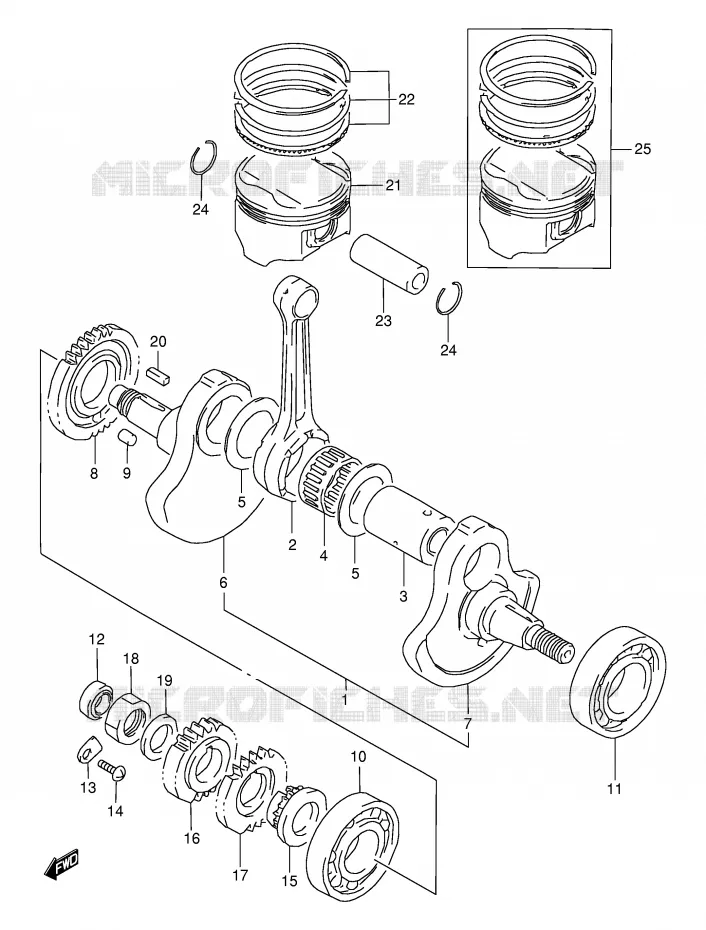

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of DR. Let us know if you have any questions.
