CRANKCASE

CRANKCASE COVER FOR SUZUKI BANDIT 400 1997

OIL PAN - OIL PUMP

Item numbers

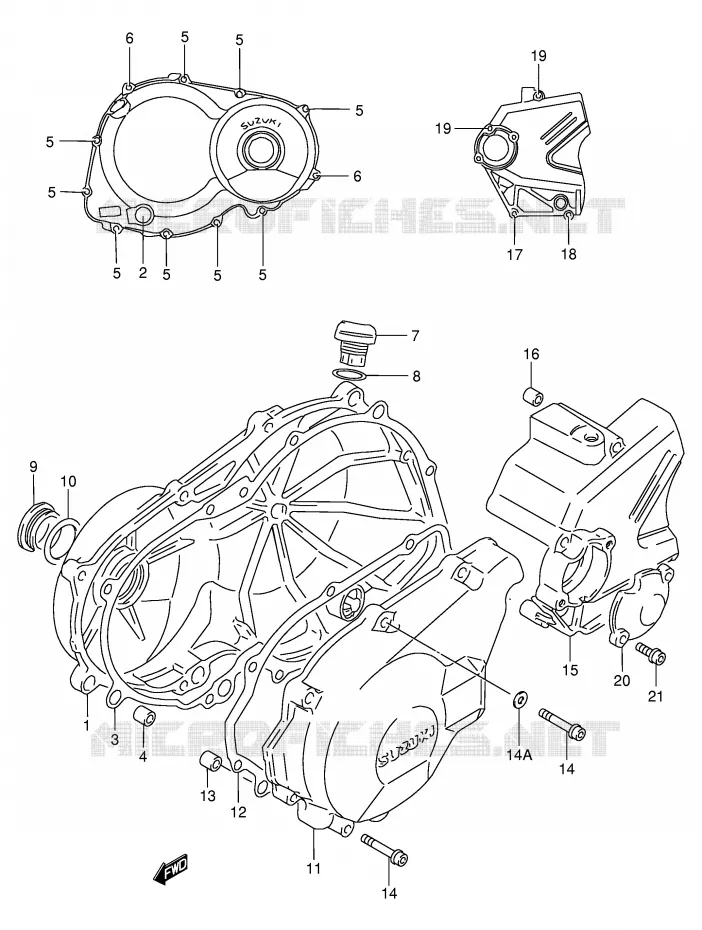

CRANKCASE COVER Suzuki MOTO 400 BANDIT 1997 GSF400VV(E30)
1
2
3
4
5
5
5
5
5
5
5
5
5
6
6
7
8
9
10
11
12
13
14
14
14A
15
16
17
18
19
19
20
21
1
COVER, CLUTCH

11340-33D20-000   1134033D20000

1134033D20000
Not available
2
LENS, OIL LEVEL CHECK
LENS, OIL LEVEL CHECK

11971-45010-000   1197145010000

1197145010000

Unit Price

3
GASKET, CLUTCH COVER
GASKET

11482-32C11-000   1148232C11000

1148232C11000

Unit Price

4
PIN
PIN

04211-09189-000   0421109189000

0421109189000

Unit Price

5
BOLT

07130-06253-000  

07130-0625B-000
 0713006253000

Unit Price

6
BOLT

07130-06353-000  

07130-0635B-000
 0713006353000

Unit Price

7
PLUG, OIL FILLER
PLUG, OIL FILLER

11971-12C51-000   1197112C51000

1197112C51000

Unit Price

8
O-RING,OIL FILLER<br />O RING (D:3.1,ID:16.8)
O-RING, OIL FILLER
O RING (D:3.1, ID:16.8)

09280-17003-000   0928017003000

0928017003000

Unit Price

9
PLUG,SHAFT HOLE<br />PLUG
PLUG, SHAFT HOLE
PLUG

09259-36016-20H   092593601620H

092593601620H

Unit Price

10
O-RING,CRANK SHAFT<br />O RING (D:3.1,ID:32.7)
O-RING, CRANK SHAFT
O RING (D:3.1, ID:32.7)

09280-33004-000   0928033004000

0928033004000

Unit Price

11
COVER, STARTER GEAR

11351-10D20-000   1135110D20000

1135110D20000
Not available
12
GASKET, STARTER GEAR COVER
GASKET

11483-30B10-000   1148330B10000

1148330B10000

Unit Price

13
PIN (11X20)
PIN (11X20)

09206-11017-000   0920611017000

0920611017000

Unit Price

14
BOLT

07130-06253-000  

07130-0625B-000
 0713006253000

Unit Price

14A
GASKET
GASKET

09168-06024-000   0916806024000

0916806024000

Unit Price

15
COVER, SPROCKET

11361-33D20-000   1136133D20000

1136133D20000
Not available
16
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

17
BOLT

07130-06353-000  

07130-0635B-000
 0713006353000

Unit Price

18
BOLT

07130-06603-000  

07130-0660B-000
 0713006603000

Unit Price

19
BOLT

07130-06803-000  

07130-0680B-000
 0713006803000

Unit Price

20
CAP, CLUTCH RELEASE ADJUSTER

11387-33D20-000   1138733D20000

1138733D20000
Not available
21
BOLT(6X12)

07130-06123-000  

09106-06075-000
 0713006123000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE COVER of your Suzuki of BANDIT. Let us know if you have any questions.
