CYLINDER

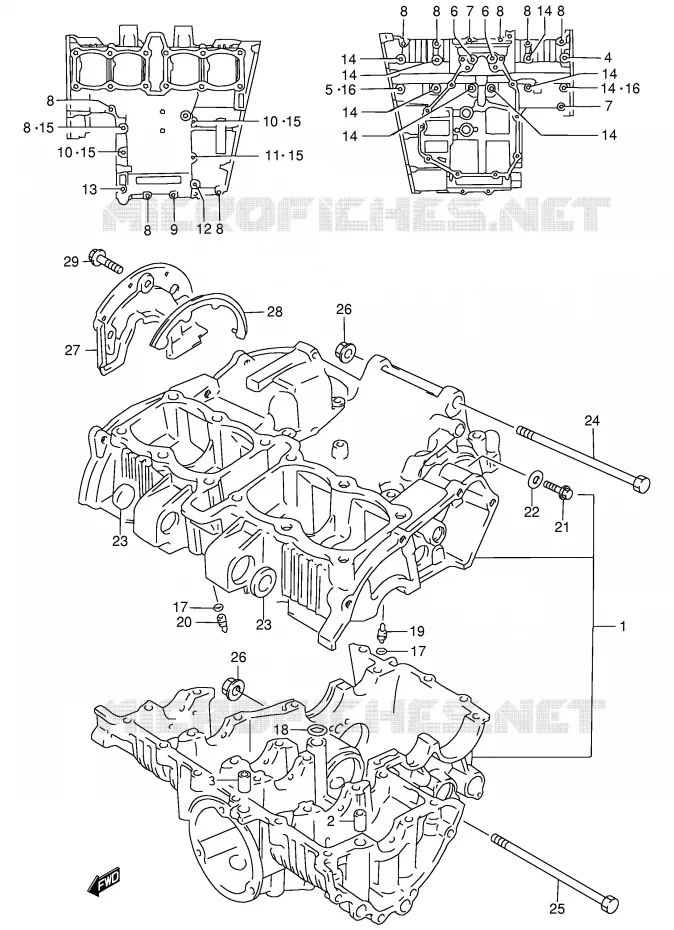

CRANKCASE FOR SUZUKI BANDIT 400 1997

CRANKCASE COVER

Item numbers

CRANKCASE SET

11301-33820-000 1130133820000

Not available

PIN (11X20)

09206-11017-000 0920611017000

$12,97

Unit Price

CLUTCH COVER PI **S1
PIN (13X22)

09206-13004-000 0920613004000

$3,97

Unit Price

BOLT (8X110)

09103-08239-000 0910308239000

Not available

BOLT
BOLT (8X105)

09103-08179-000 0910308179000

$6,97

Unit Price

BOLT

07130-08553-000

07130-0855B-000

$5,97

Unit Price

BOLT

01550-06303-000

01550-0630A-000

$3,97

Unit Price

BOLT

01550-06353-000

01550-0635B-000

$4,97

Unit Price

BOLT

01550-06453-000

01550-0645A-000

$3,97

Unit Price

BOLT

01550-06553-000

01550-0655B-000

$4,97

Unit Price

BOLT

01550-06653-000

01550-0665A-000

$4,97

Unit Price

DISCONTINUE
BOLT

01550-06703-000

Not available

BOLT

01550-08553-000

01550-0855A-000

$4,97

Unit Price

BOLT (8X95)

09103-08105-000 0910308105000

$4,97

Unit Price

GASKET, OIL GALLERY
GASKET

09168-06018-000 0916806018000

$2,97

Unit Price

GASKET, 8.2X14X1
GASKET

09168-08016-000 0916808016000

$2,97

Unit Price

O RING
O RING (D:1.2, ID:4)

09280-04004-000 0928004004000

$2,97

Unit Price

ENG OIL PUMP O RING
O RING (D:1.9, ID:13)

09280-13004-000 0928013004000

$3,97

Unit Price

JET, OIL GALLERY
JET, OIL GALLY MISSION

09493-80005-000 0949380005000

$23,97

Unit Price

JET, OIL PISTON

09493-80007-000 0949380007000

Not available

BOLT

01550-06103-000

01550-0610B-000

$3,97

Unit Price

GASKET, OIL GALLERY
GASKET

09168-06018-000 0916806018000

$2,97

Unit Price

PLUG(OD:25)
PLUG

09241-25005-000 0924125005000

$5,97

Unit Price

BOLT (10X135)

09103-10085-000 0910310085000

Not available

BOLT (10X145)

09103-10135-000 0910310135000

Not available

NUT

09159-10058-000

09159-10115-000

$5,97

Unit Price

COVER, BREATHER

11317-33D01-000 1131733D01000

Not available

GASKET

11318-33D00-000 1131833D00000

Not available

BOLT

01550-06123-000

01550-0612B-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of BANDIT. Let us know if you have any questions.
